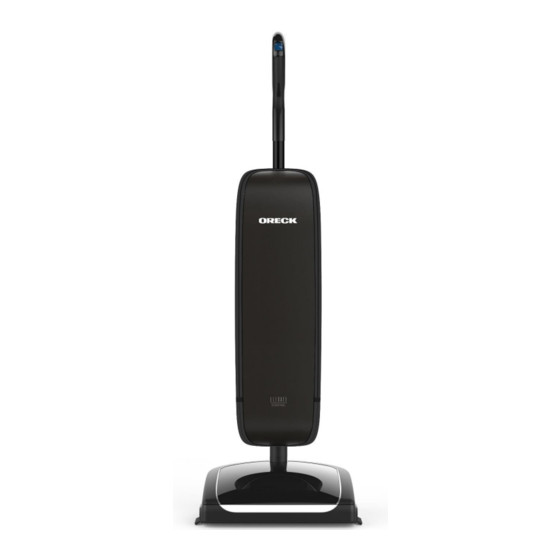

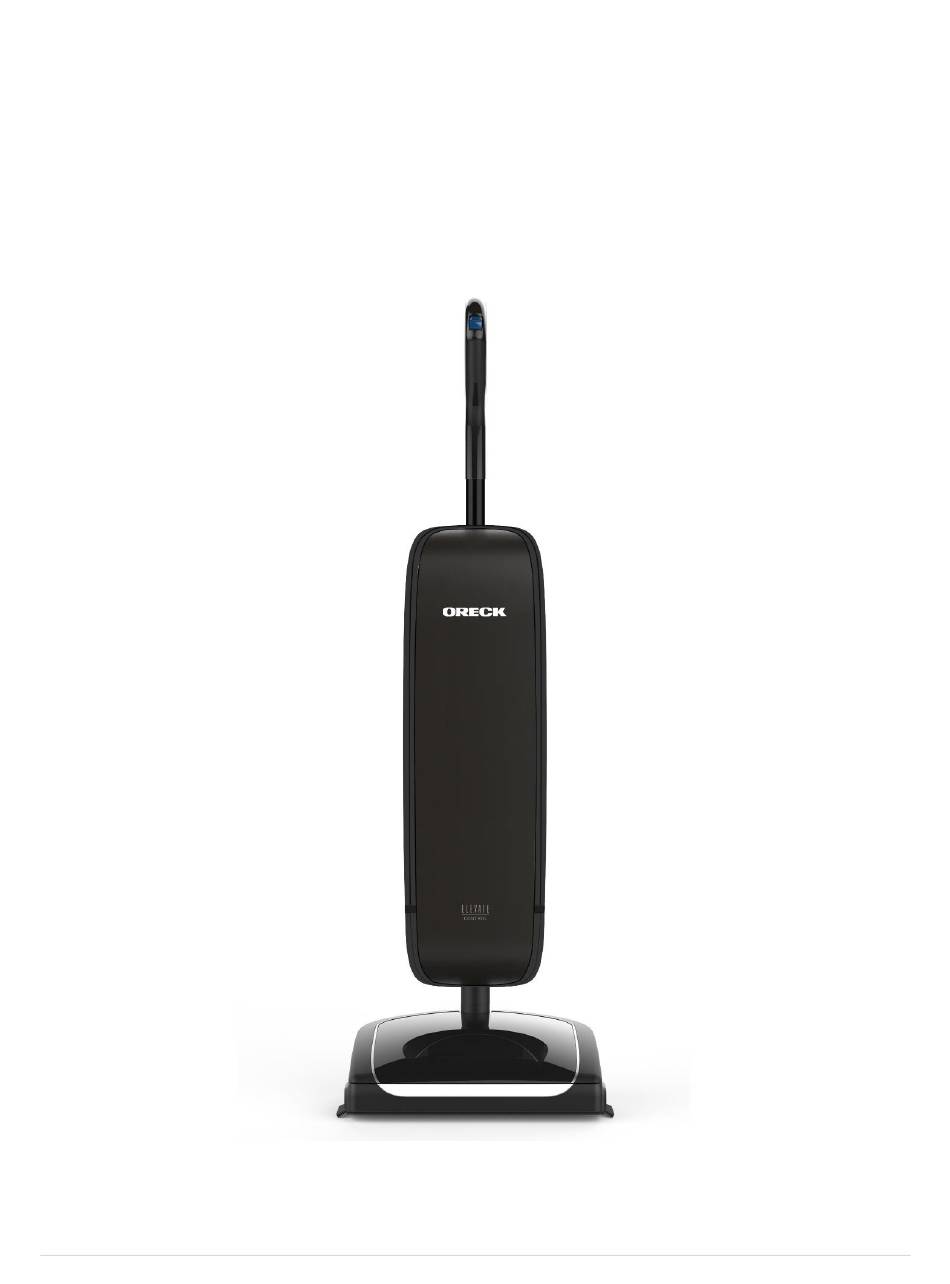

- Page 1 Service Instructions Oreck® ELEVATE Control™: UK30100PC, UK30100, UK30100COM Technical Service – April 2016 P a g e...
- Page 2 Table of contents Base Assembly - Section 1 – Page 4 Belt / Brushroll - Section 2 – Page 4 Motor / PCB - Section 3 – Page 4 / 5 Motor Assembly / Intake Pivot Assembly / Fan Housing - Section 4 – Page 5 / 6 Handle Detent - Section 5 –...
- Page 3 Exploded View P a g e...
- Page 4 1. Base Assembly 2. Belt / Brushroll a. Remove 7 screws and lift base assembly off a. Remove edge brush holder to access belt – of unit. This requires a T20 torx driver. 2 screws. Remove belt by sliding it off of the motor shaft and brushroll pulley.
- Page 5 3. Motor PCB d. Lift motor / fan housing assembly out of position. a. Motor PCB is held in position by two screws. Terminals connections are noted. e. Disconnect motor lead wires – 2 wire connectors. f. To separate motor and fan chamber assembly locate and remove fan nut by securing the armature shaft and turning the nut clockwise –...
- Page 6 Intake Pivot Assembly c. Remove two screws located in brushroll cavity – one in each front corner. a. Intake pivot assembly stocked with felt inlet seal. Both seals are available separately. d. Turn unit over and lift upward on fascia to remove.
- Page 7 b. Remove cord clip to access sixth screw and remove. c. Feed cord strain relief out of handle to c. Lift off handle cover. remove Cord Assembly. d. Remove switch button – snap fit. Power Cord e. Disconnect yellow and red lead at terminal a.
- Page 8 9. Bag Assembly a. Pull bag cardboard collar down to release plastic bag dock from connector. Remove paper bag. d. Slide bag assembly off unit. 10. Carry Handle a. Remove screw in carry handle retainer. Note: A boss was added to the rear bag dock to prevent usage of unauthorized bags.
- Page 9 11. Wiring Diagram P a g e...
- Page 10 12. Electrical troubleshooting A. Motor will not run when switch is in the on position. 1. Disconnect the power cord connector from the circuit board. 2. Check for continuity between the wide blade of the attachment cord and the white connection terminal on the circuit board.
- Page 11 b. Check power cord by checking for continuity between the wide blade on the power cord and the white lead at the terminal connection in the handle and the narrow blade on the power cord to the black lead at the terminal connection in the handle. If continuity exists go to step 4. If not, replace the power cord.
Need help?
Do you have a question about the ELEVATE Control UK30100PC and is the answer not in the manual?
Questions and answers
The vacuum is not picking up lint from the floor.
The Oreck ELEVATE Control UK30100 vacuum may not be picking up lint due to several possible reasons:
1. Clogged Filtration Bag – The vacuum should not be used without the inner filtration bag in place. A full or improperly installed bag can reduce suction.
2. Blocked Airflow – Obstructions in the hose or nozzle can limit suction power.
3. Brush Roller Belt Issue – The vacuum uses an Endurolife Belt designed for long life, but if the brush roller is not rotating properly due to debris or wear, it may not effectively lift lint.
4. Motor Overload Protection Activated – If the vacuum has shut down due to an obstruction or thick carpet, it needs to be reset.
5. Improper Power Settings – Ensure that the vacuum is switched on and functioning properly.
Checking and addressing these issues can help restore proper performance.
