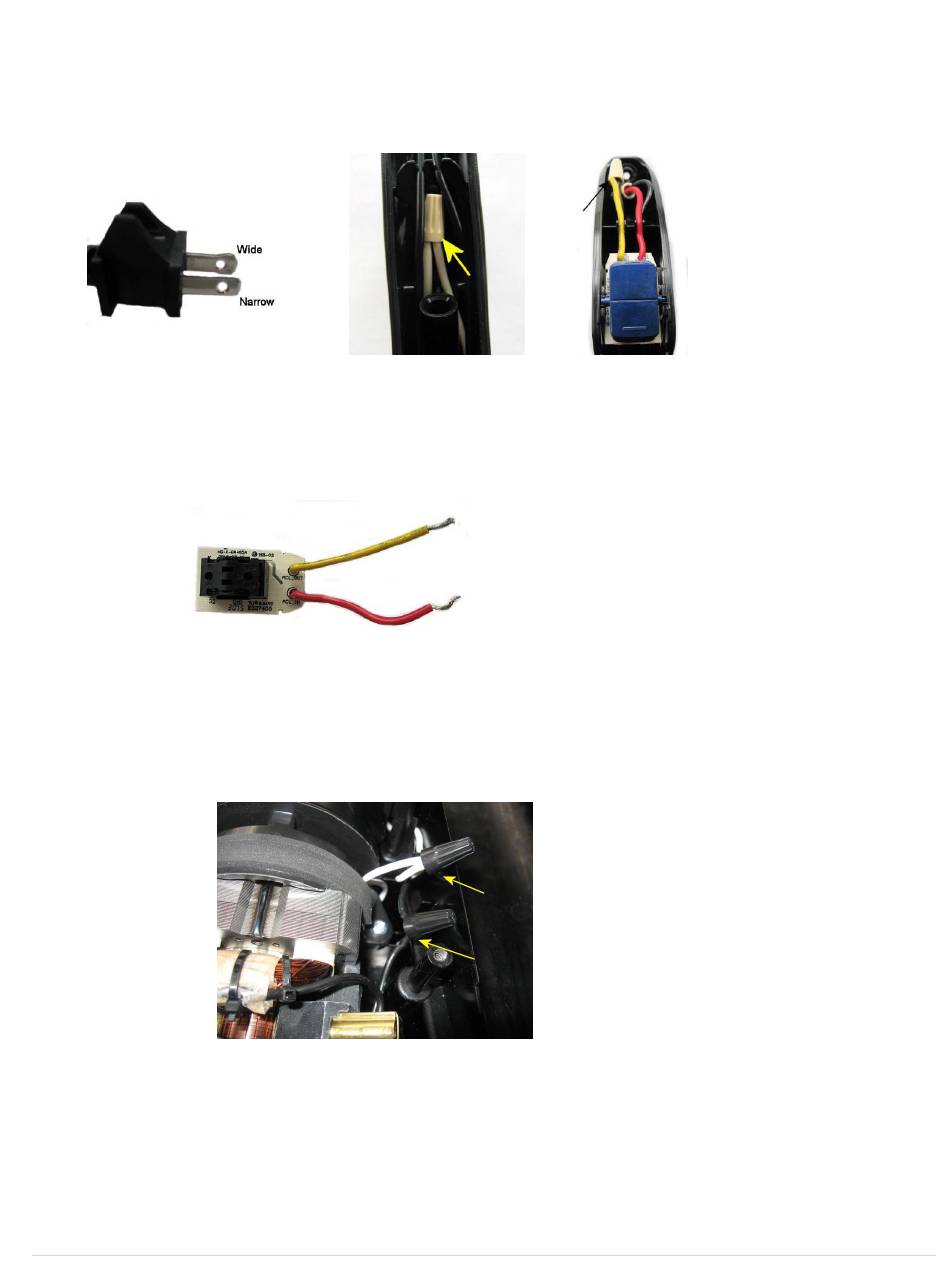

b. Check power cord by checking for continuity between the wide blade on the power cord and the
white lead at the terminal connection in the handle and the narrow blade on the power cord to the
black lead at the terminal connection in the handle. If continuity exists go to step 4. If not, replace
the power cord.
c. Check the power PCB by checking for continuity between the yellow and red lead wires. Cycle the
switch and check for continuity. If continuity exists go to step 4. If not, replace the power PCB.
4. Check voltage output from the circuit board.
a. Remove Brushroll and Belt
b. Check for voltage at black and white lead wire connections at motor.
d. Voltage should read 120VAC. If voltage exists replace motor assembly. If no voltage exists,
replace PCB.
