Operator's Manual
HIGH SPARKLE 40 Washer
Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIGH SPARKLE 40 and is the answer not in the manual?

Questions and answers

Related Manuals for Rhima HIGH SPARKLE 40

Summary of Contents for Rhima HIGH SPARKLE 40

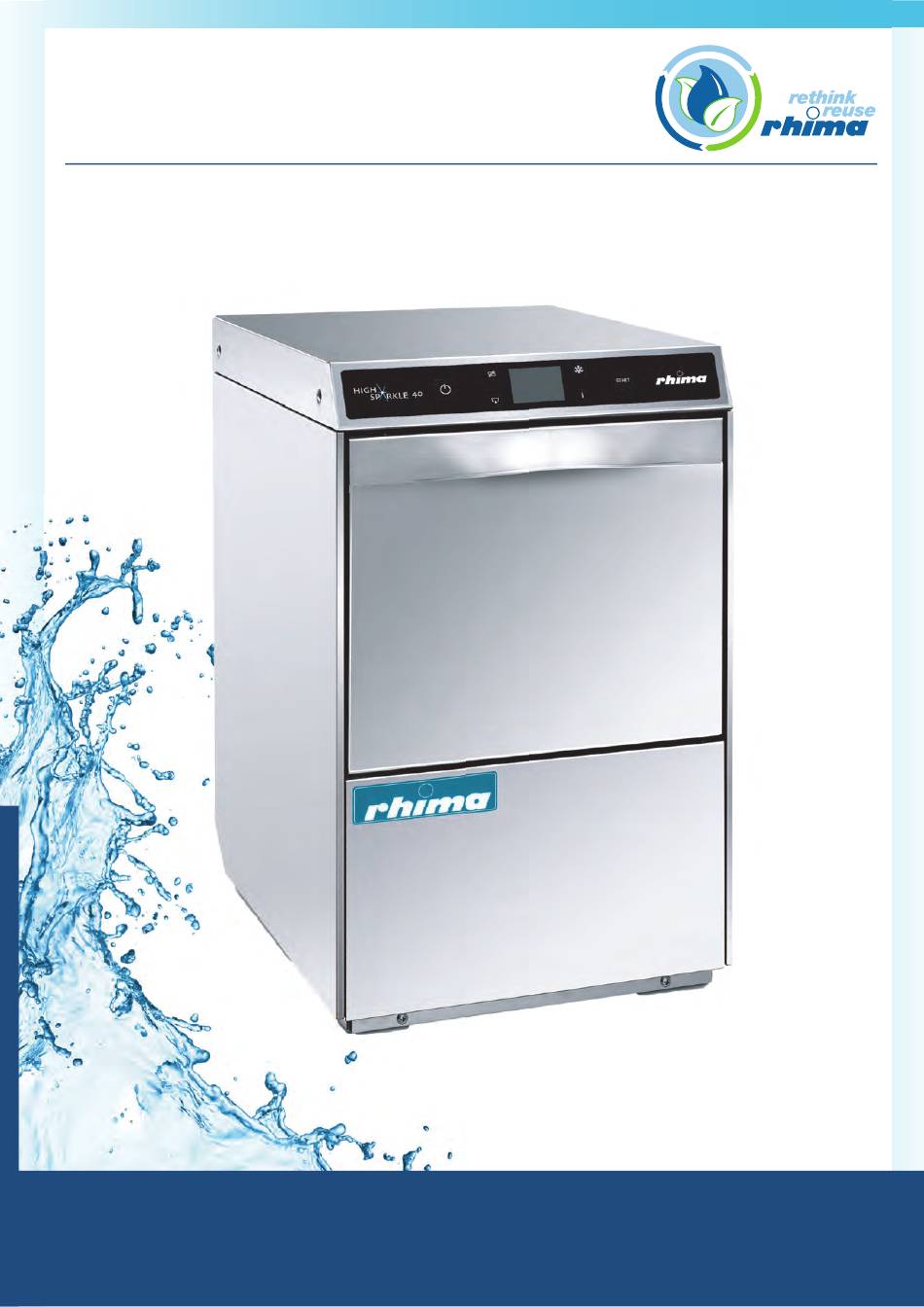

  • Page 1 Operator’s Manual HIGH SPARKLE 40 Washer Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...

  • Page 2: General Instructions

    ● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre...

  • Page 3: Electrical Installation

    ELECTRICAL INSTALLATION This appliance is intended to be connected to a 15amp electrical supply and must be earthed. PLUMBING INSTALLATION This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. for optimum performance. The water supply pressure should be a minimum 200 kPa at all times and flow rate should be at least 10 litres per minute.

  • Page 4: Control Panel And Relative Symbols

    CONTROL PANEL AND RELATIVE SYMBOLS Keys Switching – On / STAND BY key Regeneration key (optional) Drain key Extra cold rinse key (optional) Info key START key to start up cycle / select cycle Display 2.2 Display 55°C 70°C The display's indications, when machine ready, are listed below: 1) Tank status icon.

  • Page 5: Operation

    OPERATION Machine start-up • Check if the pump suction filter is properly inserted in its seat in the wash-tank bottom (see pict. 1). This filter must be cleaned every 20 wash-cycles or whenever necessary. DO NOT use the appliance without the filters. •...
  • Page 6 • Close the door. Start the cycle by pressing the key Start The display shows a percentage indicating the cycle progress. On the lower part of the display is shown the phase of the cycle (wash, drain or rinse). The key Start F turns blue.
  • Page 7 The detergent shall be the NO FOAM type, suitable for industrial dishwashers. The use of good quality liquid detergents is recommended such as those supplied by Rhima. Follow the manufacturer’s recommendations for chemical dosage, related to the local water hardness.

  • Page 8: Tank Draining

    Rinse aid use The machine has a standard rinse aid dispenser. The machine automatically dispenses the product. The rinse-aid chemical, shall be suitable for professional glass and dishwashers. It is advisable to rely on specialized retailers in the sector. Should the detergent lack, the display will show RINSE-AID LEVEL (only with optional "Sensor for Chemicals Low Level").
  • Page 9 WARNINGS: • Do not slam the door when opening and closing. • Do not put material or objects on the machine. • The machine has an IP (see serial number label on the machine) protection rating against accidental water splashes and is not protected against pressurized water jets.

  • Page 10: Daily Maintenance

    DAILY MAINTENANCE WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning system against the machine. It is recommended to contact the seller of chemicals for proper cleaning instructions, in order to have detailed indications on methods and products for the correct periodical machine sanitation. Do not use bleach or chlorine based detergents.
  • Page 11 ECOLOGICAL ASPECTS Recommendations for optimal use of energy, water and additives Use the machine fully loaded when possible: This shall prevent detergent, rinse aid, water and energy consumption waste. Detergent and rinse-aids: Use detergents and rinse-aid chemicals with high biodegradability, to best respect the environment. Verify proper dosage in relation to water hardness at least three times a year.
  • Page 12 Australia Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore:...
