Operator's Manual

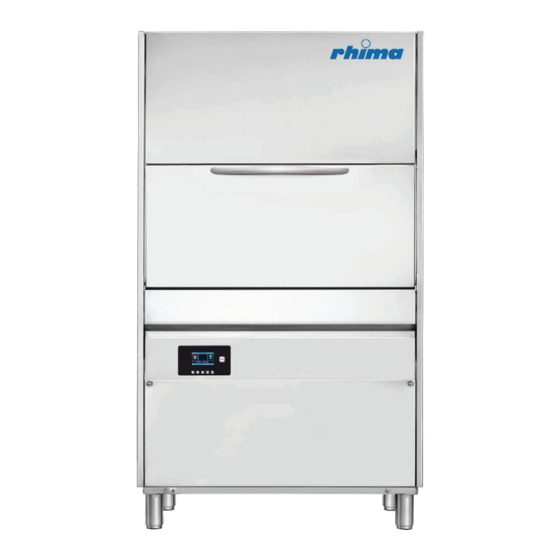

RP 3 & RP 3 HR Washer
Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rhima RP 3

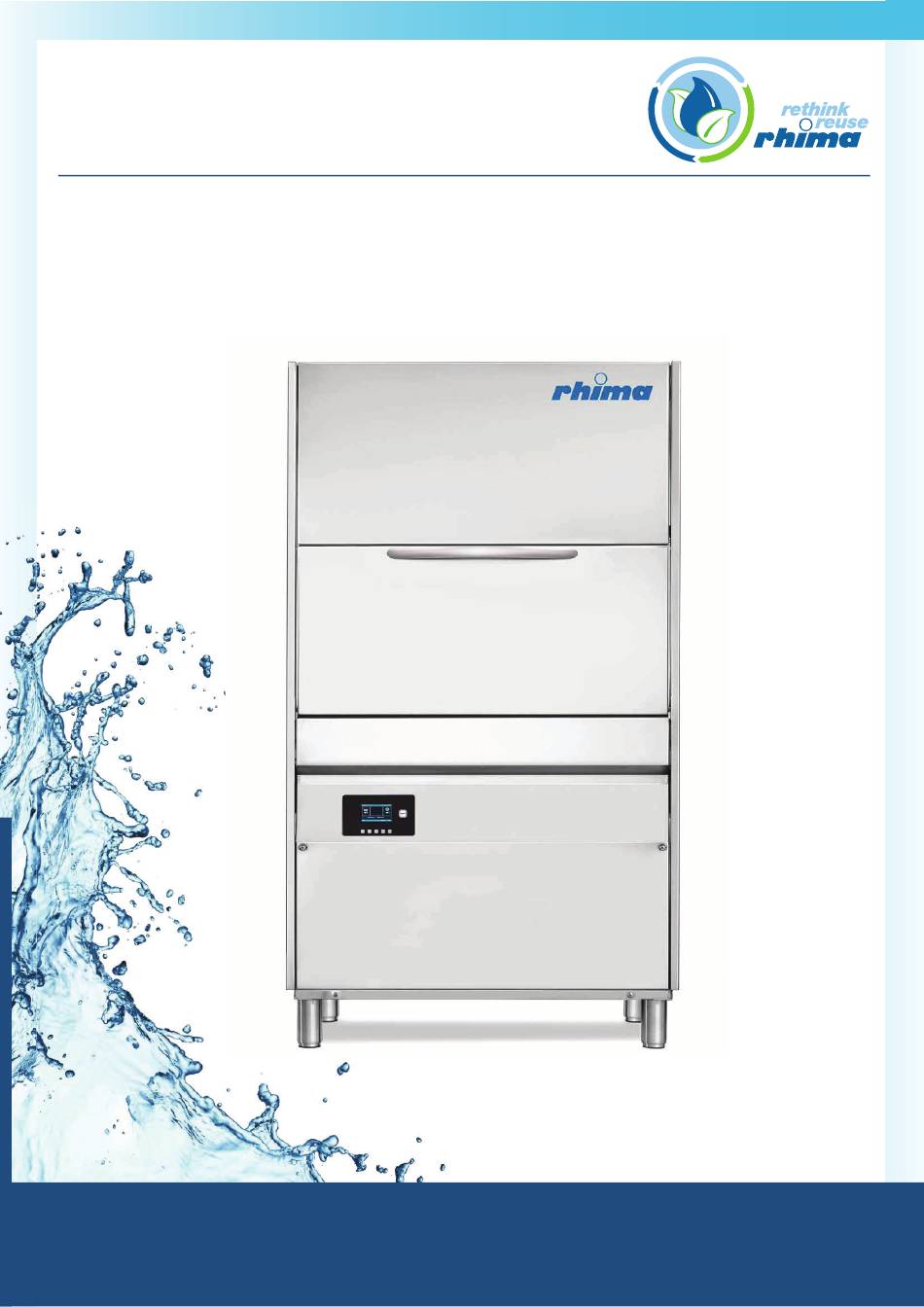

  • Page 1 Operator’s Manual RP 3 & RP 3 HR Washer Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
  • Page 2: General Instructions

    ● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre...
  • Page 3: Electrical Installation

    ELECTRICAL INSTALLATION This appliance is intended to be connected to a 3 x 20 Amps electrical supply and must be earthed. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1.
  • Page 4: Control Panel And Relative Symbols

    CONTROL PANEL AND RELATIVE SYMBOLS Cycle Start/Stop Multi-chromatic button: Firm red light: machine filling/ heating; Flashing red light: alarm signal (check the code on the alarm chart); Green light: machine ready. Select cycle; Firm blue light: machine in operation; Flashing blue light: machine in stand-by. Machine power ON/OFF (in stand-by only) Cycle Selection Cycle Selection...
  • Page 5 Operation • Insert the rack filled with objects to wash (see paragraph Objects loading). • Select the desired wash program by the keys or by keeping pressed the key. Release the key when the selected program is selected. To start the selected cycle press the key, the button will turn blue •...
  • Page 6: Switching Off

    Switching OFF • Turn the button B. The display will show STAND-BY or LOGO. 12:00 01/01/21 • At the end of the day, clean the machine (see chapter MAINTENANCE). • Shut the water valve. • Turn off the main wall switch. •...
  • Page 7: Regular Maintenance

    Use of detergent The machine can be equipped with the detergent dispenser. If provided, the machine will automatically take the needed detergent amount The detergent shall be the NO FOAM type, suitable for industrial dishwashers. The detergent must be introduced in the tank. The use of good quality liquid detergents is recommended. By request the dishwasher can be equipped with an electric detergent dispenser (always recommended).
  • Page 8: Special Maintenance

    • Reassemble the parts and reposition the wash pipes. Take extreme care to re-assemble the nozzles in the right position (open and / or closed nozzles) and that the arms are installed with the right axial angle. • Clean the tub thoroughly using specific products. •...
  • Page 9: Signals And Alarms

    ECOLOGICAL ASPECTS Recommendations for optimum use of energy, water and additives • If possible, use the machine at full load: This will avoid wasting detergent, rinse aid, water and energy. • Detergents and rinse aids: Use detergents and rinse aids having the highest biodegradability so that the environment is better respected.
  • Page 10: Alarms Description

    Alarms description Open the water supply tap and verify a proper water supply flow. Contact the Rhima Service Department. Contact the Rhima Service Department. Contact the Rhima Service Department. Contact the Rhima Service Department. Contact the Rhima Service Department. Contact the Rhima Service Department.
  • Page 11: Troubleshooting

    TROUBLESHOOTING The appliance does Solenoid-valve filter blocked Contact the Rhima Service Department. not draw water Contact the Rhima Service Department. Faulty pressure switch. Flashing of the cycle Alarms - - - lamp The washing nozzles are clogged or the washing Unscrew and clean the nozzles and the rotating arms do not rotate.
  • Page 12 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Superwash...
