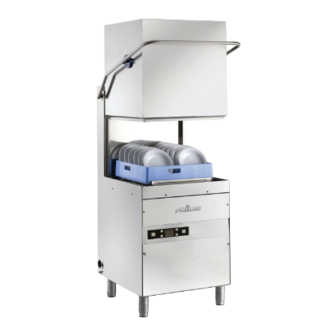

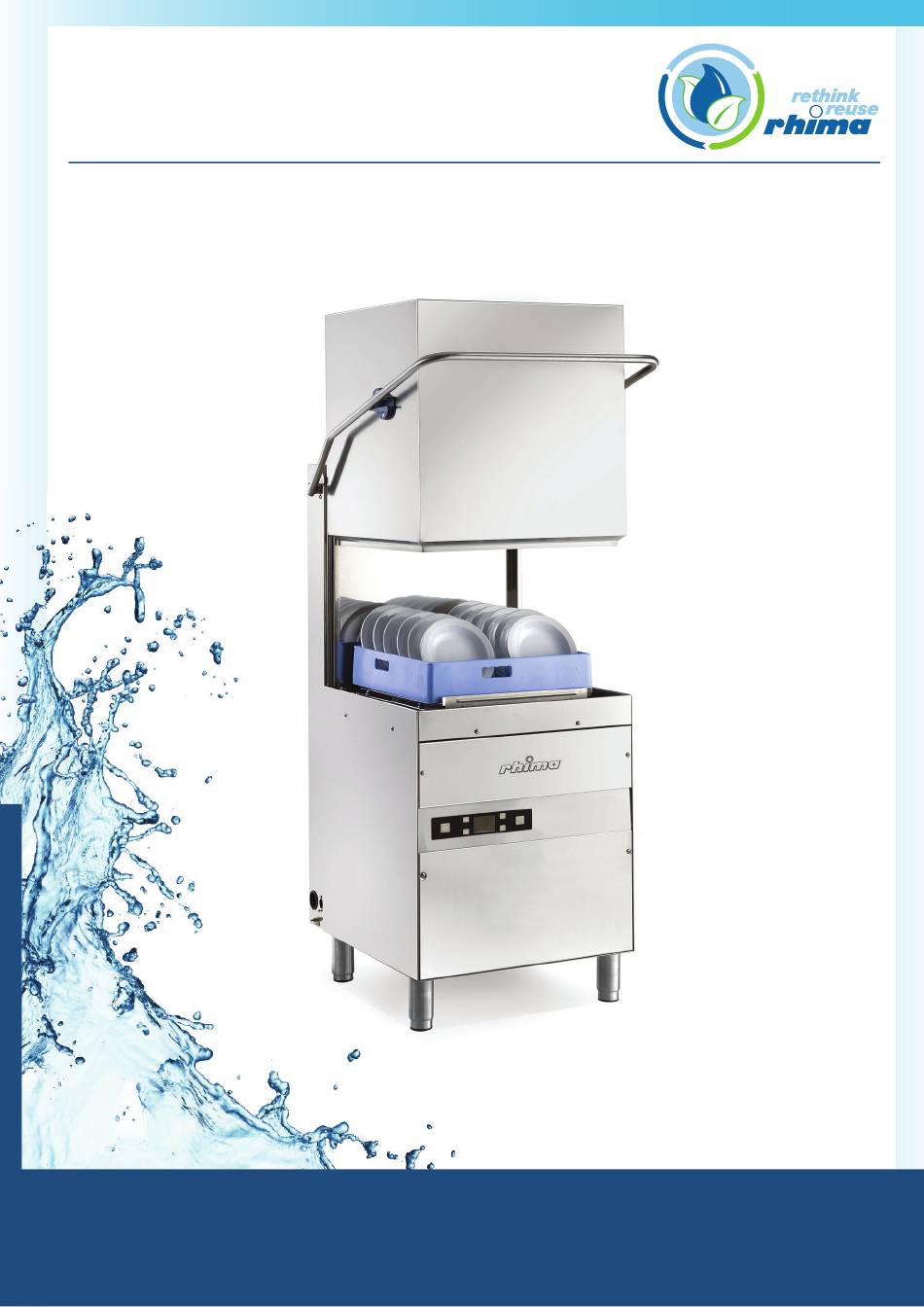

- Page 1 Operator’s Manual RH 60 & RH 60 HR Washer Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
-
Page 2: General Instructions
● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre... -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION This appliance is intended to be connected to a 3 x 16 Amps electrical supply and must be earthed. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. -
Page 4: Control Panel And Relative Symbols
CONTROL PANEL AND RELATIVE SYMBOLS A) Switching – On / STAND BY button B) Regeneration START button (not available) C) Drain key D) Extra cold rinse key (not available) E) Info key F) START push-button to start up cycle / select cycle G) Display Display The display's indications, when machine ready, are listed below:... -
Page 5: Operation
OPERATION Machine start-up Start-up • Check if the pump suction filter is properly inserted in its seat in the wash-tank bottom (see Pict. • The filter must be cleaned after every 20 wash cycles and whenever necessary. DO NOT use the appliance without the filters. - Page 6 OPTIONAL HYGIENE PLUS MODEL Available programs: Cycle code Cycle name Icon Total time* Notes Partial drain cycle with CUSTOM adjustable time and temperatures Total drain cycle with wash temperature at HYGIENE PLUS 180" *** 75 °C and rinse temperature at 90 °C Partial drain cycle with wash temperature at * "...
- Page 7 Switching OFF • Keep pressed the key until it lights in red. • Drain completely the wash tank by pressing the key which activates the drain pump (see paragraph Drain pump system. • At the end of the day, clean the machine (see chapter MAINTENANCE). •...
-
Page 8: Tank Draining
Use of detergent The machine has a standard detergent dispenser. The machine automatically sucks the detergent. The detergent shall be the NO FOAM type, suitable for industrial dishwashers. The use of good quality liquid detergents is recommended. The correct amount will be suggested by the product manufacturer according to the water hardness. A correct amount of detergent is very important for a successful wash. - Page 9 WARNINGS • Accompany the hood in opening and closing. • Do not put material or objects on the machine. • The machine has an IP (see serial number label on the machine) protection rating against accidental water splashes and is not protected against pressurized water jets. Pressure-cleaning systems shall, therefore, not be used on this machine.
-
Page 10: Maintenance
MAINTENANCE Regular Maintenance WARNING: The machine is not protected against pressure water jets cleaners, therefore do not use such cleaning systems on the cabinet. Contact your cleaning products retailer for detailed instructions on the methods and products to use for periodic sanitizing of your appliance. -
Page 11: Compliance With Hygiene Regulations And H.a.c.c.p
COMPLIANCE WITH HYGIENE REGULATIONS AND H.A.C.C.P. • When starting the machine ON, no wash-cycle will be starting until the set boiler and wash-tank temperatures are reached. During operation, the machine will not start the rinse cycle till the set boiler temperature is reached. •... -
Page 12: Signals And Alarms
SIGNALS AND ALARMS Signals The signals messages are displayed, based upon their meaning. They do not block the machine. The signals remain visible until the operator executes the necessary actions. Signals with machine in stand-by mode: When PRESS WATER SOFTENER REGENERATION KEY appears on the display it means that a total regeneration is needed (only on machines equipped with the optional Water Softner). - Page 13 Cause: The machine boiler fill-up was not achieved in the maximum foreseen time limit. Remedies: Open the water supply valve and verify a proper water supply flow. Contact the Rhima Service Department. B2 BOILER PROBE FAIL. : Cause: The circuit board does not detect the boiler sensor.
- Page 14 Cause: The tank pressure-switch detects an excessively high level of water in the tank. Remedies: Drain and load again the tank. Contact the Rhima Service Department. Z6 TANK LOW LEVEL : Cause: The tank pressure-switch detects a too low level of water in the tank.
-
Page 15: Troubleshooting
Replace the pressure switch (call the Rhima Faulty pressure switch Service Department) Flashing of the See chapter ALARMS... - Page 16 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Mediwash...
