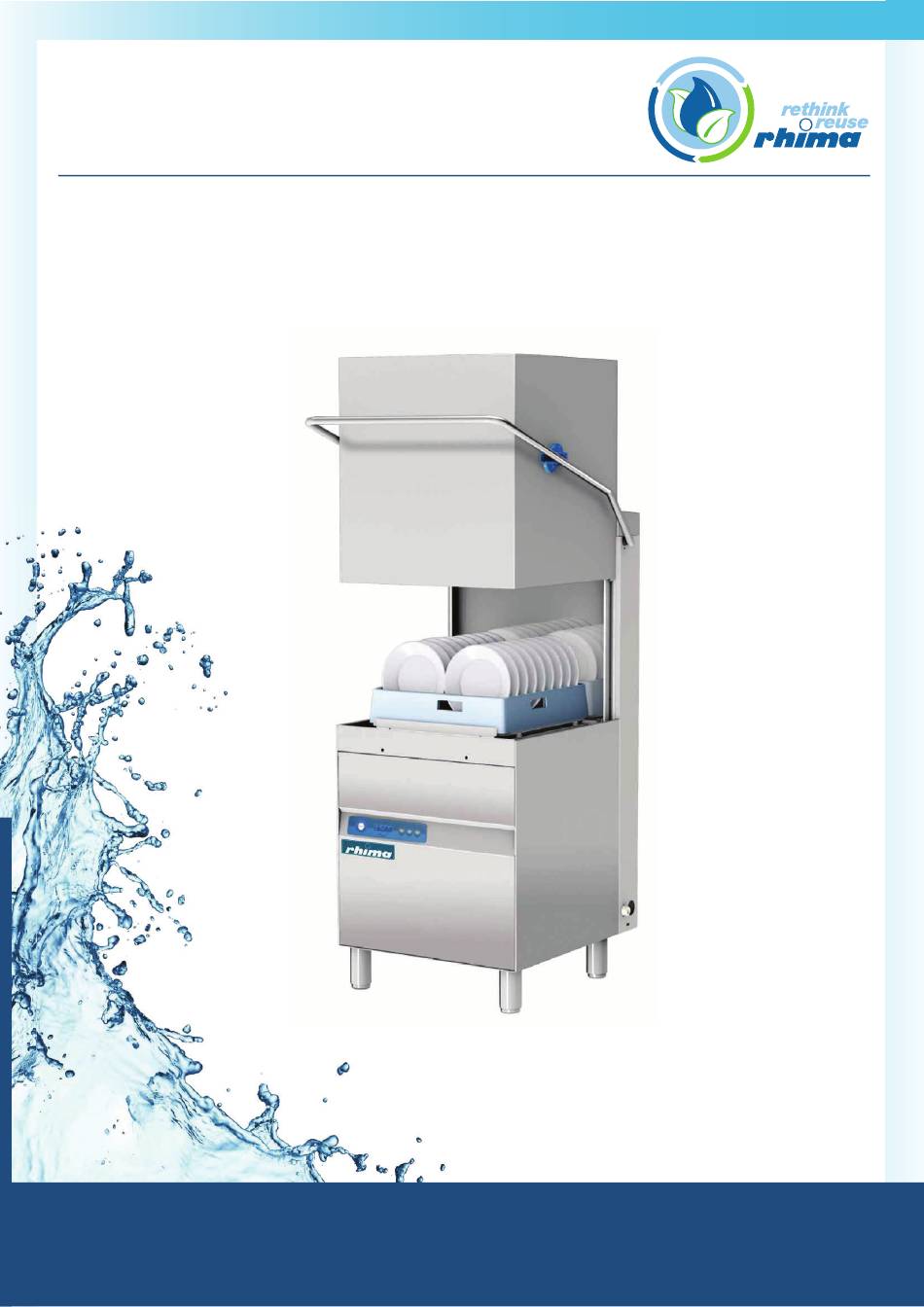

- Page 1 Operator’s Manual RH 60 & RH 60 HR Washer Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
-
Page 2: General Instructions
● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre... -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION This appliance is intended to be connected to a 3 x 16 Amp electrical supply and must be earthed. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. -
Page 4: Operation
CONTROL PANEL AND RELATIVE SYMBOLS OPERATION START push-button to start up cycle / select cycle Display Switching – On / STAND BY button Regeneration push-button (Not Available) Drain Push-button OPERATION Machine start-up Pict. 1 Start-up • Check if the pump suction filter is properly inserted in its seat in the wash-tank bottom (see pict 2). -
Page 5: Select Cycle
CYCLE SHORT CYCLE MEDIUM CYCLE LONG CYCLE INTENSIVE CYCLE XX INTENSIVE • Close the hood; the wash cycle starts automatically. The button "A" will light in blue. All Hood wash-time long the display will read the wash-tank temperature and the boiler temperature. Below the temperatures indications line-bar is displayed to show the progression of the wash-cycle. -
Page 6: Detergent Use
Note the following recommendations: • Crockery and cutlery should not be inserted inside one another, covering each other. • Place the crockery in order to all surfaces can be reached by water; otherwise the dishes are not washed. • Make sure all the crockery are in a stable position and that the hollow containers don't overturn (cups, glasses, bowls, etc.) . - Page 7 Rinse aid use The machine has a standard rinse aid dispenser. The machine automatically sucks the product. The rinse-aid chemical, shall be suitable for professional glass and dishwashers. The recommended amount is 2-5 cm of product measured on the suction hose. 1 cm of the product drawn into the hose is equal to about 0.13g.
- Page 8 WARNINGS: • Do not slam the hood when opening and closing. • Do not put material or objects on the hood. • The machine has an IPX3 protection rating against accidental water splashes and is not protected against pressurized water jets. Pressure-cleaning systems shall, therefore, not be used on this machine.
-
Page 9: Routine Maintenance
MAINTENANCE Routine maintenance WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning system against the machine. It is recommended to contact the seller of chemicals for proper cleaning instructions, in order to have detailed indications on methods and products for the correct perio- dical machine sanitation. -
Page 10: Signals And Alarms
SELF-CLEANING CYCLE OVER the machine ended the self-cleaning cycle. Alarms The alarm messages are displayed, based upon their meaning. Contact the Rhima Service Department Contact the Rhima Service Department Contact the Rhima Service Department Contact the Rhima Service Department Contact the Rhima Service Department... -
Page 11: Troubleshooting
Streaks and spots on Too much rinse-aid chemical. Reduce the rinse aid amount. Contact the Rhima objects. Service Department. Too hard water. Check the water quality. Water must not exceed 8°f in hardness. - Page 12 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Mediwash...
