Related Manuals for Rhima RH 50
Summary of Contents for Rhima RH 50

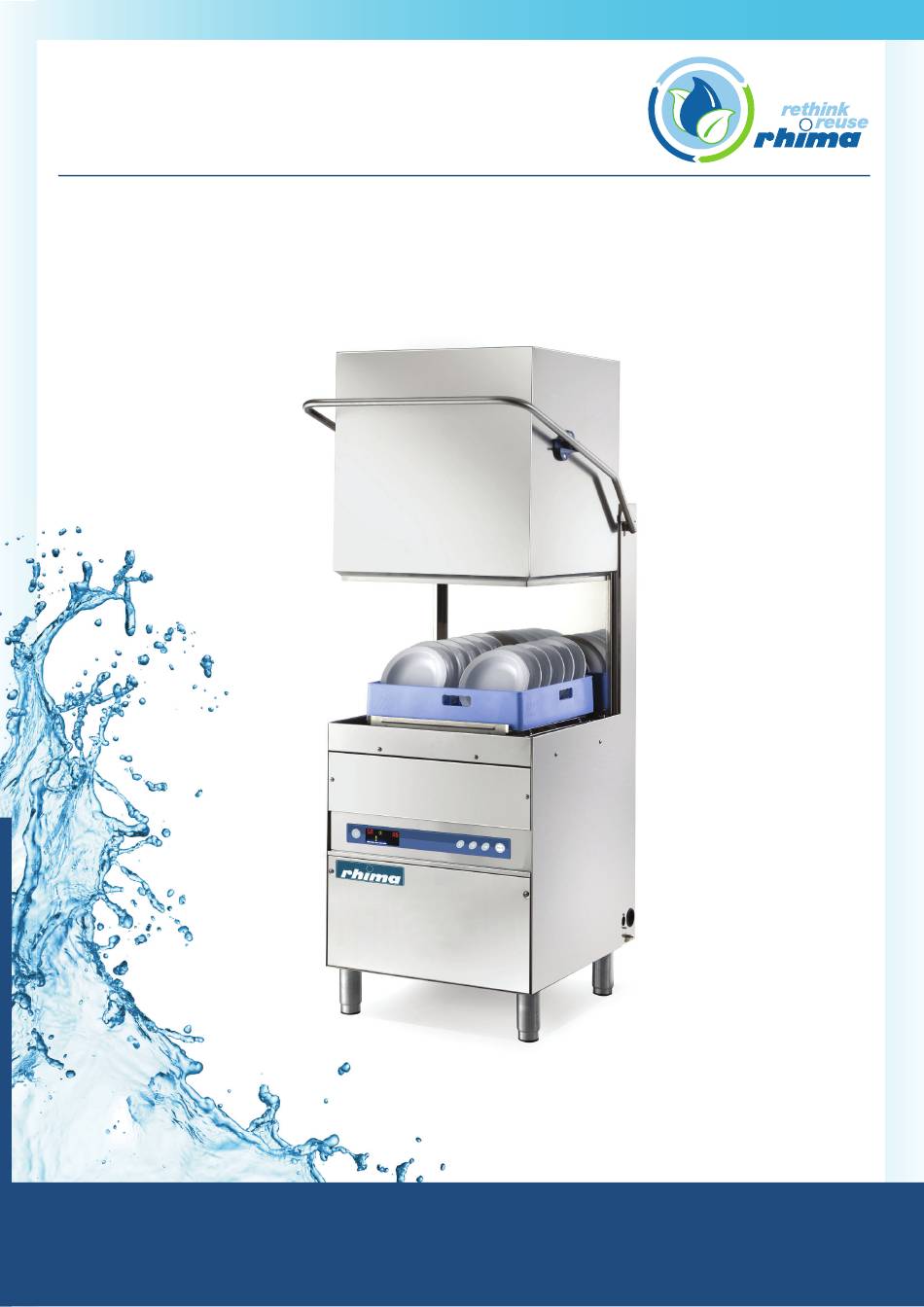

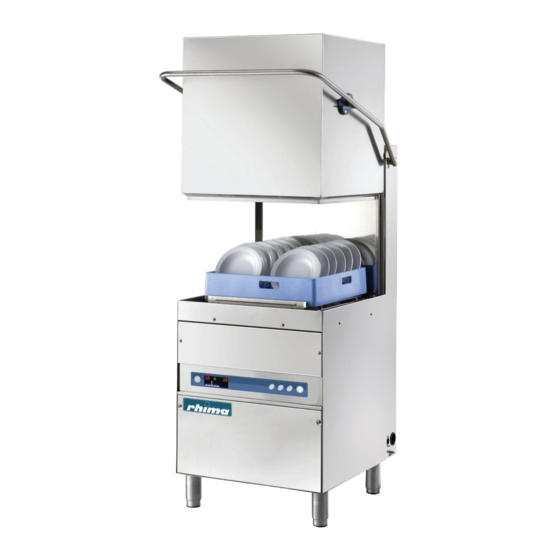

- Page 1 Operator’s Manual RH 50 Washer Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
-
Page 2: General Instructions
● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre... -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION This appliance is intended to be connected to a 3 x 16 Amps electrical supply and must be earthed. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. -
Page 4: Control Panel And Relative Symbols
CONTROL PANEL AND RELATIVE SYMBOLS pict. 1 pict. 2 Switching - On / STAND BY button Regeneration push-button (Not Available) Supplementary cold rinse push-button (Not Available) Drain push-button (Not Available) START push-button to start up cycle / select cycle Tank temperature display Washing type 1 (60 seconds) Washing type 2 (90 seconds) Washing type 3 (120 seconds) -
Page 5: Operation
OPERATION • Check that the filter is correctly fitted in its seat (pict. 3-4). Filter must be cleaned every 20 wash-cycles or whenever necessary. DO NOT use the appliance without the filter. • Insert the overflow tube in the special seat inside the sump (pict. 3-4). •... - Page 6 • Insert the rack filled with objects to wash. The objects must be correctly placed in the rack (see par. Cutlery and crockery loading • Select the wanted washing cycle (1 - 2 - 3 - 4) by pushing the button START E (pict.
- Page 7 Cutlery and crockery loading Before cutlery and crockery loading in the machine, coarsely clean them from the leftover food. It isn't necessary to rinse the cutlery an crockery under water. ATTENTION: Do not wash articles polluted with petrol, paint, chips of steel or iron, ash, sand, wax, lubricant grease.
-
Page 8: Detergent Use
Detergent use The detergent shall be the NO FOAM type, suitable for industrial dishwashers. The use of good quality liquid detergents is recommended. The detergent shall be placed in the sump. Follow manufacturer recommendations for dosage. The machine can be ordered with an adjustable automatic detergent dispenser (always recommended). -
Page 9: Routine Maintenance
MAINTENANCE WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning system against the machine. It is recommended to contact seller for cleaning instructions, in order to have detailed indications on methods and products for the correct periodical machine sanitation. Do not use bleach or chlorine based detergents. - Page 10 Contact the Rhima Service Department. Open the water supply valve and check the overflow pipe Contact the Rhima Service Department. Contact the Rhima Service Department. Check the overflow pipe. Contact the Rhima Service Department. G FAILURE Contact the Rhima Service Department. ECOLOGICAL ASPECTS Recommendations for optimal use of energy, water and additives Chemical dosing: A pre-set (by the manufacturer) quantity of Chemical is injected in the resins at each cycle.
-
Page 11: Troubleshooting
Streaks and spots on Too much rinse-aid chemical. Reduce the rinse aid amount. Contact the Rhima objects. Service Department. Too hard water. Check the water quality. Water must not exceed 8°f in hardness. - Page 12 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Mediwash...
