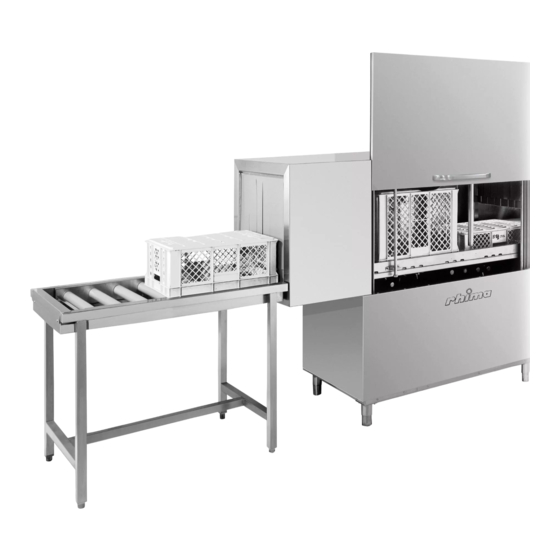

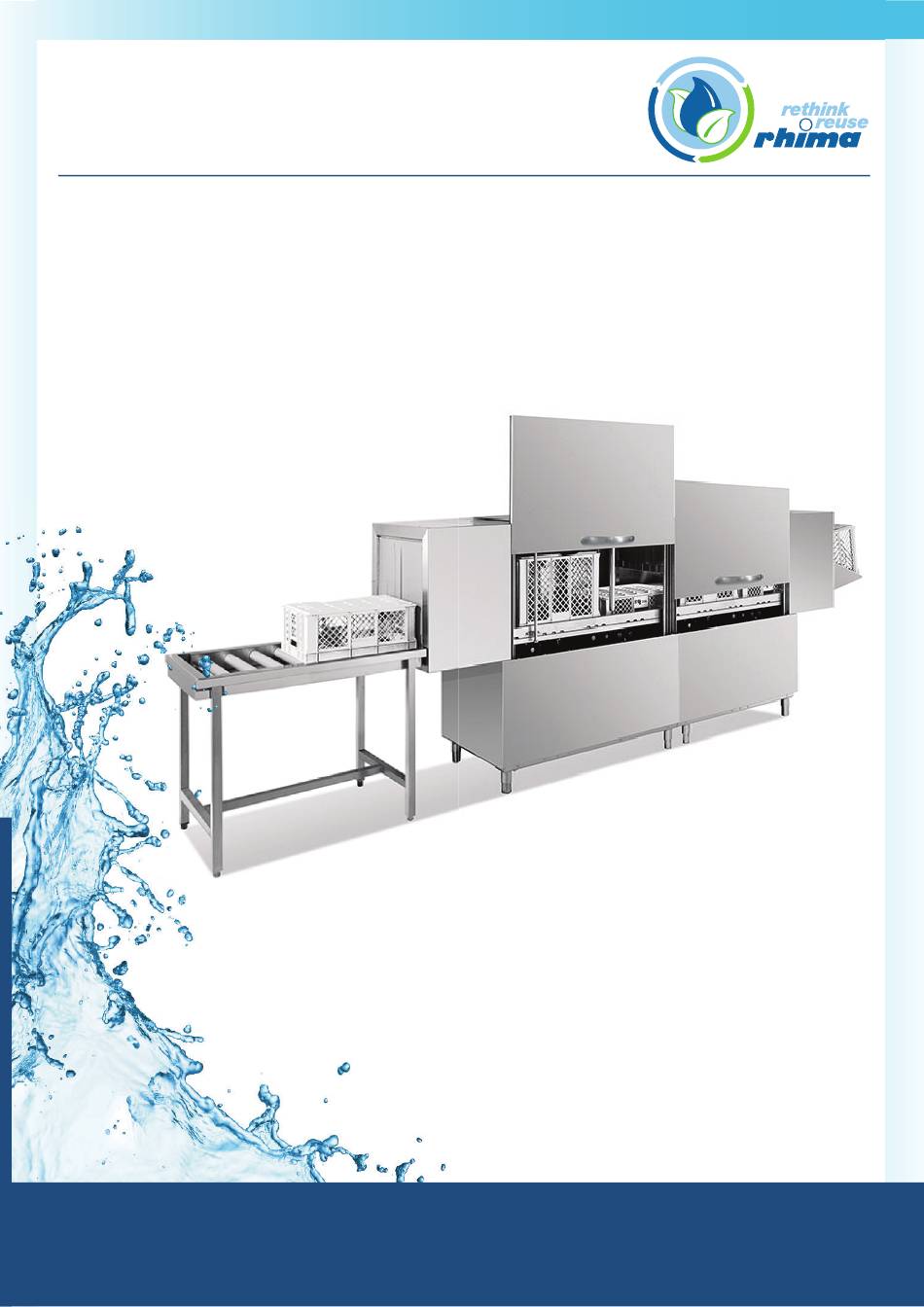

- Page 1 Operator’s Manual RC231, RC231 SPECIAL, RC301, RC401 Washers Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
-
Page 2: General Instructions
● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre... -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION This appliance must be connected to an earthed 3-phase electrical switched outlet of an appropriate rating. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. -
Page 4: Machine Description
MACHINE DESCRIPTION Description of the machine, its accessories and its guards Machine description Refer to annexes for the technical data of the machines. Example: MACHINE IN RIGHT EXECUTION pict. 1 - SPLASH GUARD - PRE-WASH - WASH + RINSE - CONTROL PANEL - DRYER - EMERGENCY BUTTON - HEAT RECOVERY/STEAM CONDENSER/HEAT RECOVERY WITH HEAT PUMP... -
Page 5: Auto Timer
This machine is built with high quality materials in particular AISI 304 stainless steel (AISI 316 for boilers and tanks) with a wall thickness to ensure a long lifetime. Pre-wash module (the presence depends on the model chosen): a preliminary washing is carried out with low temp- erature thermostatically controlled to melt the alimentary residuals and avoid the proteins denaturation. - Page 6 CONTROL PANEL AND RELATED SYMBOLS - Display 1 A: START / STOP key. Function key. B: ON / OFF key. C and D: Scrolling keys (▼ / ▲, - / E: INFO key. F1: Display with scrolling text F2: Scrolling LEDs bar MACHINE IN STAND-BY - Display 2 B: ON / OFF key with...
- Page 7 LIGHTS (see paragraph Display 1 (Previous page)). Flashing green: machine ON and in operation. Still green: machine ON in energy saving mode (see paragraph Autotimer (Page Green: tanks filled. Yellow: baskets limit switch activated. Yellow: tank heating activated. Still yellow: boiler heating activated. Flashing yellow: intermittent boiler heating activated.
- Page 8 WARNING: In case a dangerous situation occurs, push the emergency button F. The towing system, pumps and heaters turn off. Before restarting the appliance, check if the emergency is over. The emergency button rearmament does not start the machine but it position the appliance in stand-by. The emergency button should not be used as usual machine switch off...
-
Page 9: Using Detergent
If the machine is equipped with an upper loading system, the baskets must be loaded one by one. Entering into the machine BASKET BASKET BASKET the baskets have to hook the basket runners properly (see ONE BY ONE !!! pict. 5). BASKET BASKET Basket dimensions:... -
Page 10: Regular Maintenance
MAINTENANCE WARNING: The machine including the electrical cabinet is not protected against pressure water jets, therefore avoid the use of this type of cleaning. It is also suggested to contact cleaning product dealers for detailed information about methods and products for a periodical sanitizing of the machine. -
Page 11: Environmental Aspects
Special Maintenance - Heat Recovery with heat pump optional Every two months the Heat Recovery should be checked by qualified Service Personnel to: • Clean the finned exchangers inside the Heat Recovery. • Check the heat pump's flow is properly charged. Special Maintenance - Heat Recovery Every three months the Heat Recovery should be checked by qualified Service Personnel to: •... - Page 12 SIGNALS AND ALARMS - Display 4 During the operation, the machine visualises the current status of the machine, the alarms and other situations that READY TO S need the operator attention. Example: machine ready to start display notification: Signals - Display 5 The signal messages are displayed and signalized with a beep.
- Page 13 Rhima Service Department. RINSE LOW TEMPERATURE Please make sure that rinse arms and nozzles are in the right position. Should the alarm persist, please contact the Rhima Service Department. WASH TANKS FILLING FAILURE Please check that water inlet connection is working. Please turn...
- Page 14 Always use a non-foaming detergent. Check the objects high detergent and rinse-aid dosages and reduce them if necessary. Contact the Rhima Service Department. During wash cycle the machine Check overflow/drain pipe is correctly Remove and correctly reposition the overflow/drain stops and draws water seated and/or seal is not damaged pipe.
-
Page 15: Heat Recovery
Dirty steam coil Should the alarm persist, please contact the Rhima Service Department to clean the Heat Recovery. The ventilation motor is damaged Contact the Rhima Service Department The objects are not dried Insufficient rinse-aid dosage Verify the rinse-aid dosage and increase it, if needed. - Page 16 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Superwash...
