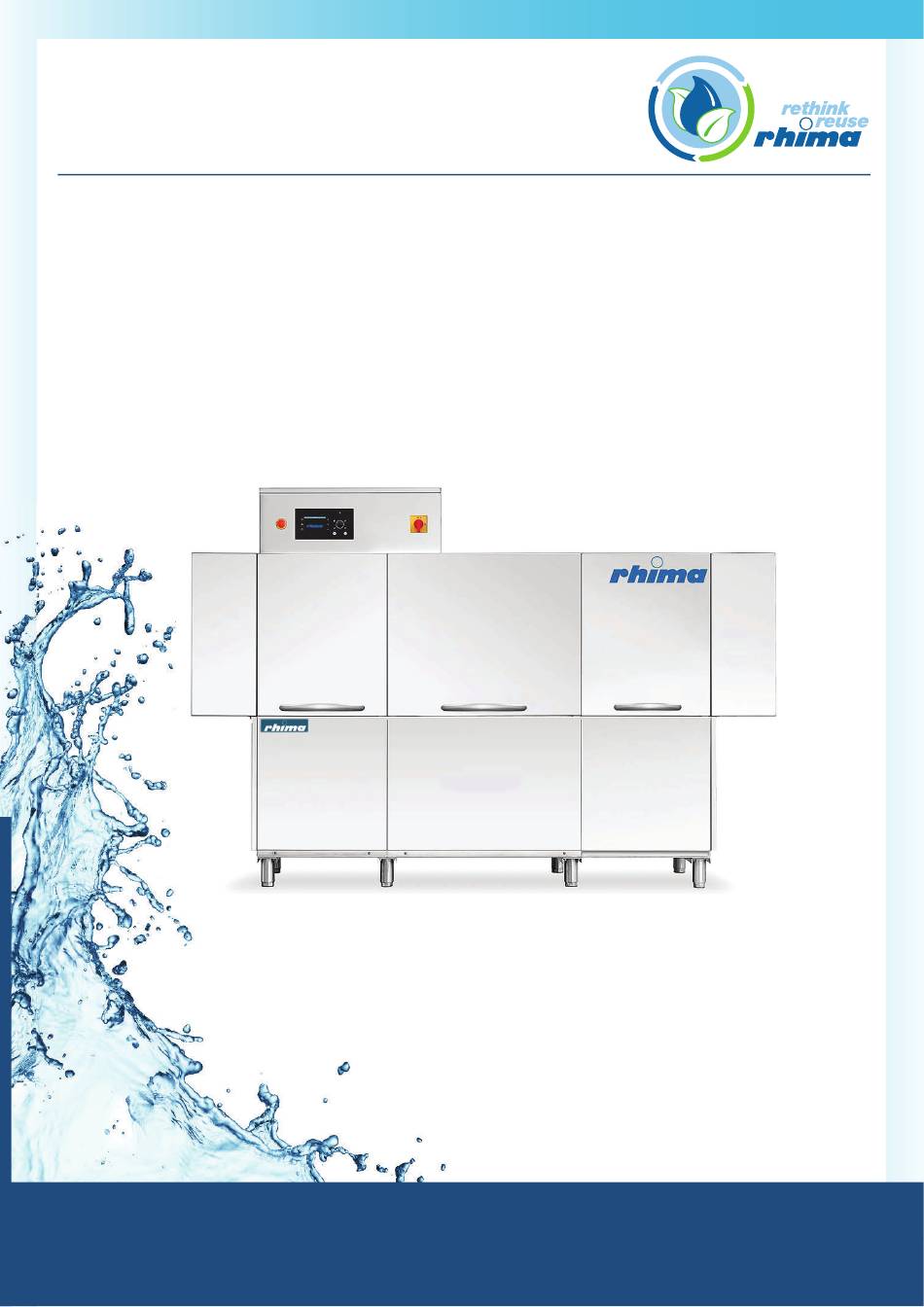

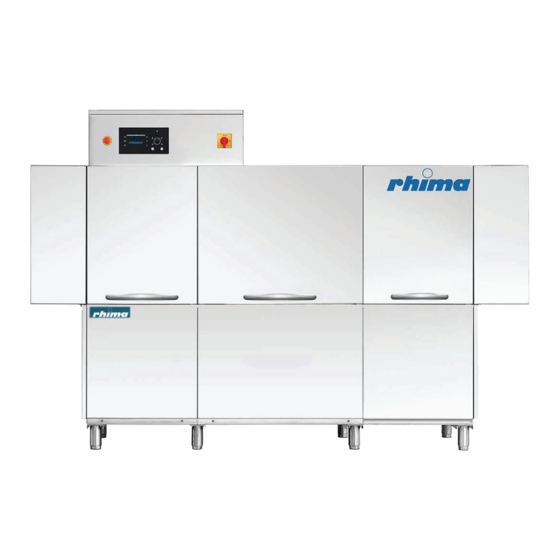

- Page 1 Operator’s Manual RR211, RR270, RR300, RR390 PRO Rack Conveyor Washers Australia Tel: 1300 347 944 | New Zealand Tel: 0800 902 054 | Singapore Tel: +65 9107 8943...
-
Page 2: General Instructions
● Do not attempt to repair the appliance. Repairs made by unqualified persons may cause further damage and will void warranty. ● Repairs and servicing of this appliance must be carried out by Rhima personnel only. IMPORTANT CUSTOMER INFORMATION ● To request a service, detergents or rinse additive contact your local Rhima Service centre... -
Page 3: Electrical Installation
ELECTRICAL INSTALLATION This appliance must be connected to an earthed 3-phase electrical switched outlet of an appropriate rating. PLUMBING INSTALLATION The Australian installation shall be in accordance with The Plumbing Code of Australia (PCA). This appliance should be connected to a hot water supply (Max 65°C ) for in accordance with Australian Standard AS/NZS 3500.1. -
Page 4: Machine Description
MACHINE DESCRIPTION Description of the machine, its accessories and its guards Machine description Refer to annexes for the technical data of the machines. pic. 4 Example: MACHINE IN RIGHT EXECUTION - SPLASH GUARD - DRYER - AUTOMATIC SHOWER WITH DRAWER STRAINER - EMERGENCY BUTTON - PRE-WASH - HEAT RECOVERY/STEAM CONDENSER/HEAT... -
Page 5: Auto Timer
Wash module(s): a proper washing of the crockery is performed with temperature thermostatically controlled. Rinse module: a pre-rinse is performed that removes most of the detergent, then a final rinse is performed with high temperature thermostatically controlled. Autotimer: the Autotimer function (activated by default) allows stopping the machine if it is in start-mode but not operating at the moment. - Page 6 CONTROL PANEL AND RELATED SYMBOLS Display TFT back lit. 2: START key green backlit (not backlit: stand-by mode) 3: STOP key red backlit 4: ON / OFF key. 5 and 6: Scrolling keys ( , - / 7: TEMPERATURES 8: INFO key.
- Page 7 MACHINE IN STAND-BY MODE 11:30 STAND-BY 4: ON / OFF key with function. To turn the machine ON. 8: INFO key. Provides additional information about the current status of the machine. 12: SELF-CLEANING key. Backlit key only when it is possible to activate SELF-CLEANING option.
- Page 8 FUNCTIONING OF THE MACHINE Machine start-up • Check that the over flow pipes are correctly inserted. • Check if the surface filters are in their seats. Check that the washing and rinsing arms are properly inserted, as well as the curtains Note: the long and narrow curtains are to be put at the entry and exit;...
- Page 9 It is forbidden to remove the basket from the machine before it has come out of the tunnel and to insert hands or arms inside the machine when it is in movement (see pic. 5). Note: Always turn the machine off before inserting your hands or arms inside the tunnel.
- Page 10 Dishes and cutlery loading Before loading the dishes it is necessary to carry out a proper cleaning off of the food residuals. It is not necessary to rinse the dishes with water before the loading. WARNING: Do not wash items contaminated by petrol, paint, pieces of steel or iron, ash, sand, wax, lubricating grease.
- Page 11 pic. 6 pic. 7 WARNINGS: • Do not slam the doors when opening and closing. • Do not put material or objects on the machine. • The water used for the washing and the rinsing is not potable because of the presence of chemical additives. In case of contact with skin or eyes wash them immediately with plenty of water and check the safety instructions of the detergent manufacturer.
-
Page 12: Using Detergent
DETERGENTS Using detergent The detergent must be of good quality, of NON-FOAMING type, specifi c for the mechanical washing of dishes. The use of liquid detergents is recommended. The dosing has to be done following the recommendations of the detergent manufacturer and in accordance with the water and dishes characteristics. -
Page 13: Routine Maintenance
MAINTENANCE WARNING: The machine is not protected against pressure water jets, therefore avoid the use of this type of cleaning system on the cabinet. It is also suggested to contact cleaning product dealers for detailed information about methods and products for a periodical sanitizing of the machine. -
Page 14: Environmental Aspects
Extraordinary Maintenance – by qualified Service Personnel only Once or twice per year, the machine should be checked by qualifi ed Service Personnel: • To remove scaling from the heating elements. • To check the status and the tightness of all gaskets. •... -
Page 15: Signals And Alarms
ECOLOGICAL ASPECTS Recommendations for optimum use of energy, water and additives If possible, use the machine at full load: This will avoid wasting detergent, rinse aid, water and energy. Detergents and rinse aids: Use detergents and rinse aids having the highest biodegradability so that the environment is better respected. - Page 16 When DOOR OPEN appears on the display it means that you are trying an operation that cannot be done with the door opened or that you opened the door and interrupted a cycle in progress. When DRAWER OPEN appears on the display it means that you are trying an operation that cannot be done with the drawer opened or that you opened the drawer and interrupted a cycle in progress.
-
Page 17: Alarms Description
Alarms description Alphanumeric abbreviation Alarm description ALARM BOILER 1 PROBE FAILURE ALARM BOILER 1 HEATING FAILURE ALARM BOILER 1 OVERTEMPERATURE ALARM RINSE LOW TEMPERATURE ALARM PRE-RINSE FILLING FAILURE ALARM PRE-RINSE DRAINING FAILURE ALARM PRE-RINSE PUMP THERMAL PROT. ALARM WASH TANKS FILLING FAILURE ALARM WASH1 PROBE FAILURE ALARM... - Page 18 ON/OFF 4 button, and turn it again, after a few seconds. Should the alarm persists, please contact the Rhima Service Department. ALARM B5 BOILER 1 OVERTEMPERATURE It is recommended to turn the appliance and contact the Rhima Service Department.
- Page 19 ON/OFF 4 button, and turn it again, after a few seconds. Should the alarm persists, please contact the Rhima Service Department. ALARM F4 WASH2 LOW TEMPERATURE The washing results may be aff ected. Please check if the curtains are properly placed and that dishes are well-positioned in the racks.
- Page 20 ON/OFF 4 button, and turn it again, after a few seconds. Should the alarm persists, please contact the Rhima Service Department. ALARM Z15 BREAK TANK DRAINING FAILURE Please make sure that rinse nozzles are not clogged. Please turn...
- Page 21 Contact the Rhima Service Department to connect suddenly stops overloaded system the machine separately A machine safety device tripped Contact the Rhima Service Department to check the security devices During the washing phase the The water of the previous day...
- Page 22 Should the alarm persists, please contact the Rhima Service Department to clean the Heat Recovery The ventilation motor is damaged Contact the Rhima Service Department The objects are not dried properly Insuff cient rinse aid dosage Verify the rinse aid dosage and increase it, if needed...
-
Page 23: Pressure Increase Pump
The machine doesn't rinse Contact the Rhima Service Department Water capacity not suff cient Verify the static pressure N.B.: For any other problems, contact the Rhima Service Department. The Manufacturer reserves the right to modify the technical characteristics without prior notice... - Page 24 Tel: 1300 347 944 New Zealand Tel: 0800 902 054 Singapore Tel: +65 9107 8943 DETERGENTS To request detergents or rinse additive contact your local Rhima Service centre below: Australia: 1300 347 944 New Zealand: 0800 902 054 Singapore: +65 9107 8943 Superwash...
