Cornwell Tools CSEPR4TA Operating Manual

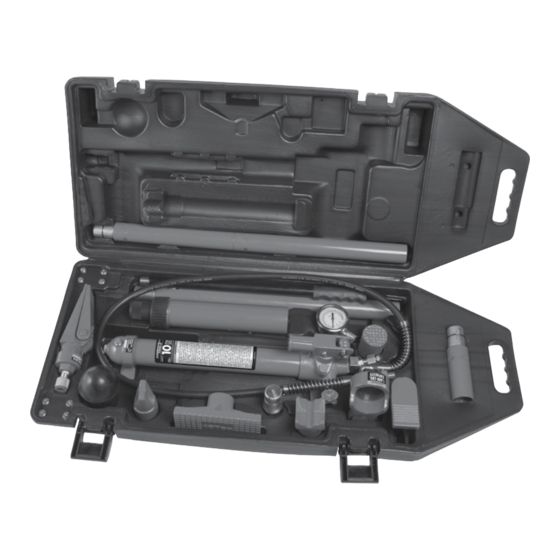

4 ton and 10 ton portable repair kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING MANUAL
CSEPR4TA
4 TON
Maximum Capacity ............ 4 Ton @ 7,250 psig ....... 10 Ton @ 7,250 psig
Ram Minimum Height ................... 10.5" ...........................................12.7"
Stroke ............................................. 4.7" ..............................................5.1"
Fluid Capacity ............................. 12.8 oz. ....................................... 22 oz.
Net Weight .................................. 43 Lbs....................................68.3 Lbs.
Shipping Weight .........................45.2 Lbs. ................................. 71.7 Lbs.
Manufactured to comply with the
ASME PASE-2019 Safety Standard
CSEPR4TA/CSEPR10TA
WARNING INFORMATION
•
SPECIFICATIONS
CSEPR4TA
CSEPR4TA AND CSEPR10TA
4 Ton and 10 Ton Portable
PARTS LIST
•
CSEPR10TA
1
Repair Kit
CSEPR10TA
10 TON
Copyright © Professional Tool Products, 2021
All rights reserved
03/18/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSEPR4TA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cornwell Tools CSEPR4TA

Summary of Contents for Cornwell Tools CSEPR4TA

  • Page 1 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit OPERATING MANUAL WARNING INFORMATION PARTS LIST • • CSEPR4TA 4 TON CSEPR10TA 10 TON SPECIFICATIONS CSEPR4TA CSEPR10TA Maximum Capacity .... 4 Ton @ 7,250 psig ..10 Ton @ 7,250 psig Ram Minimum Height ....
  • Page 2 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit WARNING INFORMATION This is the safety alert symbol. It is used to alert you WARNING: Indicates a hazardous situation WARNING to potential personal injury hazards. Obey all safety which, if not avoided, could result in death messages that follow this symbol to avoid possible or serious injury.

  • Page 3: Operation

    CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit PORTABLE HYDRAULIC POWER KIT SETUP INSTRUCTIONS This is the Safety Alert Symbol used for the SETUP INSTRUCTIONS section of this manual to alert you to potential personal injury hazards. Obey all instructions to avoid possible injury or death.

  • Page 4: Preventative Maintenance

    CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit 11. The the hose (P30) and the ram (2) are repeatedly disconnected and exposed to shop or work place floors that are covered with dirt and debris. It is important to use the dust caps (P32) provided to prevent contaminants from entering the air and hydraulic systems.

  • Page 5: Troubleshooting

    If that does not fix the problem check the pump reservoir's fluid level. The proper amount of fluid should be CSEPR4TA - 12.8 ounces and CSEPR10TA - 22 ounces. Use only hydraulic jack oil. For any other problems contact Cornwell authorized hydraulic service center.

  • Page 6: Warranty & Service

    CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit WARRANTY SERVICE In order to have your tool repaired, return the tool to any Cornwell Au tho rized Warranty Center, freight pre paid. Please include a copy of your proof of pur chase and a brief de scrip tion of the prob lem. The tool will be inspected and if any part or parts are found to be de fec tive in ma te ri al or work man ship, they will be re paired free of charge, and the re paired tool will be re turned to you freight pre paid.
  • Page 7 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit 4 Ton Portable Repair Kit - Parts Item # Part # Description Item # Part # Description RS4TPANG Pump w/Hose, Neon Green RS4T05NG Plunger Toe, Neon Green RSHS Hose...
  • Page 8 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit RS4TPANG - 4 Ton Pump P18-1 P18-2 Item # Part # Description Item # Part # Description Screw Ball Cup O-ring Spring RS4TPFNG Pump Foot, Neon Green Screw O-ring...
  • Page 9 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit RS4TRNG - 4 Ton Ram Item # Part # Description RS4TR01 Cover Circlip Piston Rod Circlip Bushing Sealing Ring Set Retaining Ring Spring Screw RS4TR12 Protection Cap Limit Ring...
  • Page 10 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit 10 Ton Portable Repair Kit - Parts 05.1 05.2 05.3 05.4 Item # Part # Description Item # Part # Description RS10TPANG Pump w/Hose, Neon Green RS10T04ANG Ram Toe, Neon Green...
  • Page 11 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit RS10TPANG - 10 Ton Pump P18-1 P18-2 Item # Part # Description Item # Part # Description Screw Ball Cup O-ring Spring RS10TPFNG Pump Foot, Neon Green Screw O-ring...
  • Page 12 CSEPR4TA AND CSEPR10TA 4 Ton and 10 Ton Portable Repair Kit RS10TRNG - 10 Ton Ram Item# Part# Description RS10TR01 Cover Circlip Piston Rod Circlip Bushing Sealing Ring Set Circlip Spring RS10TR12 Screw Protection Cap Limit Ring Cylinder Female Coupler...
