Cornwell Tools CAT800FR Operating Manual

3" flex head cut-off tool

Advertisement

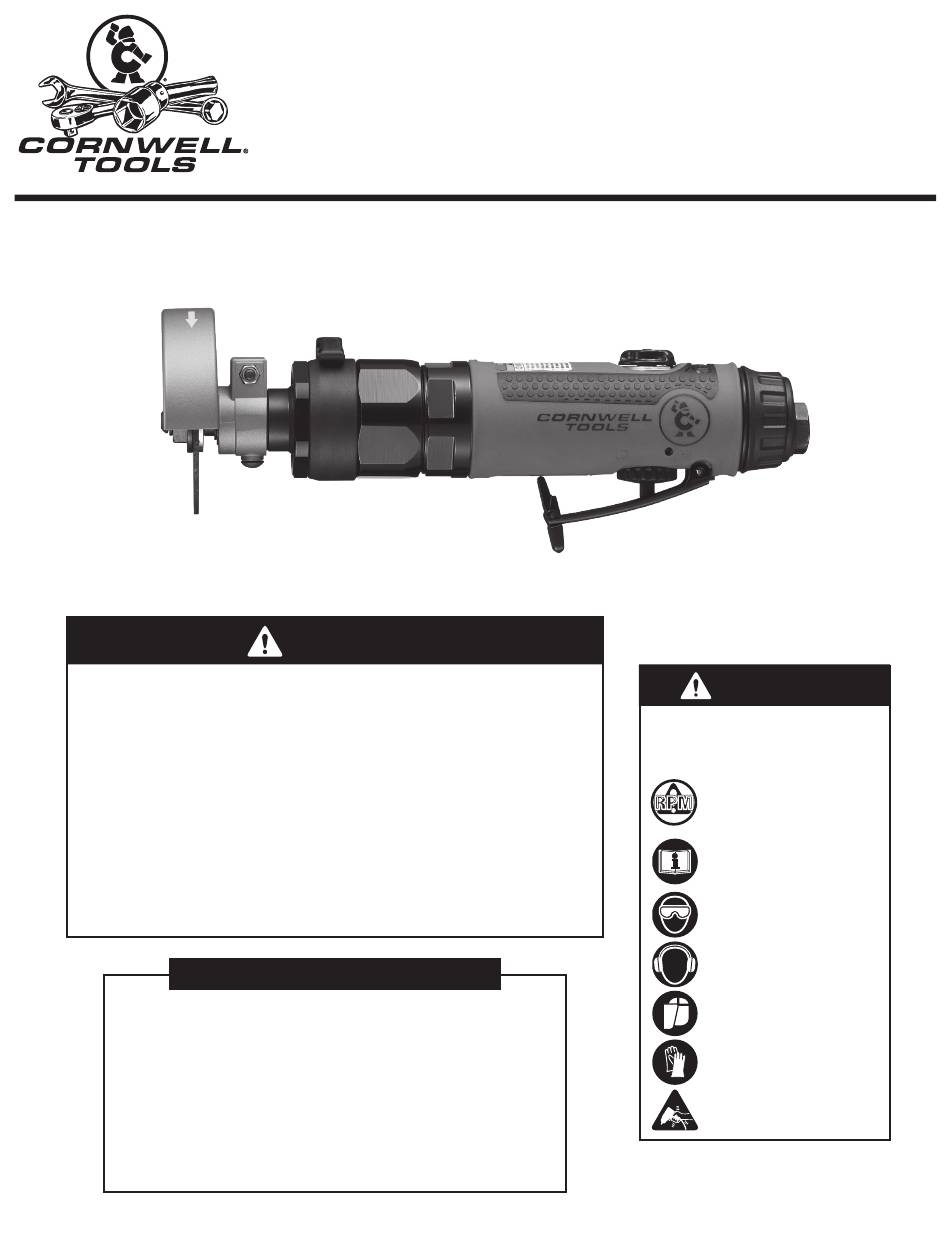

OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Wheel Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3"
Horsepower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.75
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16,000 RPM
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4 Lbs.
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . 90 psig, 6.2 bar
Air Inlet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 3.6 CFM
CAT800FR
WARNING INFORMATION
WARNING
SPECIFICATIONS
PARTS LIST
Copyright © Professional Tool Products, 2018
CAT800FR
3" Flex Head Cut-Off Tool
WARNING
• MAXIMUM RPM OF 16,000
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
RPM OF THE ACCESSORY
RPM
RPM
RPM
MUST EXCEED TOOL RPM
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
ALWAYS WEAR FACE
PROTECTION
ALWAYS WEAR HAND
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
All rights reserved
Rev. 10/18/18
