OPERATING MANUAL
SPECIFICATIONS
Capacity .................................................................................... 1,100 Lbs.
Working Range ....................................................................28.75" - 65.6"
Height Adjustment .....................................................................0" – 8.06"
Chain Length ......................................................................................37.8"
Product Weight ........................................................................... 40.1 Lbs.
Shipping Weight .......................................................................... 44.1 Lbs.
CSE1100
WARNING INFORMATION
•

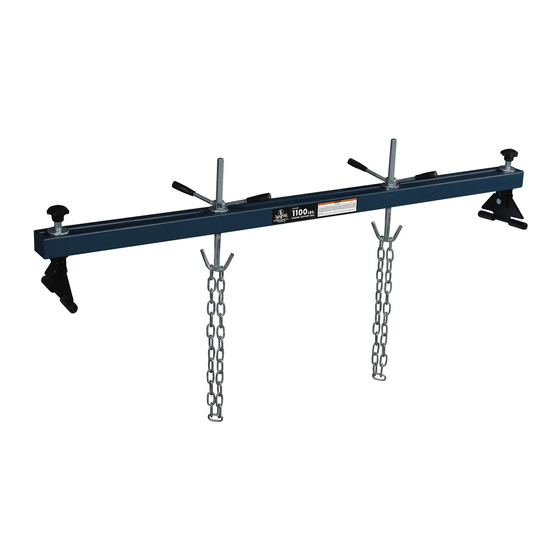

1,100 LBS. ENGINE SUPPORT BAR
PARTS LIST
•
Copyright © Professional Tool Products, 2019
CSE1100
All rights reserved
6/18/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CSE1100
Summary of Contents for Cornwell Tools CSE1100
- Page 1 CSE1100 1,100 LBS. ENGINE SUPPORT BAR OPERATING MANUAL WARNING INFORMATION PARTS LIST • • SPECIFICATIONS Capacity ..................1,100 Lbs. Working Range ..............28.75" - 65.6” Height Adjustment ..............0” – 8.06” Chain Length ..................37.8” Product Weight ................40.1 Lbs. Shipping Weight ................44.1 Lbs.
- Page 2 If the manual or product labels are lost or not legible, contact Cornwell Tools for replacements. If the operator is not fluent in English, the product and safety instructions shall be read to and discussed with the operator in the operator's native language by the purchaser/owner or his designee, making sure that the operator comprehends its contents.
- Page 3 Every Engine Support Bar owner is responsible for keeping the bar labels clean and readable. Use a mild soap solution to wash external surfaces of the bar. Contact Cornwell Tools for a replacement label if your bar's label is not readable.
- Page 4 CSE1100 1,100 LBS. ENGINE SUPPORT BAR WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants against defects on this product for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
- Page 5 CSE1100 1,100 LBS. ENGINE SUPPORT BAR EXPLODED BREAKDOWN PARTS LIST • REF. # PART # DESCRIPTION QTY. REF. # PART # DESCRIPTION QTY. Beam Foot bracket Knob Foot Washer Rubber block Handle sleeve Adjustable screw Grip handle RS6211612 Chain Washer...
