Cornwell Tools CAT250AHMV Operating Instructions

Operating Instructions
Warning Information Parts Breakdown
Blows per minute . . . . . . . . . . . . . . . . . . . . . . . . . 2,200 BPM
Stroke Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3/4"
Shank Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.401"
Bore Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/4"
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . 4 CFM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.1"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 Lbs
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"- 18 NPT
Minimum Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemicals
known to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
CAT250AHMV
SPECIFICATIONS
CAT250AHMV
Copyright © Professional Tool Products, 2009
1
AlwAYS reAd
inSTrucTionS
before uSing
power ToolS
AlwAYS weAr
SAfeTY goggleS
weAr heAring
proTecTion
Avoid
prolonged
expoSure To
vibrATion

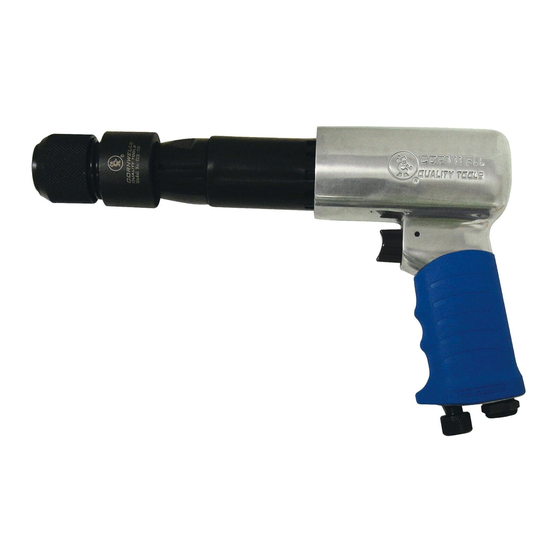

Heavy Duty
Air Hammer
All rights reserved
Rev. 05/27/09
