OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Blows per minute . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4,250 BPM
Number of Needles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Pc.
Needle Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3mm
Vibration Level, m/s² c . . . . . . . . . . . . . . . . . . . . . . . . .11.4 m/s2
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4"-18 NPT
Min. Hose Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Avg. Air Cons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 CFM
Recom. Air Pressure . . . . . . . . . . . . . . . . . . . . . 90 psiG (6.2 bar)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 lbs.
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.5"
Sound Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99 dBA
CAT120
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
•
Copyright © Professional Tool Products, 2021

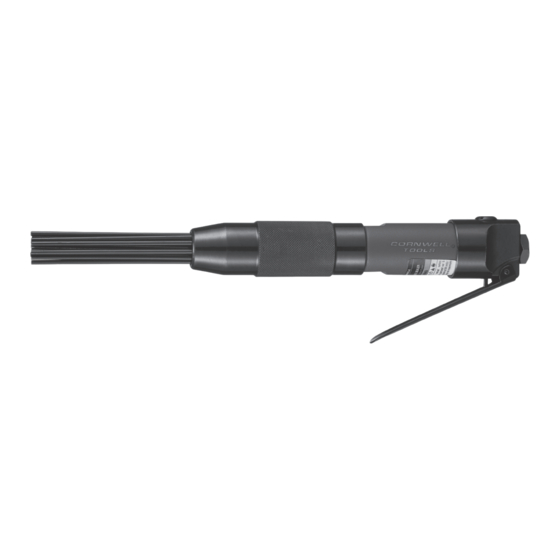

Compact Needle Scaler
WARNING
• MAX. AIR PRESSURE:
90 PSIG, 6.2 BAR
RPM OF THE ACCESSORY
MUST EXCEED TOOL RPM
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
ALWAYS WEAR FACE
PROTECTION
ALWAYS WEAR HAND
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
All rights reserved
CAT120
11/18/2021
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CAT120
Summary of Contents for Cornwell Tools CAT120
- Page 1 CAT120 Compact Needle Scaler OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other WARNING construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
- Page 2 If the manual or product labels are lost or not legible, jewelry or loose clothing. Secure long hair. Scalping can contact Cornwell Tools for replacements. If the operator is occur if hair is not kept away from tool and accessories.
- Page 3 CAT120 Compact Needle Scaler OPERATION Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple OPERATION NOTE: Always shut off air supply, drain hose of air Nipple Here pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs.
- Page 4 CAT120 Compact Needle Scaler WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of ONE (1) YEAR from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
- Page 5 CAT120 Compact Needle Scaler PARTS LIST Item Part No Parts Name Item Part No Parts Name RS24301 Valve Housing RS24310 Rear Valve Block RS848005 O-Ring (4.9 x 2.2) RS24312 Piston RS24303 Valve Seat RS24313 Cylinder RS24304 Spring RS24314 O-Ring RS240013...
