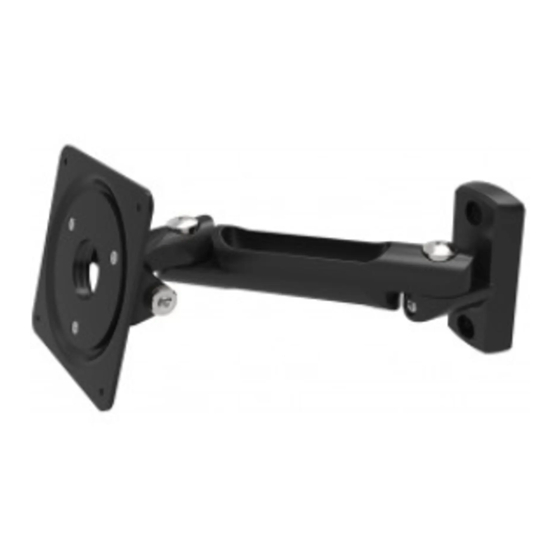

SlideDock Swing Arm
Assembly Instructions
Wall Mounting
2.75"
69.85mm
Hinge Adjustment
AFTER CORRECT TENSION IS ACHIEVED
TIGHTEN THE SETTING SCREW WITH THE WRENCH PROVIDED.
©Compulocks Brands Inc. All Rights Reserved.j
SKU:
827BSLDK
FIX TO SURFACE USING
APPROPRIATE SCREWS
(NOT INCLUDED)
STEP 3
ADJUST THE SECOND HINGE SCREW
TO DESIRED TENSION OF ARM
WITH WRENCH PROVIDED
STEP 4
DO NOT OVER TIGHTEN
www.compulocks.com | online@maclocks.com | +1 800-948-0344
Hinge Adjustment
STEP 2
AFTER CORRECT TENSION IS ACHIEVED
TIGHTEN THE SETTING SCREW WITH WRENCH PROVIDED.
DO NOT OVER TIGHTEN
Tilt Adjustment
ADJUST TILT TENSION SCREW
TO DESIRED TENSION
WITH WRENCH PROVIDED
STEP 1
ADJUST LARGE HINGE SCREW TO
DESIRED TENSION OF ARM
WITH WRENCH PROVIDED
Sheet 1 of 2
