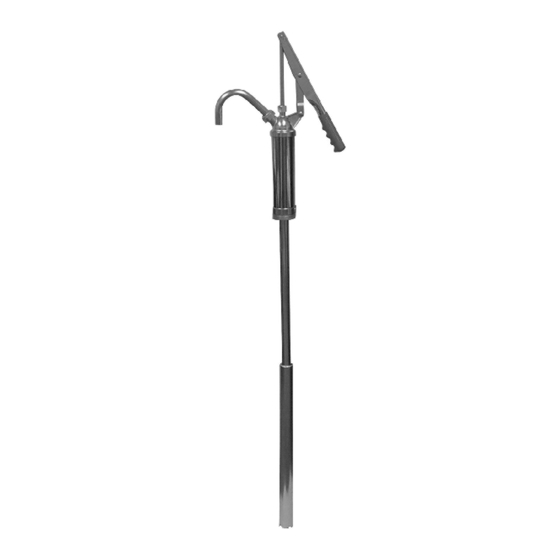

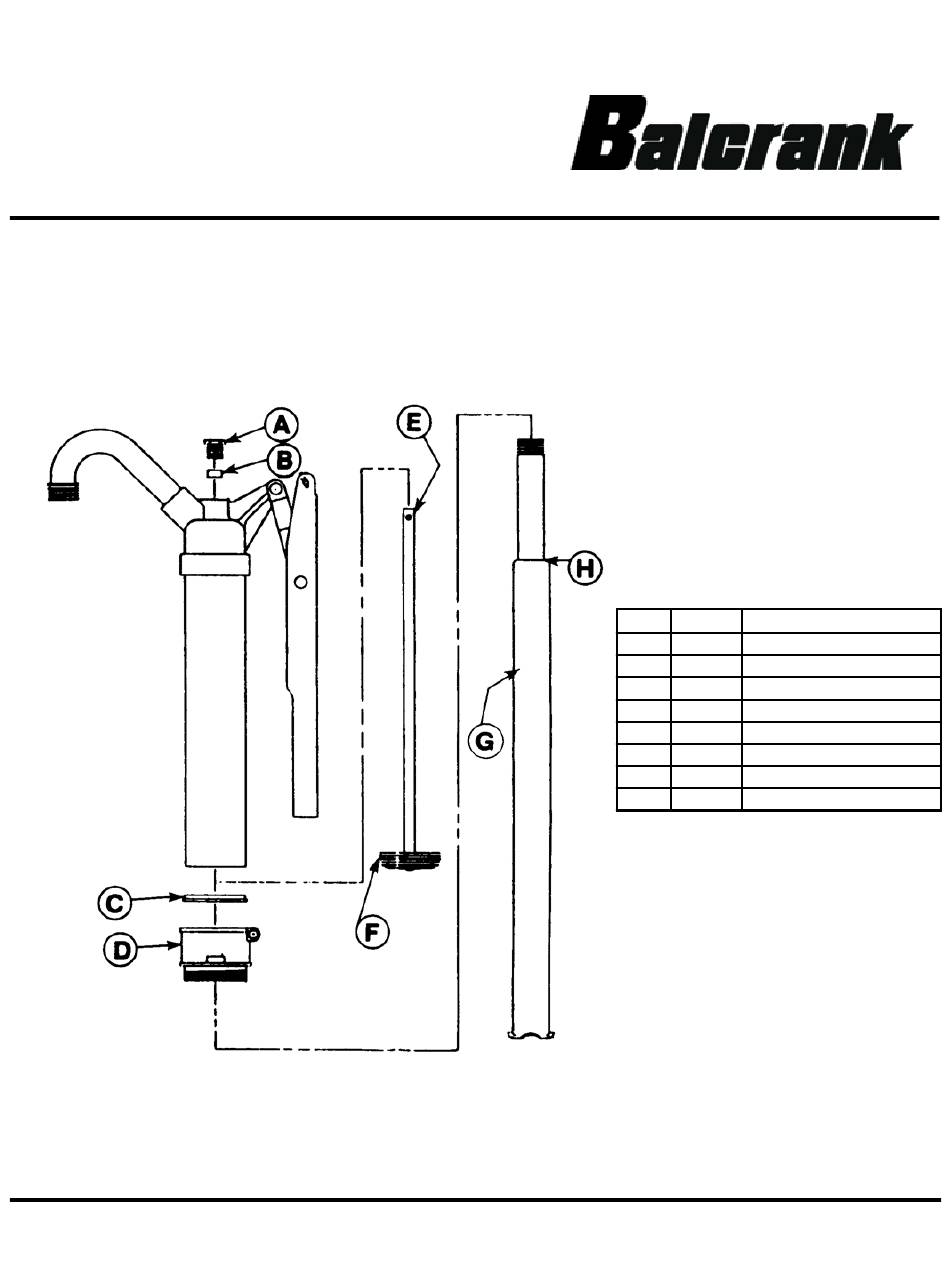

BARREL PUMP
MODEL #1300-001
ITEM PART# DESCRIPTION
A
B
C
D
E
F
G
H
Thoroughly read and understand this manual before
installing, operating or servicing this equipment.
OPERATION, INSTALLATION,
SERVICE BUTTETIN SB1054
822519 Bushing, Compression
822520 Seal
820180 Gasket, Molded
820178 Base Assembly
820827 Piston Sub Assembly
820829 Rings, Brass (2)
820184 Tube Section Assembly
822275 Seal
REV. B 2/03
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1300-001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Balcrank 1300-001

Summary of Contents for Balcrank 1300-001

  • Page 1 SERVICE BUTTETIN SB1054 REV. B 2/03 ® BARREL PUMP MODEL #1300-001 ITEM PART# DESCRIPTION 822519 Bushing, Compression 822520 Seal 820180 Gasket, Molded 820178 Base Assembly 820827 Piston Sub Assembly 820829 Rings, Brass (2) 820184 Tube Section Assembly 822275 Seal Thoroughly read and understand this manual before installing, operating or servicing this equipment.
  • Page 2 PARTS LIST AND INSTRUCTIONS FOR ASSEMBLING AND OPERATING HEAVY DUTY BARREL PUMP MODEL #1300-001 1. Screw the 822521 Spout into head, engaging threads until tight. If not properly aligned, increase pressure to further tighten spout to correct position. 2. Insert the 820184 Tube Section Assembly into the 820178 Base Assembly of the pump and tighten securely with a small pipe wrench to eliminate any air leaks.
