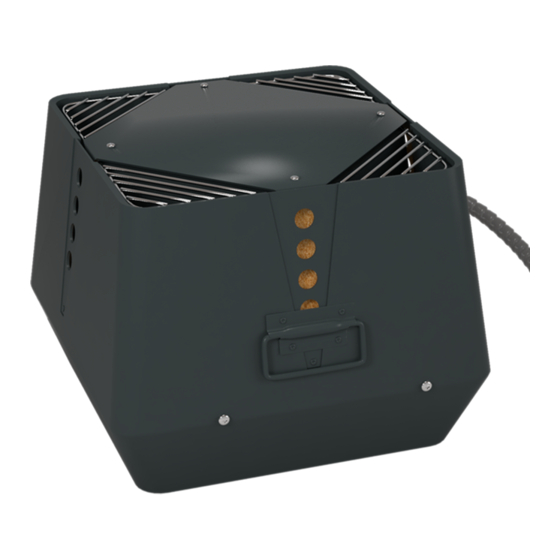

Exodraft RSV Manual

Exodraft RSV Manual

Chimney fan
Hide thumbs Also See for RSV:

Advertisement

Chimney Fan
RSV
UK
| Read and save these instructions!
Your energy. Optimized.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSV and is the answer not in the manual?

Questions and answers

Summary of Contents for Exodraft RSV

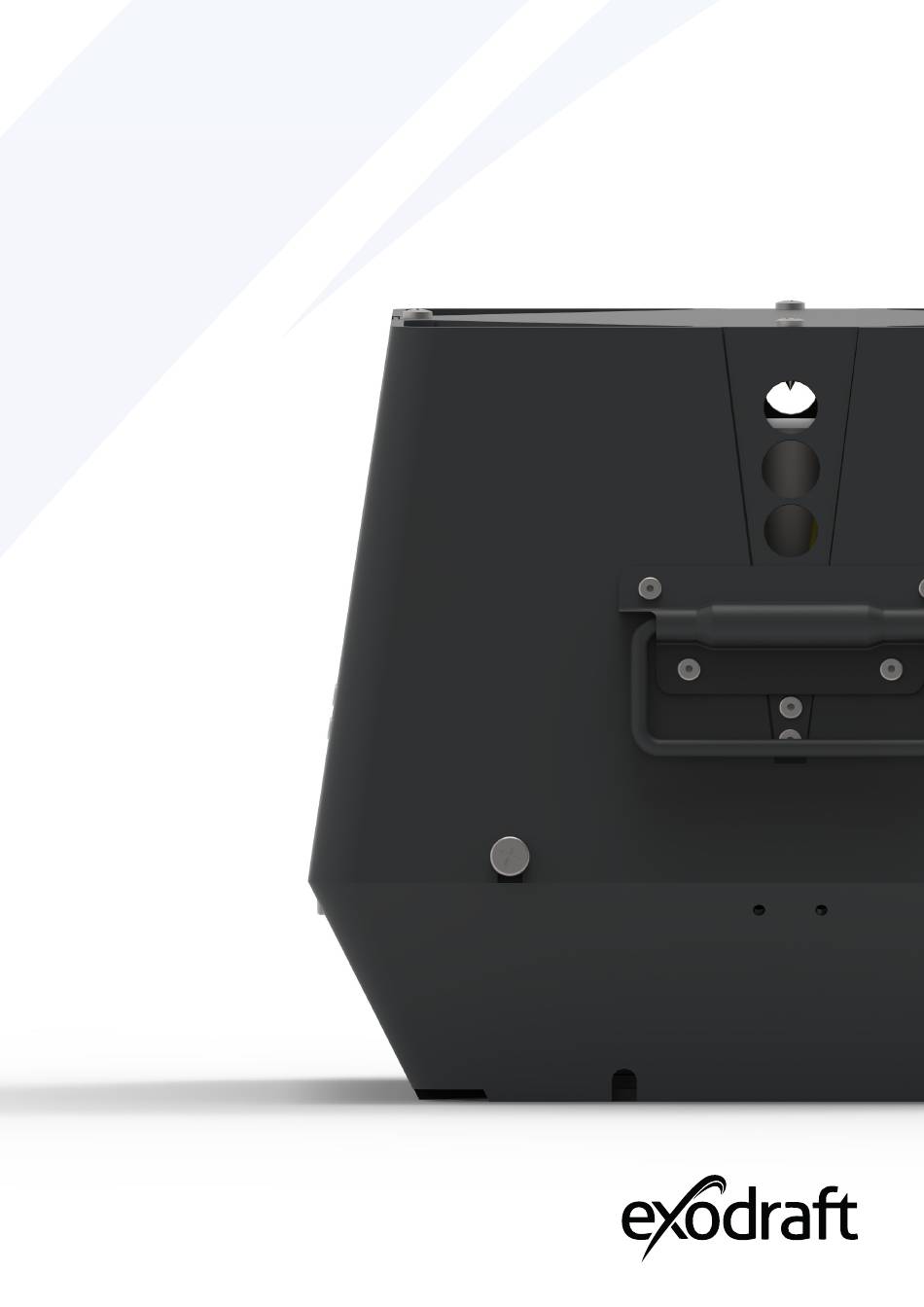

  • Page 1 Chimney Fan | Read and save these instructions! Your energy. Optimized.
  • Page 3: Table Of Contents

    Your energy. Optimized. Chimney Fan | RSV Content Product information Scope of supply Accessories and spare parts Technical specifications Precautions and user instructions Mechanical installation Transportation safety bracket Minimum distance Installation onto a brick chimney Installation onto a steel chimney...
  • Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
  • Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
  • Page 6 Prior to servicing the product, disconnect the power and ensure that it cannot accidentally be reconnected. • Exodraft always recommends the use of a smoke alarm when a solid fuel fireplace is installed. • If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please ensure that the design meets the requirements of BS EN15287-1.
  • Page 7: Product Information

    The fan is part of an Exodraft system and should be connected to an Exodraft controller for optimal effect. Incorrect firing may result in problems with soot, chimney fires, etc. which might damage the product.
  • Page 8 Your energy. Optimized. Warranty All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For some countries an extended period of guarantee may apply depending on either national legislation or other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or who- lesaler (preferably where the Exodraft product has been bought originally).
  • Page 9: Technical Specifications

    For more information about these parts see under accessories. All RSV models has a motor capacitor. The capacitor is considered a wear part that will be worn out over time (depending on usage). If the capacitor is worn out, the motor will have difficulties starting up. Then it is time to replace the capacitor.
  • Page 10 Technical data Motor specifications Weight Dimension [mm] Model og GSV og RSVG B x B C x C D [Ø] RSV009-41 1400 1 x 230 0.14 0.05 RSV012-41 1400 1 x 230 0.35 0.13 RSV014-41 1400 1 x 230 0.80 0.16 RSV016-41 1400...
  • Page 11 Handle Screws to fasten top and bottom section (Alternatively use supplied wing screws, where conditions allow) Armoured cable and connecting cable Mineral wool mat Safety wire Location brackets, bolts and nuts etc. RSV og GSV og RSVG UK | 11...
  • Page 12: Precautions And User Instructions

    Fireplaces and wood stoves used in private dwellings normally operate in a relatively stable environment, where no major pressure fluctuations occur. However, to secure an optimal use of the Exodraft system speed adjustments and adjustment of air intakes are required depending on the weather outside and on the stage of the firing process.
  • Page 13: Mechanical Installation

    3112001_RSV_UK Mechanical installation Exodraft products must always be installed by properly qualified personnel and according to the manufacturer’s instructions. Transportation safety bracket Do not forget to remove the transport safety bracket located near the impeller and check that the axial vane/impeller turns freely, before mounting the fan on the chimney.
  • Page 14: Minimum Distance

    The chimney fan can be mounted horizontally or vertically. Be aware of national law and building regulations! RSV og GSV og RSVG Minimum distance The minimum distance to flammable materials must be at least 500 mm (national legislation must be observed)! Min.
  • Page 15: Installation Onto A Brick Chimney

    Please note that the bolts must be inserted from beneath. RSV og GSV og RSVG Adjust the distance between the location brackets to fit the inside diameter of the chimney, and then tighten the nuts.
  • Page 16 (on top of the mat) with the location brackets into the chimney. Do not screw or bolt the brackets into IMPORTANT! RSV og GSV og RSVG the flue pipe! Use the safety wire to secure the fan to the chimney. Apply the supplied screw and rawlplug into the brick chimney.
  • Page 17: Installation Onto A Steel Chimney

    3112001_RSV_UK Installation onto a steel chimney If the fan is to be fitted on a steel chimney, the chimney fan must be installed with an approved flange. See the installation guide below. Step Action Illustration The flange must be placed so that the spigot goes into the chimney! Measure the diameter of the hole in the flange.
  • Page 18 Be aware that the washers flat and hex nuts must be mounted inside the bottom part of the RSV model. RSV og GSV og RSVG The fan assembly can now be fitted onto the steel chimney. RSV og GSV og RSVG...
  • Page 19 3112001_RSV_UK Use the safety wire to secure the fan to the chimney. Apply the supplied self-cutting screw in steel chimney. Then mount the wire through the designated hole in the base plate and into the wire lock. Tighten the safety wire slightly and then tighten the wire lock, so that the chimney fan is secured when opened for service and cleaning purposes.
  • Page 20: Multiple Fans On Chimney

    If two or more fans are required to create suffi- cient draft, a special adapter plate is required (not an Exodraft part). The two holes in the plate should match the throat diameter of the fan model used and the distance from center to center should be at least equal to the fan width.
  • Page 21: Electrical Installation

    In accordance with the provisions of the applicable EU Machinery Directive a chimney fan must always have an isolation switch fitted. The isolation switch must comply with national wiring standards, and it must be ordered separately, as it is not part of the standard Exodraft scope of delivery. Connecting...
  • Page 22: Startup And Configuration

    Make sure that no flue gases are spilling out as this can lead to carbon monoxide poisoning! After system testing, Exodraft recommends igniting your fireplace or stove. Follow the guide below for correct lighting and use of the chimney fan.
  • Page 23: Maintenance And Troubleshooting

    While the fan is open, it is also possible for the chimney sweep to sweep the chimney. RSV og GSV Make sure that no weights on the centrifugal impeller are removed as this could impair the balance of the impeller.
  • Page 24: Troubleshooting

    Your energy. Optimized. Troubleshooting Observation Problem Solution The isolation switch may be on off Check isolation switch There is no power to the fan The speed control is turned off Turn speed control on Loose electrical connection Check wiring and correct problem Loose electrical connections Check wiring and correct problems with connections.
  • Page 25: Uk Conformity Assessed

    UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: RSV009-41, RSV012-41, RSV014-41, RSV016-41, RSV160-41, RSV200-41, RSV250-41, RSV315-41, RSV400-41, RSV400-42, RSV450-42, RSV250-43, RSV315-43, RSV400-43 Were manufactured in conformity with the provisions of the following regulations:...
  • Page 26: Declaration Of Conformity

    EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności Exodraft a/s Industrivej 10 DK-5550 Langeskov Erklærer på eget ansvar, at følgende produkter: Veklaart dat onderstaande producten: Hereby declares that the following products: Deklarerar på...
  • Page 28 DK: Exodraft a/s Industrivej 10 DK-5550 Langeskov Tel: +45 7010 2234 Fax: +45 7010 2235 info@exodraft.dk www.exodraft.dk SE: Exodraft a/s Kalendevägen 2 SE-302 39 Halmstad Tel: +46 (0)8-5000 1520 info@exodraft.se www.exodraft.se NO: Exodraft a/s Storgaten 88 NO-3060 Svelvik Tel: +47 3329 7062 info@exodraft.no...
