Summary of Contents for Exodraft RSHG

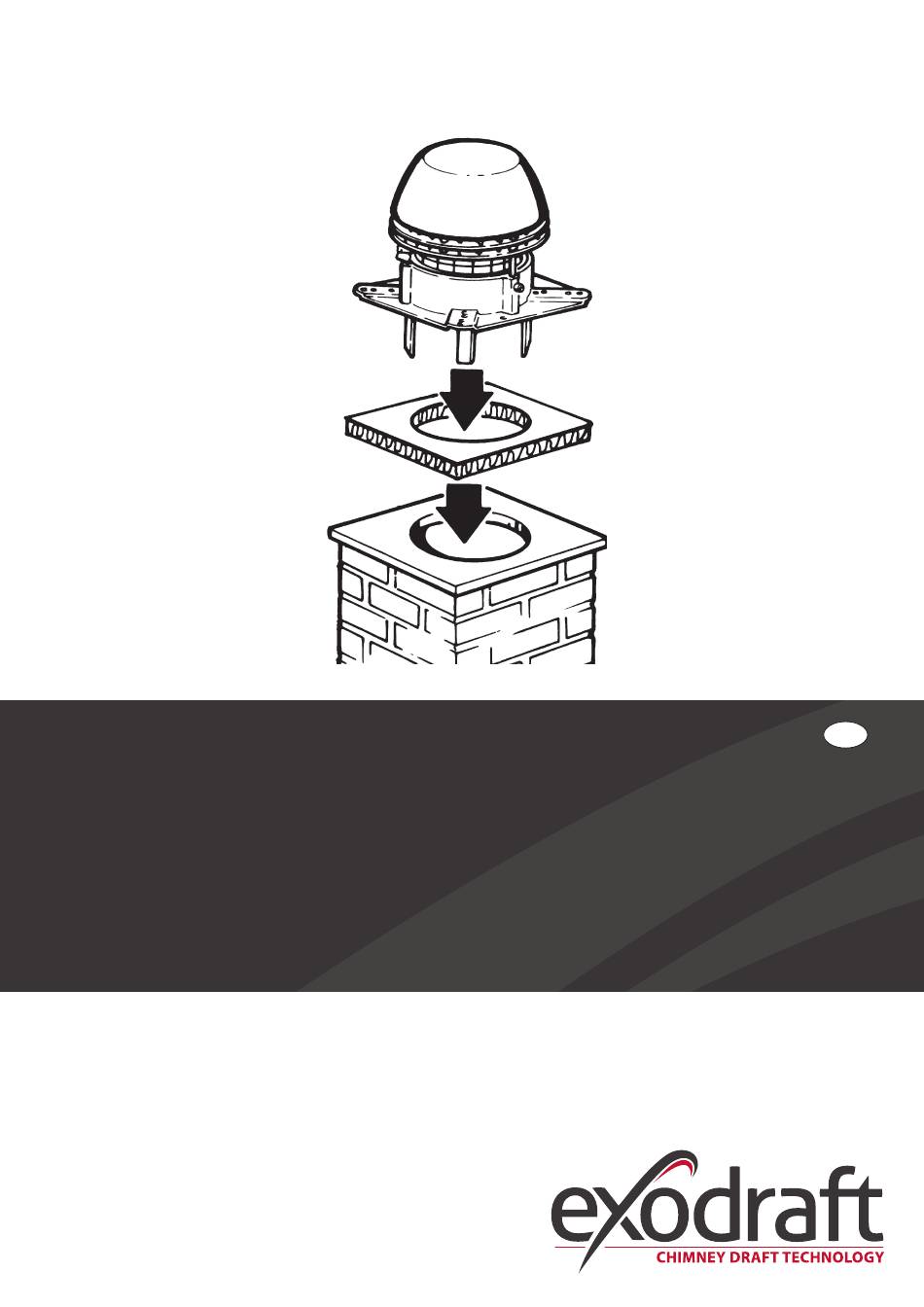

- Page 1 RSHG...
-
Page 2: Table Of Contents
3000126-2011-06-09 1. GB - Product information ....................3 1.1 Construction and design ..................3 1.2 Installation instructions ..................4 1.3 Wiring ........................7 1.4 Commissioning of the chimney fan ................7 1.5 Service and cleaning ....................8 1.6 Technical specifications ...................8 1.7 Warranty ........................8 Declaration of Conformity ....................11... -
Page 3: Gb - Product Information

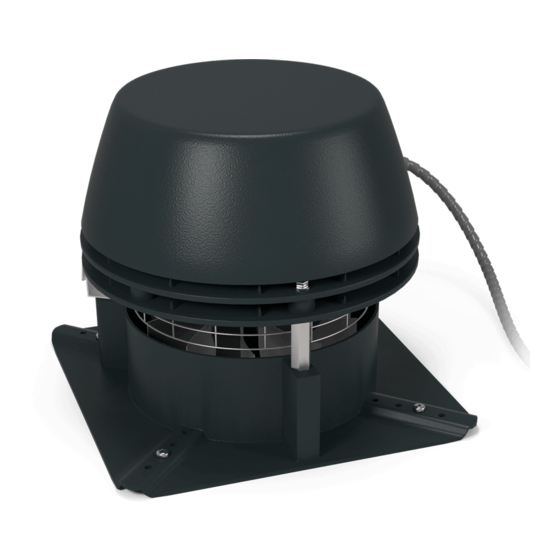

3000126-2011-06-09 1. GB - Product information The exodraft Chimney Fan type RSHG is used as part of the fail-safe flue system for open flued gas appliances, such as stoves and domestic boliers. The RSHG gives a horisontal discharge of the flue gases. -
Page 4: Installation Instructions
3000126-2011-06-09 1.2 Installation instructions Before fitting onto a chimney If..then... the fan is to be mounted onto a brick chimney the chimney must have location brackets - see below the fan is to be mounted onto a steel chimney a flange is required (supplied as an extra ) -see below it is an RSHG014 remove the transport safety bolt on the hinges... - Page 5 3000126-2011-06-09 Before fitting onto a steel chimney Step Action A flange (C) is used, fitted so that the spigot end sits inside the chimney (D). Place the mineral wool mat (A) on the flange (C) with aluminium foil facing upwards and cut a hole in the mineral wool mat, the hole being the same diameter as the flange hole.
- Page 6 3000126-2011-06-09 Step Action Mount the safety wire in the chimney (1). Use the supplied screw and rawl-plug in brick chimney and the self-cutting screw in steel chimney. Then mount the wire through the hole in the base plate and into the wire lock. Tighten the safety wire slightly and tighten the wire lock (2), so that the chimney fan is secured when opened for service and cleaning purposes.
-
Page 7: Wiring
EXHAUSTO GRUNDFOS Grundfos motor Project: 1250434 87104372 RHG160-41 Title: RSHG012-41 The isolation switch must be ordered separately, as it is not part of the standard exodraft Connection diagram 1250467 87104373 RSG200-41 chimney fan delivery. 96780832 1250203 87104374 RSHG014-41... -
Page 8: Service And Cleaning
1.6 Technical specifications The sound level is below 67 dB at a distance greater than one metre away from the RSHG fan when it is correctly fitted. Further information is available in the catalogue. The standard version of the RSHG fan is designed to operate with a maximum flue gas temperature of 250°C. - Page 9 3000126-2011-06-09...
- Page 10 3000126-2011-06-09...
-
Page 11: Declaration Of Conformity
EU-Vaatimustenmukaisuusvakuutus FR: Déclaration de conformité de l’Union Européenne IS: ESS-Samræmisstaðfesting NO: EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea exodraft a/s C.F. Tietgens Boulevard 41 DK-5220 Odense SØ -erklærer på eget ansvar, at følgende produkter: -veklaart dat onderstaande producten: -hereby declares that the following products: -deklarerar på... - Page 12 Szeroki asortyment produktów exodraft oparty jest na ponad 50-letniem doświadczeniu oraz wiedzy w zakresie technologii spalania i ciągu kominowego. Nasze produkty są znane z wysokiej jakości i bezpieczeństwa. Nasza fi rma bierze udział w tworzeniu standardów i wymagań dla technologii ciągu kominowego.
