- Page 1 Chimney Fan | Read and save these instructions! Your energy. Optimized.
-
Page 3: Table Of Contents
Your energy. Optimized. Chimney Fan | RSG Content Product information Scope of supply Accessories and spare parts Technical specifications Precautions and user instructions Mechanical installation Location of the fan Installation of the silencer Installation of the fan Electrical installation Spillage test and pressure differential switch... - Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
- Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
- Page 6 Prior to servicing the product, disconnect the power and ensure that it cannot accidentally be reconnected. • Exodraft always recommends the use of a smoke alarm when a solid fuel fireplace is installed. • If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please ensure that the design meets the requirements of BS EN15287-1.
-
Page 7: Product Information
RSG. The RSG type fan is used as part of the fail-safe flue system for open flued gas appliances, such as stoves and domestic boliers. The RSGC type fan is used as part of a fail-safe flue system for closed appliances such as cookers and oil-fired and gas-fired boilers. -
Page 8: Technical Specifications

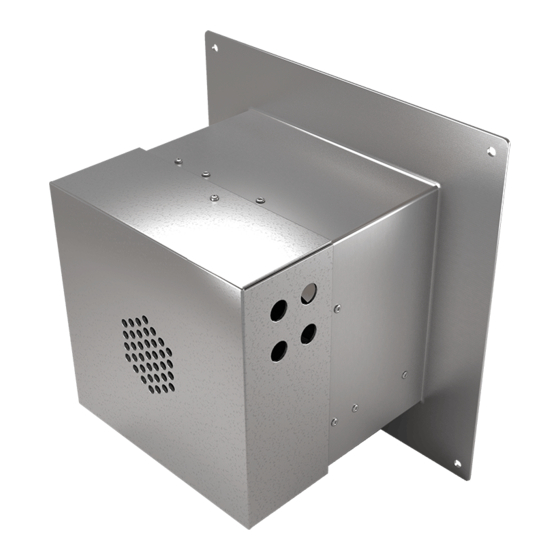

Force majeure Technical specifications The Exodraft chimney fan type RSG gives a downward discharge of the flue gases through secure grilles on the underside of the fan housing. It is made from galvanised sheet metal, fitted with a centrifugal impeller. - Page 9 3112007_RSG_UK Technical data Dimension [mm] Model F [Ø] RSG125-41 RSG150-41 RSG200-41 RSGC150-41 Motor specifications Weight Model RSG125-41 1400 1 x 230 0.04 RSG150-41 1400 1 x 230 0.05 RSG200-41 1400 1 x 230 0.11 RSGC150-41 1400 1 x 230 0.14 *Effect at the motor shaft at ambient temperature: 20 °C •...
- Page 10 Your energy. Optimized. Construction and components Fan housing Motor Centrifugal impeller Pressure differential switch (PDS) Hinged outer door Air flow sensor (-) Air flow sensor (+) Cooling impeller Screw to open hinged inner door Screw to open hinged outer door Outlet grill Flow reducing plate Screw for flow reducing plate...
- Page 11 Silencer - Accessorie A silencer type SLR can be supplied as an accessory for the RSG model. The silencer is round and has a length of min. 280 mm. Its outer housing is made of galvanised sheet metal, insulated by mineral wool to a thickness of 50 mm with a perforated inner steel sleeve.
-
Page 12: Precautions And User Instructions
Be aware that it • RSG/C should not be mounted directly on a timber wall or any other walls of inflammable material. • The silencer and the flue pipe should not be in contact with any inflammable material when it is instal- led in the wall. -
Page 13: Mechanical Installation
3112007_RSG_UK Mechanical installation Exodraft products must always be installed by properly qualified personnel and according to the manufacturer’s instructions. Location of the fan In the case of a room without a chimney, decide the final location of the appliance. Check that the fan posi- tion on the external wall is acceptable. -
Page 14: Installation Of The Silencer
Your energy. Optimized. Installation of the silencer If the silencer is shorter than the wall thick- ness, use the location brackets supplied with the silencer to secure it in the wall. It is possible to use two of the holes and screws, which are used to secure the fan. -
Page 15: Installation Of The Fan
3112007_RSG_UK Installation of the fan Step Action Drawing Place the fan (silencer) through the hole from the outside. Mark off the four holes of the fan flange on the external wall. Remove fan assembly, drill holes and insert rawlplugs supplied. Apply mastic to the underside of the flange, replace fan assembly and anchor it firmly to the wall with the four screws supplied Connect the flue pipe to the silencer on the inlet side of the... - Page 16 Your energy. Optimized. RSG for capped chimney A sealing plate must be located in the chimney approximately 100 mm above the hole for the chimney box. The sealing plate should be firmly inserted into the flue wall and properly sealed. It must be established that there are no leaks.
-
Page 17: Electrical Installation
In accordance with the provisions of the EU Machinery Directive* a chimney fan must always have an isolation switch fitted. The isolation switch must comply with national wiring standards. The isolation switch must be ordered separately, as it is not part of the standard Exodraft chimney fan delivery. -
Page 18: Spillage Test And Pressure Differential Switch
If spillage is detected, the fan speed must be turned up. Please refer to the appropriate Exodraft fan control installation guides, for further commissioning assistance. Type... -
Page 19: Startup And Configuration
Turn the chimney fan ON and make sure that it is turning. Increase and decrease the speed of the fan by adjusting the speed control to make sure the fan is operating properly. After system testing, Exodraft recommends igniting your fireplace or stove. Follow the guide below for correct lighting and use of the chimney fan. -
Page 20: Maintenance And Troubleshooting
Your energy. Optimized. Maintenance and troubleshooting The motor has special ball bearings that are sealed, lifetime lubricated and maintenance-free. If replace- ment of the bearings is required, this should be carried out by qualified professionals. The run capacitor is considered a wear part and will need to be replaced depending on usage. Gas appliances should be checked for safety once a year by a installer registered in the Gas Safe Register. -
Page 21: Troubleshooting
3112007_RSG_UK Troubleshooting Observation Problem Solution The isolation switch may be on off Check isolation switch There is no power The speed control is turned off Turn speed control on to the fan Loose electrical connection Check wiring and correct problem Loose electrical connections Check wiring and correct problems with connections. -
Page 22: Uk Conformity Assessed
UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: RSG150-41, RSG200-41 Were manufactured in conformity with the provisions of the following regulations: The Supply of Machinery (Safety) Regulations 2008 Electrical Equipment (Safety) Regulations 2016... -
Page 23: Declaration Of Conformity
EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności Exodraft a/s Industrivej 10 DK-5550 Langeskov Erklærer på eget ansvar, at følgende produkter: Veklaart dat onderstaande producten: Hereby declares that the following products: Deklarerar på... - Page 24 DK: Exodraft a/s Industrivej 10 DK-5550 Langeskov Tel: +45 7010 2234 Fax: +45 7010 2235 info@exodraft.dk www.exodraft.dk SE: Exodraft a/s Kalendevägen 2 SE-302 39 Halmstad Tel: +46 (0)8-5000 1520 info@exodraft.se www.exodraft.se NO: Exodraft a/s Storgaten 88 NO-3060 Svelvik Tel: +47 3329 7062 info@exodraft.no...
