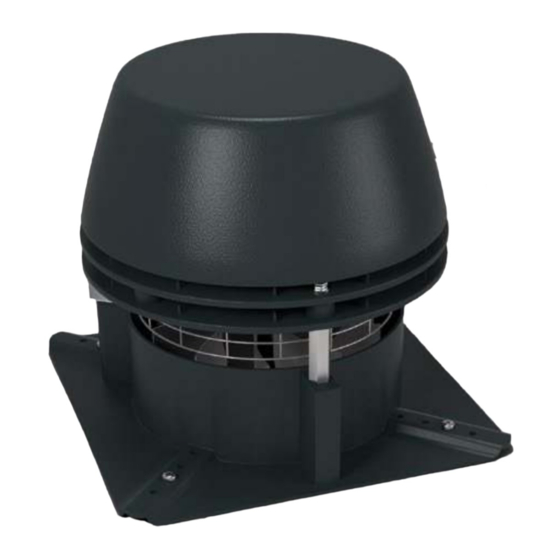

- Page 1 Chimney Fan RSHG | Read and save these instructions! Your energy. Optimized.
-
Page 3: Table Of Contents
Your energy. Optimized. Chimney Fan | RSHG Content Product information Scope of supply Accessories and spare parts Technical specifications Precautions and user instructions Mechanical installation Transportation safety bolts Minimum distance Installation onto a brick chimney Installation onto a steel chimney Multiple fans on chimney Electrical installation Isolation switch... - Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
- Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
- Page 6 Prior to servicing the product, disconnect the power and ensure that it cannot accidentally be reconnected. • Exodraft always recommends the use of a smoke alarm when a solid fuel fireplace is installed. • If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please ensure that the design meets the requirements of BS EN15287-1.
-
Page 7: Product Information
The fan is developed with a fail-safe flue system, specifically for gas fireplaces and individual gas-fired boilers. The fan is part of an Exodraft system and should be connected to an EFC21 Exodraft controller for optimal effect. Please check out this site for advice about other Exodraft products: www.exodraft.com... -
Page 8: Technical Specifications
Your energy. Optimized. Warranty All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For some countries an extended period of guarantee may apply depending on either national legislation or other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or wholesaler (preferably where the Exodraft product has been bought originally). - Page 9 3112006_RSHG_UK Technical data Motor specifications Weight Dimension [mm] Model C [Ø] E [Ø] RSHG012-41 1400 1 x 230 0.30 0.03 RSHG014-41 1400 1 x 230 0.40 0.04 *Power consumption at ambient temperature of 20 °C • The RPM of the above fan models are infinitely adjustable •...
- Page 10 Your energy. Optimized. Construction and components Top section Bottom section Motor Motor plate Cooling plate Axial vane/Impeller Safety mesh Pressure differential switch (PDS) Pressure sensors Armoured cable and connecting cable Mineral wool mat Safety wire Location brackets, bolts and nuts etc. RSHG 10 | UK...
-
Page 11: Precautions And User Instructions
However, to secure an optimal use of the Exodraft system speed adjustments and adjustment of air intakes are required depending on the weather outside and on the stage of the firing process. -
Page 12: Mechanical Installation
Your energy. Optimized. Mechanical installation Exodraft products must always be installed by properly qualified personnel and according to the manufacturer’s instructions. Gas appliances should be checked for safety once a year by a installer registered in the Gas Safe Register. -
Page 13: Minimum Distance
3112006_RSHG_UK Positioning of the chimney fan The chimney fan can be mounted horizontally or vertically. Be aware of national law and building regulations! RS og RSHG Minimum distance The minimum distance to flammable materials must be at least 500 mm (national legislation must be observed)! RS og RSHG Min. -
Page 14: Installation Onto A Brick Chimney
Your energy. Optimized. Installation onto a brick chimney If the fan is to be fitted on a brick chimney, please use the location brackets. See the installation guide below. Step Action Illustration Measure the inside diameter of the brick chimney. Then cut a hole in the mineral wool mat that matches. - Page 15 3112006_RSHG_UK Place the mineral wool mat on top of the chimney. It can be used with either of the sides facing the fan. The chimney fan can now be lowered into place (on top of the mat) with the location brackets into the chimney.
-
Page 16: Installation Onto A Steel Chimney
Your energy. Optimized. Installation onto a steel chimney If the fan is to be fitted on a steel chimney, the chimney fan must be installed with an approved flange. See the installation guide below. Step Action Illustration The flange must be placed so that the spigot goes into the chimney! Measure the diameter of the hole in the flange. - Page 17 3112006_RSHG_UK Fixate the flange to the chimney fan with the use of the vibration dampers supplied with the flange. RS og RSHG The fan assembly can now be fitted onto the steel chimney. RS og RSHG UK | 17...
- Page 18 Your energy. Optimized. Use the safety wire to secure the fan to the chimney. Apply the supplied self-cutting screw in steel chimney. Then mount the wire through the designated hole in the base plate and into the wire lock. Tighten the safety wire slightly and then tighten the wire lock, so that the chimney fan is secured when opened for service and cleaning purposes.
-
Page 19: Multiple Fans On Chimney
If two or more fans are required to create suffi- cient draft, a special adapter plate is required (not an Exodraft part). The two holes in the plate should match the throat diameter of the fan model used and the distance from center to center should be at least equal to the fan width. -
Page 20: Electrical Installation
In accordance with the provisions of the applicable EU Machinery Directive a combustion-gas fan must always have an isolation switch fitted. The isolation switch must comply with national wiring standards, and it must be ordered separately, as it is not part of the standard Exodraft scope of delivery. 20 | UK... -
Page 21: Startup And Configuration
Turn the chimney fan ON and make sure that it is turning. Increase and decrease the speed of the fan by adjusting the speed control to make sure the fan is operating properly. After system testing, Exodraft recommends igniting your fireplace or stove. Follow the guide below for correct lighting and use of the chimney fan. -
Page 22: Commissioning Of The Chimney Fan
During such a test, all windows and doors must be closed and any ventilation fans switched on. Please refer to the relevant Exodraft Gas Fan Controller Installation Instructions for guidance. Remove the top cover and adjust the (PDS) to the required value. -
Page 23: Maintenance And Troubleshooting
3112006_RSHG_UK Maintenance and troubleshooting Care and cleaning It is extremely important to keep the flue clean from creosote and deposits as soot is the major cause of chimney fires. The top of the fan is hinged and can be opened to ensure easy cleaning of the fan. Cleaning intervals depend on the use of the fireplace. -
Page 24: Troubleshooting
Your energy. Optimized. Troubleshooting Observation Problem Solution The isolation switch may be on off Check isolation switch There is no power The speed control is turned off Turn speed control on to the fan Loose electrical connection Check wiring and correct problem Loose electrical connections Check wiring and correct problems with connections. -
Page 25: Uk Conformity Assessed
UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: RSHG012-41, RSHG014-41 Were manufactured in conformity with the provisions of the following regulations: The Supply of Machinery (Safety) Regulations 2008 Electrical Equipment (Safety) Regulations 2016... -
Page 26: Declaration Of Conformity
EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności Exodraft a/s Industrivej 10 DK-5550 Langeskov Erklærer på eget ansvar, at følgende produkter: Veklaart dat onderstaande producten: Hereby declares that the following products: Deklarerar på... - Page 28 DK: Exodraft a/s Industrivej 10 DK-5550 Langeskov Tel: +45 7010 2234 Fax: +45 7010 2235 info@exodraft.dk www.exodraft.dk SE: Exodraft a/s Kalendevägen 2 SE-302 39 Halmstad Tel: +46 (0)8-5000 1520 info@exodraft.se www.exodraft.se NO: Exodraft a/s Storgaten 88 NO-3060 Svelvik Tel: +47 3329 7062 info@exodraft.no...
