  • Page 1 Chimney Fan RSHT | Read and save these instructions! Your energy. Optimized.
  • Page 3: Table Of Contents

    Your energy. Optimized. Chimney Fan | RSHT Content Product information Scope of supply Accessories and spare parts Technical specifications Precautions and user instructions Mechanical installation Transportation safety bracket Minimum distance Installation onto a brick chimney Installation onto a steel chimney...
  • Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
  • Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
  • Page 6 Prior to servicing the product, disconnect the power and ensure that it cannot accidentally be reconnected. • Exodraft always recommends the use of a smoke alarm when a solid fuel fireplace is installed. • If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please ensure that the design meets the requirements of BS EN15287-1.

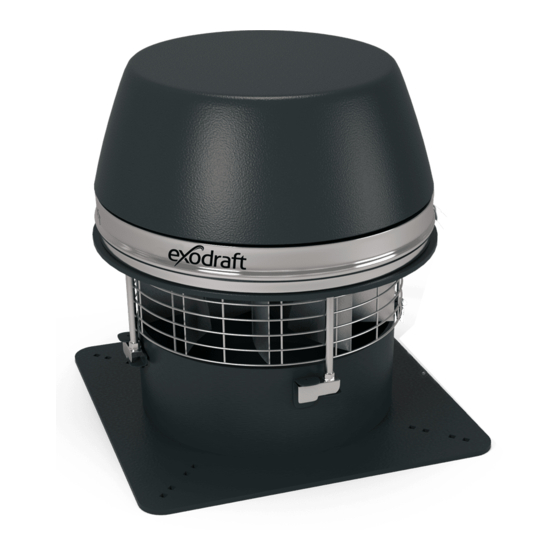

  • Page 7: Product Information

    The fan is part of an Exodraft system and should be connected to an Exodraft controller for optimal effect. Incorrect firing may result in problems with soot, chimney fires, etc. which might damage the product.
  • Page 8: Technical Specifications

    Your energy. Optimized. Warranty All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For some countries an extended period of guarantee may apply depending on either national legislation or other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or wholesaler (preferably where the Exodraft product has been bought originally).
  • Page 9 For more information about these parts see under accessories. All RSHT models has a motor capacitor. The capacitor is considered a wear part that will be worn out over time (depending on usage). If the capacitor is worn out, the motor will have difficulties starting up. Then it is time to replace the capacitor.
  • Page 10 Your energy. Optimized. Construction and components Top section Bottom section Motor Motor plate Cooling plate Axial vane Safety hinge Safety mesh Armoured cable and connecting cable Mineral wool mat Safety wire Location brackets, bolts and nuts etc. 10 | UK...
  • Page 11: Precautions And User Instructions

    Fireplaces and wood stoves used in private dwellings normally operate in a relatively stable environment, where no major pressure fluctuations occur. However, to secure an optimal use of the Exodraft system speed adjustments and adjustment of air intakes are required depending on the weather outside and on the stage of the firing process.
  • Page 12: Mechanical Installation

    Your energy. Optimized. Mechanical installation Exodraft products must always be installed by properly qualified personnel and according to the manufacturer’s instructions. Transportation safety bracket Do not forget to remove the transport safety bracket located near the axial vane and check that the axial vane turns freely, before mounting the fan on the chimney.
  • Page 13: Minimum Distance

    3112003_RSHT_UK Positioning of the chimney fan The chimney fan can only be mounted vertically. Be aware of national law and building regulations! Minimum distance The minimum distance to flammable materials must be at least 500 mm (national legislation must be observed)! Min.
  • Page 14: Installation Onto A Brick Chimney

    Your energy. Optimized. Installation onto a brick chimney If the fan is to be fitted on a brick chimney, please use the location brackets. See the installation guide below. Step Action Illustration Measure the inside diameter of the brick chimney. Then cut a hole in the mineral wool mat that matches.
  • Page 15 3112003_RSHT_UK Place the mineral wool mat on top of the chimney. It can be used with either of the sides facing the fan. The chimney fan can now be lowered into place (on top of the mat) with the location brackets into the chimney.
  • Page 16: Installation Onto A Steel Chimney

    Your energy. Optimized. Installation onto a steel chimney If the fan is to be fitted on a steel chimney, the chimney fan must be installed with an approved flange. See the installation guide below. Step Action Illustration The flange must be placed so that the spigot goes into the chimney! Measure the diameter of the hole in the flange.
  • Page 17 3112003_RSHT_UK Fixate the flange to the chimney fan with the use of the vibration dampers supplied with the flange. RS og RSHG RS og RSHG RS og RSHG RS og RSHG RS og RSHG The fan assembly can now be fitted onto the steel chimney.
  • Page 18 Your energy. Optimized. Use the safety wire to secure the fan to the chimney. Apply the supplied self-cutting screw in steel chimney. Then mount the wire through the designated hole in the base plate and into the wire lock. Tighten the safety wire slightly and then tighten the wire lock, so that the chimney fan is secured when opened for service and cleaning purposes.
  • Page 19: Multiple Fans On Chimney

    If two or more fans are required to create suffi- cient draft, a special adapter plate is required (not an Exodraft part). The two holes in the plate should match the throat diameter of the fan model used and the distance from center to center should be at least equal to the fan width.
  • Page 20: Electrical Installation

    Wiring in the capacitor and repair switch box. All wiring is done at delivery except for the power supply from the mains or Exodraft control. For fastening the wires to the terminals use a slotted screwdriver, max. 3 mm wide. Push it hard, straight down into the marked slot to release the terminal.
  • Page 21: Isolation Switch

    In accordance with the provisions of the applicable EU Machinery Directive a chimney fan must always have an isolation switch fitted. The isolation switch must comply with national wiring standards, and it must be ordered separately, as it is not part of the standard Exodraft scope of delivery. Connecting...
  • Page 22: Startup And Configuration System Testing

    Make sure that no flue gases are spilling out as this can lead to carbon monoxide poisoning! After system testing, Exodraft recommends igniting your fireplace or stove. Follow the guide below for correct lighting and use of the chimney fan.
  • Page 23: Operating Pizza Oven

    Lighting: Place a few logs in the back of the dome. Before lighting the fire, turn on the fan at full speed and open the air intake completely on the dome. Note! If your Exodraft control has a boost function, please activate this. 100% Light the fire and turn on all other exhaust fans (range hoods, etc.) and make sure there is no spillage...
  • Page 24: Maintenance And Troubleshooting

    Your energy. Optimized. Maintenance and troubleshooting Care and cleaning It is extremely important to keep the flue clean from creosote and deposits as soot is the major cause of chimney fires. The top of the fan is hinged and can be opened to ensure easy cleaning of the fan. Cleaning intervals depend on the use of the fireplace.
  • Page 25: Troubleshooting

    3112003_RSHT_UK Troubleshooting Observation Problem Solution The isolation switch may be on off Check isolation switch There is no power to the fan The speed control is turned off Turn speed control on Loose electrical connection Check wiring and correct problem Loose electrical connections Check wiring and correct problems with connections.
  • Page 26: Uk Conformity Assessed

    UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: RSHT009-41, RSHT012-41, RSHT014-41, RSHT016-41 Were manufactured in conformity with the provisions of the following regulations: The Supply of Machinery (Safety) Regulations 2008...
