Summary of Contents for Exodraft CFIR
- Page 1 Chimney Fan (Inline fan) CFIR | Read and save these instructions! Your energy. Optimized.
-
Page 3: Table Of Contents
Your energy. Optimized. Chimney Fan (Inline fan) | CFIR Content Product information Scope of supply Accessories and spare parts Technical specifications Precautions and user instructions Configurations overview Mechanical installation Minimum distance Drain installation Mounting the inline fan Location/connections Vertical installation... - Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
- Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
- Page 6 Prior to servicing the product, disconnect the power and ensure that it cannot accidentally be reconnected. • Exodraft always recommends the use of a smoke alarm when a solid fuel fireplace is installed. • If the Exodraft fan system has been designed for solid fuel/multi fuel installations, please ensure that the design meets the requirements of BS EN15287-1.
-
Page 7: Product Information

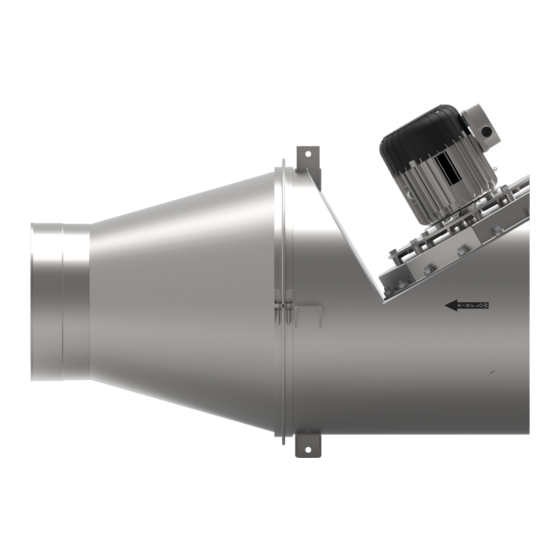

3112009_CFIR_UK Product information An Exodraft CFIR Inline fan is intended for use as a true in-line draft inducer. It can be installed in-line in the vertical or horizontal section of the fluepipe. It is specifically designed for applications where reliable and efficient operation, low noise level, low energy consumption, variable speed and compact design are critical. - Page 8 Your energy. Optimized. Warranty All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For some countries an extended period of guarantee may apply depending on either national legislation or other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or wholesaler (preferably where the Exodraft product has been bought originally).
-
Page 9: Technical Specifications
Technical specifications The CFIR Inline fan is available in four sizes. The CFIR Inline fan is an efficient, high-temperature ventilator with backward-inclined impeller of stainless steel. The ventilator housing is made of stainless steel (316L) and equipped with an energy-efficient, totally enclosed, variable speed motor with sealed and permanently lubricated bearings. - Page 10 CFIR300 CFIR200 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Volume (CMH) Frequency Inverter CFIR200 ‐ 500 Exodraft Exodraft Power Supply Voltage Isolation Type IP class item no. Frequency Inverter [kW] [VAC] switch 7400018 FRK-038 0.75 1 x 230...
- Page 11 Construction and components Motor Spacer Motor head shield Motor plate domel Motor mounting plate Insulation Insulation cover Impeller Gasket Inlet cone for impeller CFIR Inline fan U-band (x2) Flange gasket (x2) Inlet cone (nipple coupling) Outlet cone (sleeve coupling) UK | 11...
-
Page 12: Precautions And User Instructions
Your energy. Optimized. Precautions and user instructions These instructions, applicable standards and relevant safety procedures from the manufacturer must be followed and at the same time the official provisions in force in the country, where the product is installed, must be observed. ATTENTION! It is always recommended to install a CO alarm in the boiler room. -
Page 13: Configurations Overview
3112009_CFIR_UK Configurations overview A. Inlet F. Inlet Length B. Outlet G. Outlet Length C. Motor L. Build-in Length D. Housing M. Gasket E. Impeller N. U-band DETAIL J Fig , side 6 Dimensions & Weight Cone Cone U-band Gasket Model Inlet Outlet Chimney... -
Page 14: Mechanical Installation
Exodraft products must always be installed by properly qualified personnel and according to the manufacturer’s instructions. Preferably, the CFIR should be installed as close to the termination as possible. If this is not possible installation closer to the outlet of the heating appliance is also acceptable. In addition, it can be used for sidewall vented applications where it discharges through a wall. -
Page 15: Drain Installation
DETAIL Drain installation Install the provided drain if the CFIR is mounted in position B or C as shown above. The drain should be installed near the outlet of the fan and oriented so it points toward the ground. Drain, seen from below looking up. -
Page 16: Mounting The Inline Fan
Your energy. Optimized. Mounting the inline fan The CFIR has 4 x Ø10.5 mm mounting holes on each end of the fan. Threaded rods or steel hangers should run through these holes to hang the fan from the ceiling or other support. -
Page 17: Vertical Installation
It may be necessary to cross brace the fan from end to end to prevent side sway. Ensure the fan is level before permanently securing. NOTICE The CFIR is rated to operate at high temperatures and the risk of severe burns is imminent. Apply appropriate precautions to prevent hazardous situations where needed. UK | 17... -
Page 18: Electrical Installation
The power supply cable must be attached firmly to avoid contact with hot housing parts. It is recomended to install a motor over current protection device. The CFIR200, CFIR300, CFIR400 and CFIR500 is designed to be regulated through an exodraft frequency inverter and can not be connected directly to mains power. -
Page 19: Isolation Switch
3112009_CFIR_UK CFIR300, CFIR400, CFIR500 CFIR300, CFIR 400 and CFIR 500 requires 3 x 400 V AC from the factory. They can be configured for 3 x 230 V AC using the diagram below. The diagram shows the correct wiring in the connection box on the motor. -
Page 20: Startup And Configuration
Your energy. Optimized. Startup and configuration The purpose of this Exodraft CFIR inline fan is to ensure safe venting for a single appliance or multiple appliances. This can be performed via modulation, or through a single speed where modulation is not required. -
Page 21: Maintenance And Troubleshooting
The CFIR should be inspected periodically (at least once a year) for leakage, and cleaned, if needed. Preparing the inline fan for cleaning Referring to the figure below, follow these steps to open the CFIR inline fan so it can be cleaned and inspected: •... -
Page 22: Disassembly And Assembly Of Motor Section
Your energy. Optimized. Disassembly and assembly of motor section Vertical direction ttes med hånd. Motor-unit støttes med hånd. 22 | UK... - Page 23 3112009_CFIR_UK Horizontal direction Motor-unit understøttes med hånd. Motor-unit understøttes med hånd. Motor-unit understøttes med hånd. UK | 23...
-
Page 24: Troubleshooting
Your energy. Optimized. Troubleshooting Observation Problem Solution Check the power supply wires in the junction box by the fan The fan is not operating No power to the fan Check the circuit breaker Check that the fan is actually turned on Phase sequence in the power to the fan is Swap two phases between the frequency The fan is rotating backwards... -
Page 25: Uk Conformity Assessed
UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: CFIR200, CFIR300, CFIR400, CFIR500 Were manufactured in conformity with the provisions of the following regulations: The Supply of Machinery (Safety) Regulations 2008... -
Page 26: Declaration Of Conformity
EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności Exodraft a/s Industrivej 10 DK-5550 Langeskov Erklærer på eget ansvar, at følgende produkter: Veklaart dat onderstaande producten: Hereby declares that the following products: Deklarerar på... - Page 28 DK: Exodraft a/s Industrivej 10 DK-5550 Langeskov Tel: +45 7010 2234 Fax: +45 7010 2235 info@exodraft.dk www.exodraft.dk SE: Exodraft a/s Kalendevägen 2 SE-302 39 Halmstad Tel: +46 (0)8-5000 1520 info@exodraft.se www.exodraft.se NO: Exodraft a/s Storgaten 88 NO-3060 Svelvik Tel: +47 3329 7062 info@exodraft.no...
