CFIR 200-500 Inline fan
Read and save these instructions!
Draw. No.:
Format:
A3
Rev. No.:
Scale:
1:5
Sheet:
1 of 13
Title:
Material:
Weight:
0,000 kg
Dimensions:
Created by:
tbs
Last updated by:
Metric
Date:
13-06-2019
Date:
12-09-2019
Uspecified tolerances acc.:
DS/EN 22768 m
Draw. No.:
tbs
Format:
A3
Rev. No.:
Scale:
1:5
Sheet:
1 of 13
UK
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Exodraft CFIR 200
Summary of Contents for Exodraft CFIR 200
- Page 1 Metric Date: 13-06-2019 Date: 12-09-2019 Scale: Uspecified tolerances acc.: DS/EN 22768 m Sheet: 1 of 13 CFIR 200-500 Inline fan Read and save these instructions! Draw. No.: 0 kg by: tbs Format: Rev. No.: 2019 Scale: Sheet: 1 of 13...
-
Page 2: Table Of Contents
3110111 CFIR 200-500 UK 20191125 Contents Product information Function ..........3 Components . -
Page 3: Function

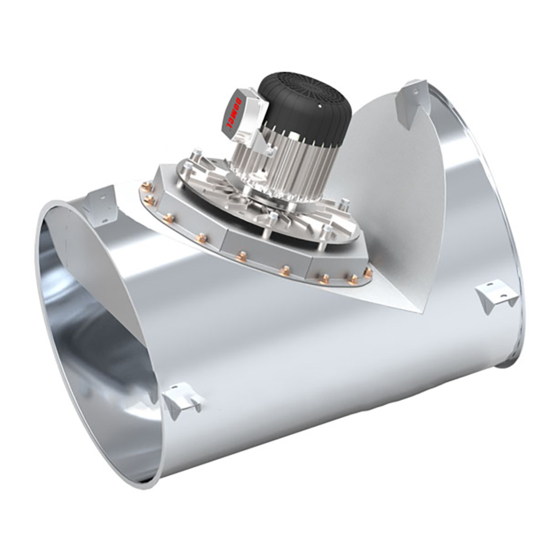

Product information Function The exodraft CFIR Inline fan is intended for use as a true inline draught inducer. It can be installed “in line” of the vertical or horizontal section of the flue. It is specifically designed for applications where reliable and efficient operation, low noise level, low energy consumption, variable speed and compact design are critical. -
Page 4: Dimensions
3110111 CFIR 200-500 UK 20191125 4 • Product information 4 • Product information Specifications Dimensions A. INLET B. OUTLET C. MOTOR E. IMPELLER AIR FLOW DIRECTION Motor data Frequency Dimensions inverter Fig , side 5 Type Voltage Power Current Voltage... -
Page 5: Capacity Diagram
3110111 CFIR 200-500 UK 20191125 Technical specifications • 5 Capacity diagram CFIR200 ‐ 500 1600 1500 1400 1300 1200 1100 1000 CFIR500 CFIR400 CFIR300 CFIR200 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 Volume (CMH) Frequency Inverter CFIR200 ‐ 500... - Page 6 6 • Mechanical Installation 3110111 CFIR 200-500 UK 20191125 Configurations A. Inlet F. Inlet Length B. Outlet G. Outlet Length C. Motor L. Build-in Length D. Housing M. Gasket E. Impeller N. U-band DETAIL J Cone Cone U-band Gasket Dimensions & Weight...
-
Page 7: General
General WARNING Failure to install, maintain and/or operate the exodraft CFIR Inline fan in accordance with the manufacturer’s instructions may result in personal injury or material damage. The CFIR must be installed by a qualified installer in accordance with these instructions and all local codes. -
Page 8: Drain Installation
8 • Mechanical Installation 3110111 CFIR 200-500 UK 20191125 Drain installation DETAIL Install the provided drain if the CFIR is mounted in position B or C as shown in Fig. 2. The drain should be installed near the outlet of the fan and oriented so it points toward the ground. -
Page 9: Vertical Installation
3110111 CFIR 200-500 UK 20191125 Electrical installation • 9 Vertical installation To mount the CFIR vertically, suspend the inline fan with steel hangers. Once the position of the power venter and hangers is finalised, attach 2 hangers through the mounting holes of the inline fan as shown in Fig. 7. Once the inline fan is level, secure the hangers. -
Page 10: General
The isolation switch must comply with national wiring standards. *Please refer to Machine Directive (2006/42/EF/-EEC/-EWG/-CEE) – Appendix 1item 1.6.3 “Separation of the sources of energy” The isolation switch must be ordered separately, as it is not part of the standard exodraft fan delivery. -
Page 11: Wiring Diagram - Cfir300, Cfir400 And Cfir500
3110111 CFIR 200-500 UK 20191125 Start up and configuration • 11 Wiring Diagram – CFIR300, CFIR400 and CFIR500 CFIR300, CFIR400 and CFIR500 require 3 x 400 V AC from the factory. They can be configured for 3 x 230 V AC using the diagram below. -
Page 12: General
General The purpose of this exodraft CFIR inline fan is to ensure safe venting for a single appliance or multiple appliances. This can be performed via modulation or through a single speed where modulation is not required. This is accomplished by starting the fan when the appliance calls for heat and stopping the fan when the heat demand has been satisfied. -
Page 13: General
Maintenance and troubleshooting General The exodraft CFIR inline fan is designed for prolonged use, and no regular maintenance is required. If the fan needs maintenance or inspection, the motor unit can be removed as illustrated in section 7.2. The CFIR should be inspected periodically (at least once a year) for leakage, and cleaned, if needed. -
Page 14: Disassembly And Assembly Of Motor Section
3110111 CFIR 200-500 UK 20191125 14 • Maintenance and troubleshooting Disassembly and assembly of motor section Vertical direction Step 1 tes med hånd. Step 2 Step 3 otor-unit støttes med hånd. - Page 15 3110111 CFIR 200-500 UK 20191125 Maintenance and troubleshooting • 15 Horizontal direction Step 1 Step 2 Step 3 Motor-unit understøttes med hånd. unit understøttes med hånd.
-
Page 16: Troubleshooting
16 • EU declaration of conformity 3110111 CFIR 200-500 UK 20191125 Troubleshooting Problem Possible cause(s) Solution The fan is not operating – No power to the fan – Check the power supply wires in the junction box by the fan. - Page 17 3110111 CFIR 200-500 UK 20191125 EU declaration of conformity • 17 Declaration of Conformity EU-Overensstemmelseserklæring EU-Conformiteits verklaring Declaration of Conformity EU-Överensstämmelsedeklaration EU-Konformitätserklärung EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności exodraft a/s C.F.
- Page 18 18 • EU declaration of conformity 3110111 CFIR 200-500 UK 20191125 NOTES:...
- Page 19 3110111 CFIR 200-500 UK 20191125 EU declaration of conformity • 19...
- Page 20 DK: exodraft a/s NO: exodraft a/s DE: exodraft GmbH C. F. Tietgens Boulevard 41 Storgaten 88 Soonwaldstraße 6 DK-5220 Odense SØ NO-3060 Svelvik DE-55569 Monzingen Tel: +45 7010 2234 Tel: +47 3329 7062 Tel: +49 (0)6751 855 599-0 Fax: +45 7010 2235 info@exodraft.no...
