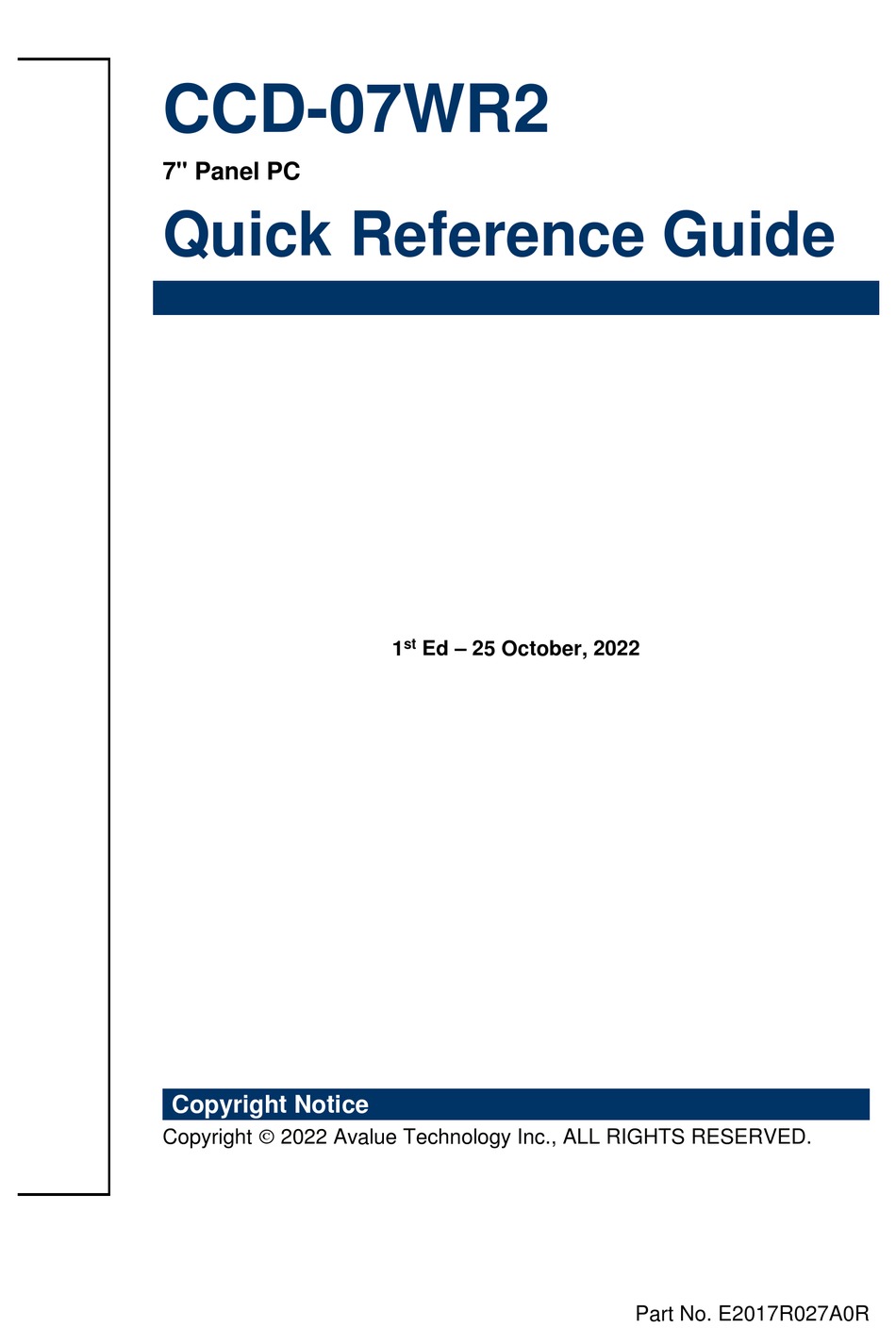

- Page 1 CCD-07WR2 7" Panel PC Quick Reference Guide Ed – 25 October, 2022 Copyright Notice Copyright 2022 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017R027A0R...
- Page 2 (2) Use only shielded cables to connect I/O devices to this equipment. (3) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 CCD-07WR2 Quick Reference Guide...
- Page 3 RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm. CCD-07WR2 Quick Reference Guide...
- Page 4 “CAUTION - Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country.” “WARNING – To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth.” 4 CCD-07WR2 Quick Reference Guide...
-
Page 5: Table Of Contents
2.3.13 Serial port 1 connector (JCOM1) ....................21 2.3.14 RTC Battery connector (JRTC) ....................21 2.3.15 LVDS connector (JLVDS) ......................22 2.3.16 MIPI Port (JMIPI) ........................23 2.3.17 Backlight connector (JLVBL) ..................... 24 2.3.18 7” Touch Panel connector (J7TP1) ................... 24 CCD-07WR2 Quick Reference Guide... -
Page 6: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x CCD-07WR2 Panel PC 1 x Power adapter ... -
Page 7: System Specifications
Amplifiers instead. But of course, after the supply chain is getting stable later on, we will follow our original specification with dual Audio Amplifiers. Mechanical Power Type 12V~24V wide voltage DC input Power Connector DC jack Type Dimension 190.86 x 123.61 x 30.5 mm Weight 0.5 kg Fanless CCD-07WR2 Quick Reference Guide... - Page 8 7. Reference IEC 60068-2-29 Testing procedures Test Eb : Bump Test Operating 1 One corner , three edges, six faces Temperature 2 ISTA 2A, IEC-60068-2-32 Test:Ed Operating Humidity 0°C ~ 40°C Storage Temperature 40°C @ 95% Relative Humidity, Non-condensing Other Test -20°C ~ 60°C 8 CCD-07WR2 Quick Reference Guide...
- Page 9 Quick Reference Guide Note: Specifications are subject to change without notice. CCD-07WR2 Quick Reference Guide...
-
Page 10: System Overview
CCD-07WR2 1.4 System Overview 1.4.1 Bottom View Connectors Label Function Note LINE-OUOT Audio line-out connector HDMI HDMI connector 2 x USB 3.0 connector RJ-45 Ethernet Reset Reset button DCIN DC power-in connector 10 CCD-07WR2 Quick Reference Guide... -
Page 11: System Dimensions
Quick Reference Guide 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) CCD-07WR2 Quick Reference Guide 11... -
Page 12: Hardware Configuration
CCD-07WR2 2. Hardware Configuration For advanced information, please refer to: 1- ACP-RK3568 included in this manual. Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 CCD-07WR2 Quick Reference Guide... -
Page 13: Acp-Rk3568 Overviews
Quick Reference Guide 2.1 ACP-RK3568 Overviews CCD-07WR2 Quick Reference Guide 13... -
Page 14: Acp-Rk3568 Connector List
LVDS connector 40 x 1 FPC, pitch 0.50 mm JLVBL Backlight connector 5 x 1 wafer, pitch 2.00 mm JSD1 Micro SD card slot 7” Touch Panel connector J7TP1 6 x 1 FPC, pitch 0.50 mm 14 CCD-07WR2 Quick Reference Guide... -
Page 15: Acp-Rk3568 Jumpers & Connectors Settings
2.3 ACP-RK3568 Jumpers & Connectors settings 2.3.1 OTG ID select (JUSBID) HOST* Client Mode * Default 2.3.2 Touch button board connector (JTB1) Signal PIN PIN Signal LED_GREEN_R LED_ORANGE_R BU_BR-_3V BU7_3V PWRBTN_3V BU_BR+_3V VOL_UP_3V VOL_DOWN_3V LINUX_SW BU1_TV_3V PWR_JTB1 CCD-07WR2 Quick Reference Guide 15... -
Page 16: General Purpose I/O Connector (Jdio1)
PIN PIN Signal DIO_GP10 DIO_GP20 DIO_GP11 DIO_GP21 DIO_GP12 DIO_GP22 DIO_GP13 DIO_GP23 DIO_GP14 DIO_GP24 DIO_GP15 DIO_GP25 DIO_GP16 DIO_GP26 DIO_GP17 DIO_GP27 I2C_2_LV_SDA I2C_2_LV_SCL +V5S_DIO 2.3.4 RS-485 connector (JRS485) Signal PIN PIN Signal 485_422TX1+ 485_422TX1- RS232_RX4 RS232_TX4 +PWR_RS485 16 CCD-07WR2 Quick Reference Guide... -
Page 17: Camera Connector (Jcam1)
Quick Reference Guide 2.3.5 Camera connector (JCAM1) Signal PIN PIN Signal USB2_HOST3_DP_R PDM_SDI1_DMIC_R USB2_HOST3_DM_R PDM_CLK1_DMIC_ +CAM_VCC +DMIC_VCC (5V level) (3V level) 2.3.6 A-MIC connector (JAMIC1) Signal AMIC_IN MIC_JD# CCD-07WR2 Quick Reference Guide 17... -
Page 18: Dc Power-In Connector (Dcin2)
CCD-07WR2 2.3.7 DC Power-in connector (DCIN2) Signal PIN PIN Signal +12V_24ADPIN +12V_24ADPIN 2.3.8 Speaker connector (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- 18 CCD-07WR2 Quick Reference Guide... -
Page 19: 10" Touch Panel Connector (J10Tp)
Quick Reference Guide 2.3.9 10” Touch Panel connector (J10TP) Signal USB2_10TP_DP USB2_10TP_DM +USB_5V_TS 2.3.10 21” Touch Panel connector (J21TP1) Signal +USB_5V_TS USB2_21TP_DM_R USB2_21TP_DP_R CCD-07WR2 Quick Reference Guide 19... -
Page 20: Sensor Connector (Jsense)
CCD-07WR2 2.3.11 Sensor connector (JSENSE) Signal PIN PIN Signal SENSE0_IRQ_R SENSE2_IRQ_R I2C3_SDA_3.3V_CONN I2C5_SDA_3.3V_CONN I2C3_SCL_3.3V_CONN I2C5_SCL_3.3V_CONN +3VS_SEN_CONN +3VS_SEN_CONN 2.3.12 Debug connector (JDBG1) Signal DEBUG_TX2_CON DEBUG_RX2_CON 20 CCD-07WR2 Quick Reference Guide... -
Page 21: Serial Port 1 Connector (Jcom1)
Quick Reference Guide 2.3.13 Serial port 1 connector (JCOM1) Signal RS232_RX3 RS232_TX3 2.3.14 RTC Battery connector (JRTC) Signal +V_BAT CCD-07WR2 Quick Reference Guide 21... -
Page 22: Lvds Connector (Jlvds)
2.3.15 LVDS connector (JLVDS) Signal PIN PIN Signal +V3.3S_LVDS +5V_LVDS +V3.3S_LVDS +5V_LVDS TXO1+ TXO0+ TXO1- TXO0- TXO3+ TXO2+ TXO3- TXO2- TXE1+ TXE0+ TXE1- TXE0- TXE3+ TXE2+ TXE3- TXE2- TXEC+ TXOC+ TXEC- TXOC- +11V2S_BL 39 +11V2S_BL 22 CCD-07WR2 Quick Reference Guide... -
Page 23: Mipi Port (Jmipi)
Quick Reference Guide 2.3.16 MIPI Port (JMIPI) Signal MDSI_A_CLKP_R MDSI_A_DN2_R MDSI_A_DP2_R MDSI_A_DN3_R MDSI_A_DP3_R Signal +3VS_DSI +3VS_DSI +3VS_DSI DSI_RESET#_3V3 PANEL_LEDK MDSI_A_DN0_R MDSI_A_DP0_R PANEL_LEDK PANEL_LEDK MDSI_A_DN1_R MDSI_A_DP1_R MDSI_A_CLKN_R PANEL_LEDA PANEL_LEDA PANEL_LEDA CCD-07WR2 Quick Reference Guide 23... -
Page 24: Backlight Connector (Jlvbl)
CCD-07WR2 2.3.17 Backlight connector (JLVBL) Signal +11V2S_21BL +11V2S_21BL EN_BL PWM_BL 2.3.18 7” Touch Panel connector (J7TP1) Signal +USB_5V_TS USB2_7TP_DM USB2_7TP_DP 24 CCD-07WR2 Quick Reference Guide...
