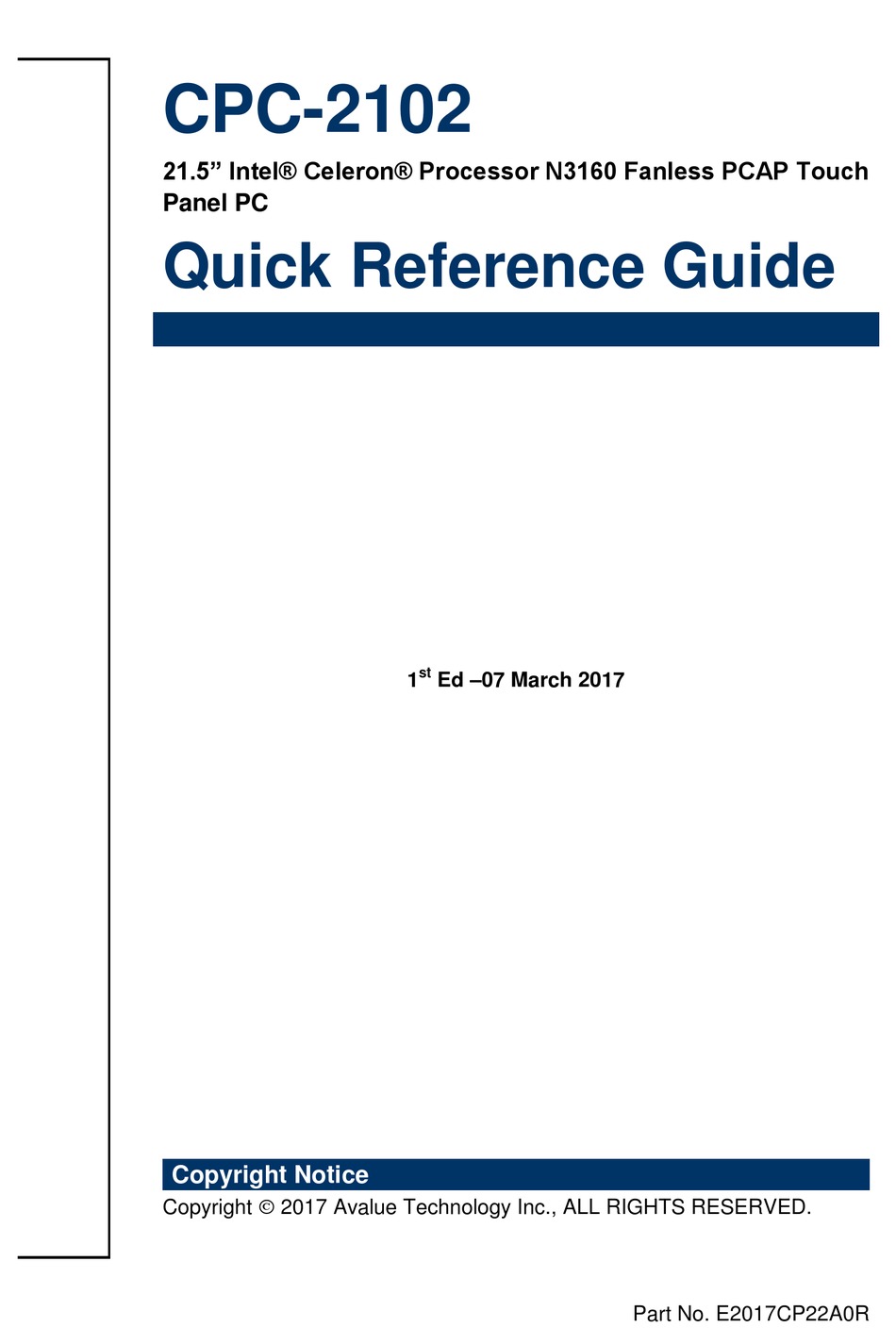

- Page 1 CPC-2102 21.5” Intel® Celeron® Processor N3160 Fanless PCAP Touch Panel PC Quick Reference Guide Ed –07 March 2017 Copyright Notice Copyright 2017 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017CP22A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
-
Page 3: Table Of Contents
Front View ............................ 8 1.4.2 Rear/Side View ..........................8 System Dimensions ..................... 10 Hardware Configuration ................... 11 CPC-2102 connector mapping ................12 2.1.1 Serial port connector (COM) ...................... 12 2.1.2 VGA connector (VGA) ........................ 12 Installing Hard Disk ....................13... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x CPC-2102 21.5” Intel® Celeron® Processor N3160 Fanless PCAP Touch Panel PC Other major components include the followings: ... -
Page 5: System Specifications
Right Side IO: 1 x USB Expansion Slots Left Side IO: 1 x COM Mechanical Power Type +12V DC in Power Connector Type DC Jack Dimension 528 x 345 x 62 mm Weight 8.4 kg CPC-2102 Quick Reference Guide... - Page 6 Bump Test 1. Wave form：Half Sine wave 2. Acceleration Rate：10g for operation mode Mechanical Shock Test 3. Duration Time：11ms 4. No. of Shock：Z axis 300 times 5. Test Axis: Z axis 6. Operation mode 6 CPC-2102 Quick Reference Guide...
- Page 7 0°C ~ 40°C (32°F ~ 104°F), ambient w/ air flow Operating Humidity 0 ~ 90% Relative Humidity, Non-condensing Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Note: Specifications are subject to change without notice. CPC-2102 Quick Reference Guide...
-
Page 8: System Overview
CPC-2102 1.4 System Overview 1.4.1 Front View 1.4.2 Rear/Side View 8 CPC-2102 Quick Reference Guide... - Page 9 HDMI connector HDMI VGA connector 3 x USB2.0 connector USB 2.0 USB 3.0 2 x USB3.0 connector RJ-45 Ethernet LINE OUT Line-out audio jack Mic-in audio jack MIC IN Serial port connector S/PDIF Sony/Philips Digital Interface CPC-2102 Quick Reference Guide...
-
Page 10: System Dimensions
CPC-2102 1.5 System Dimensions (Unit: mm) 10 CPC-2102 Quick Reference Guide... -
Page 11: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EMX-BSWB User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw CPC-2102 Quick Reference Guide 11... -
Page 12: Cpc-2102 Connector Mapping
2.1 CPC-2102 connector mapping 2.1.1 Serial port connector (COM) Signal PIN PIN Signal NDCD# NDSR# NRXD NRTS# NTXD NCTS# NDTR# NRI# 2.1.2 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK 12 CPC-2102 Quick Reference Guide... -
Page 13: Installing Hard Disk
2.2 Installing Hard Disk Step1. Unfasten 6 screws of the back cover and take it off. Step2. Secure HDD by means of 4 screws. Step3. Re-assemble your system back through previous steps to complete the installation. CPC-2102 Quick Reference Guide 13...
