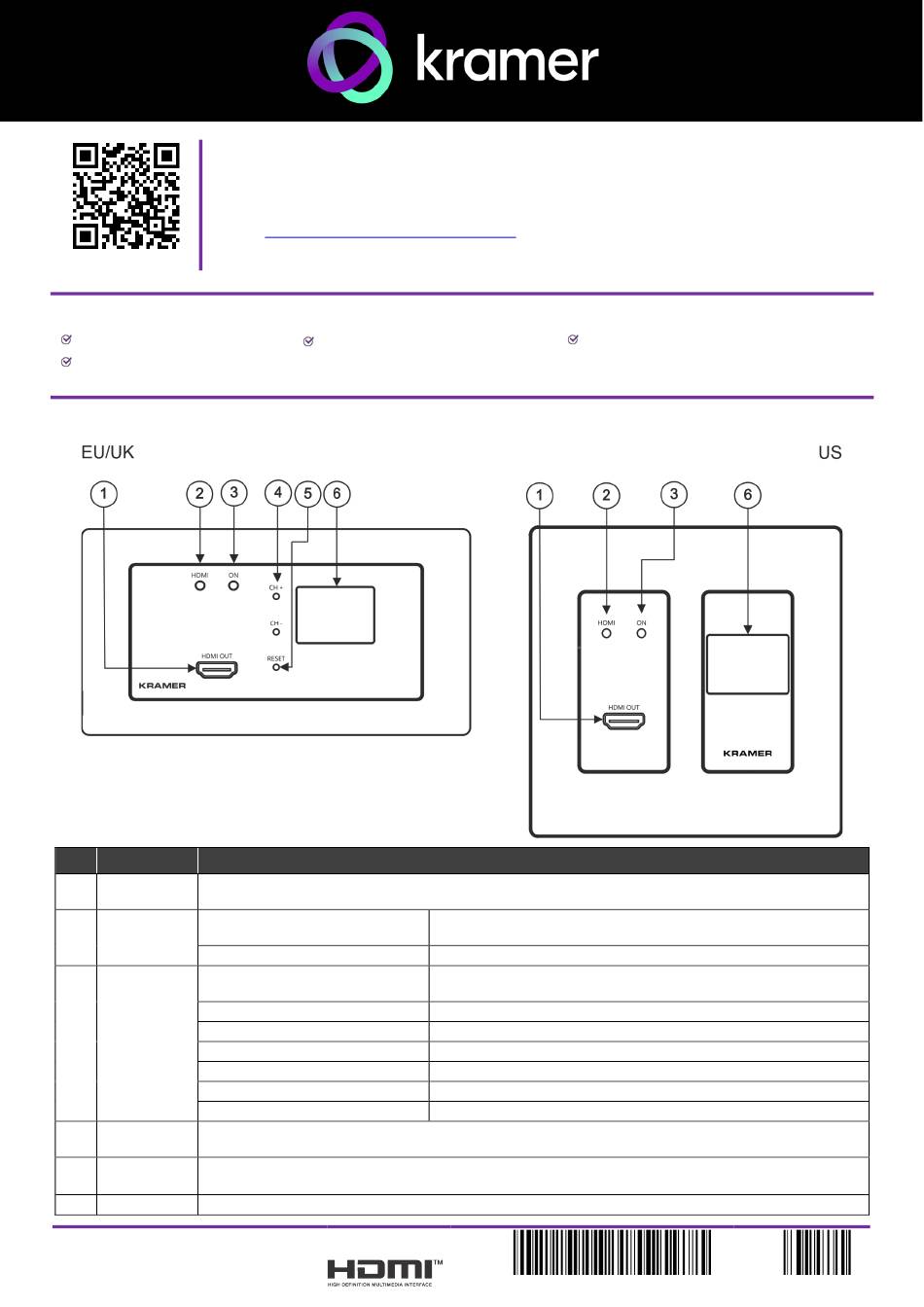

Kramer WP-DEC7 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
WP-DEC7 4K AVoIP Decoder
1 Quick start guide
Step 2: Get to know your WP-DEC7
# Feature Function
1 HDMI OUT Connect to an HDMI acceptor.
Connector
2 HDMI LED Lights Green
Flashes Green
3 ON LED Flashes Red
Lights Green
Flashes Green slowly
Flashes Green fast
Flashes Green very fast (for 60sec) A device identification command is sent (Flag me).
Lights Yellow
Lights Red
4 CH+ / CH- Click the recessed CH buttons to configure the channel ID. The channel ID will show in the LCD display.
On the US model, access to these buttons requires removal of the frame.
5 RESET Press and hold for 10 seconds to reset the device to its factory default values. All LEDs flash.
On the US model, access to this button requires removal of the frame.
6 Display Panel Shows the number of the ethernet channel on which the device is receiving the signal.
WP-DEC7 Quick Start
WP-DEC7 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/WP-DEC7
upgrades are available.
Frame (or frame set) and faceplate
WP-DEC7 for the first time.
to download the latest user manual and check if firmware
Installation accessories
A link has been established with an encoder which is transmitting A/V
signals.
A signal is established, and a problem is detected.
On fallback address acquiring, device 'ON' LED flashes continuously
in slow 0.5/10sec cadence.
When power is on.
Device is in standby mode.
FW is downloaded in the background.
Device falls back to default IP address.
Security is blocking IP access.
P/N: 2 9 0 0 - 3 0 1 5 8 2 QS Rev: 3
