- Page 1 Quick Start Guide MIMXRT685-EVK Evaluation kit for the i.MX RT600 family of crossover MCUs 300 MHz Arm Cortex -M33 MCU ® ® 600 MHz Tensilica Hi-Fi 4 DSP ® 4.5 MB SRAM, Dedicated 128KB/96KB DSP TCM/Cache High-Speed Octal/QuadSPI for Execute-in-Place Arrow.com.

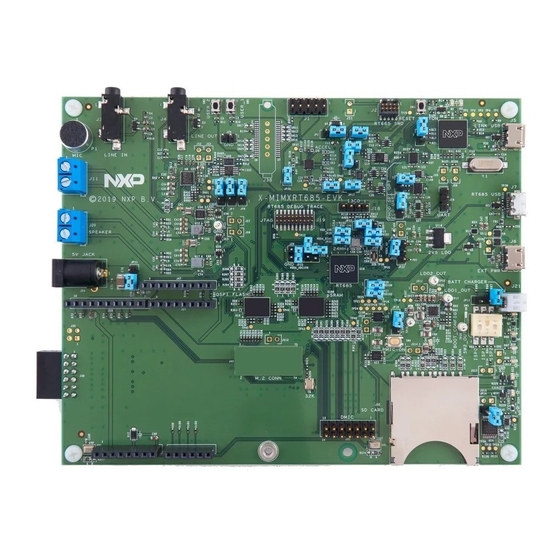

- Page 2 Quick Start Guide GET TO KNOW THE MIMXRT685-EVK BOARD i.MX i.MX i.MX i.MX RT685 RT685 Audio Jack Audio Jack Audio Jack Audio Jack Accelerometer Accelerometer RT685 RT685 SWD Reset Reset LINE IN LINE IN LINE OUT LINE OUT Link USB J5...
- Page 3 HOW TO GET STARTED Connect the MIMXRT685-EVK board to a PC using the included micro USB cable to Link USB J5. The power LED, D11, will illuminate. The MIMXRT685-EVK board comes pre- programmed with a demo. To verify the demo is running, LED D9 will blink on/off.
- Page 4 Download installation of phone numbers within your region. software and documentation at WARRANTY www.nxp.com/MIMXRT685-EVK. Visit www.nxp.com/warranty for complete warranty information. www.nxp.com NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
