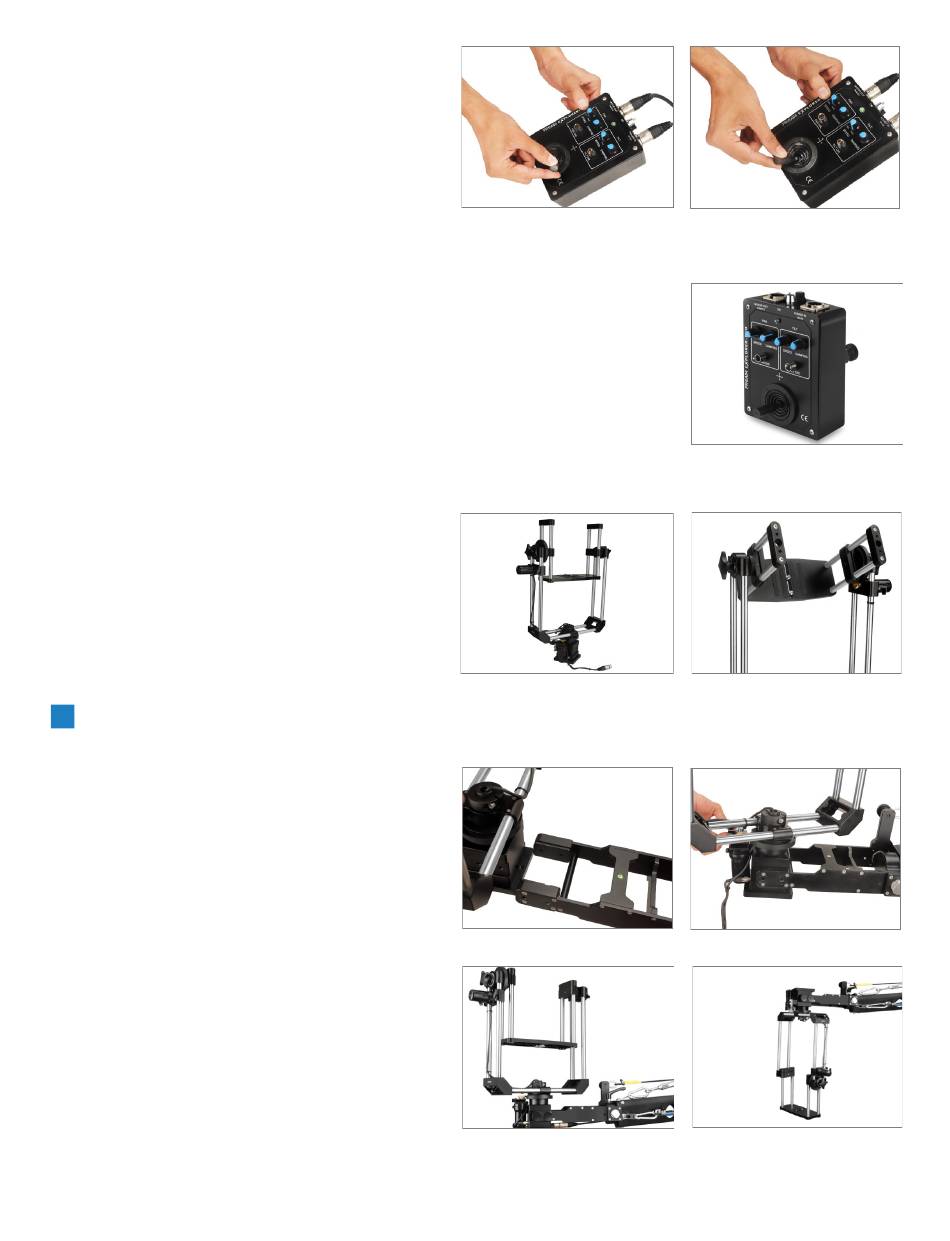

Pan Tilt Setup - PROAIM Explorer Pro PT-EXPR-02 Assembly Manual

•
To change the direction of the Pan, move the
joystick left-right, and to change the direction
of the tilt, move the joystick up-down.
NOTE: Joystick remote controller provides a
great range of pan and tilt speed control with
an excellent rotation for a complete revolution
in any axis.
NOTE: Speed Controller -The Speed Controller
adjusts the speed of pan & tilt based on the
requirement of the shot.
Damping Control -Damping control prevents
the Head from stopping with a jerk enabling
you to achieve smooth endings.
Pan-Tilt Direction -You can reverse the panning
& tilting direction as & when required.
NOTE: This 2-Axis pan-tilt head facilitates
effortless continuous 360° rotation on both
horizontal and vertical axis that gives the
operator full freedom to capture any desired
angle.

Pan Tilt Setup

•
Properly slide the Pan Tilt into the jib as
shown in the image.
•
Set the direction of the Pan Tilt (Upward/
Downward) according to your requirement.
4
