Sr. Pan-Tilt Head with 12V Joystick Control (PT-SR)

A s s e m b l y M a n u a l

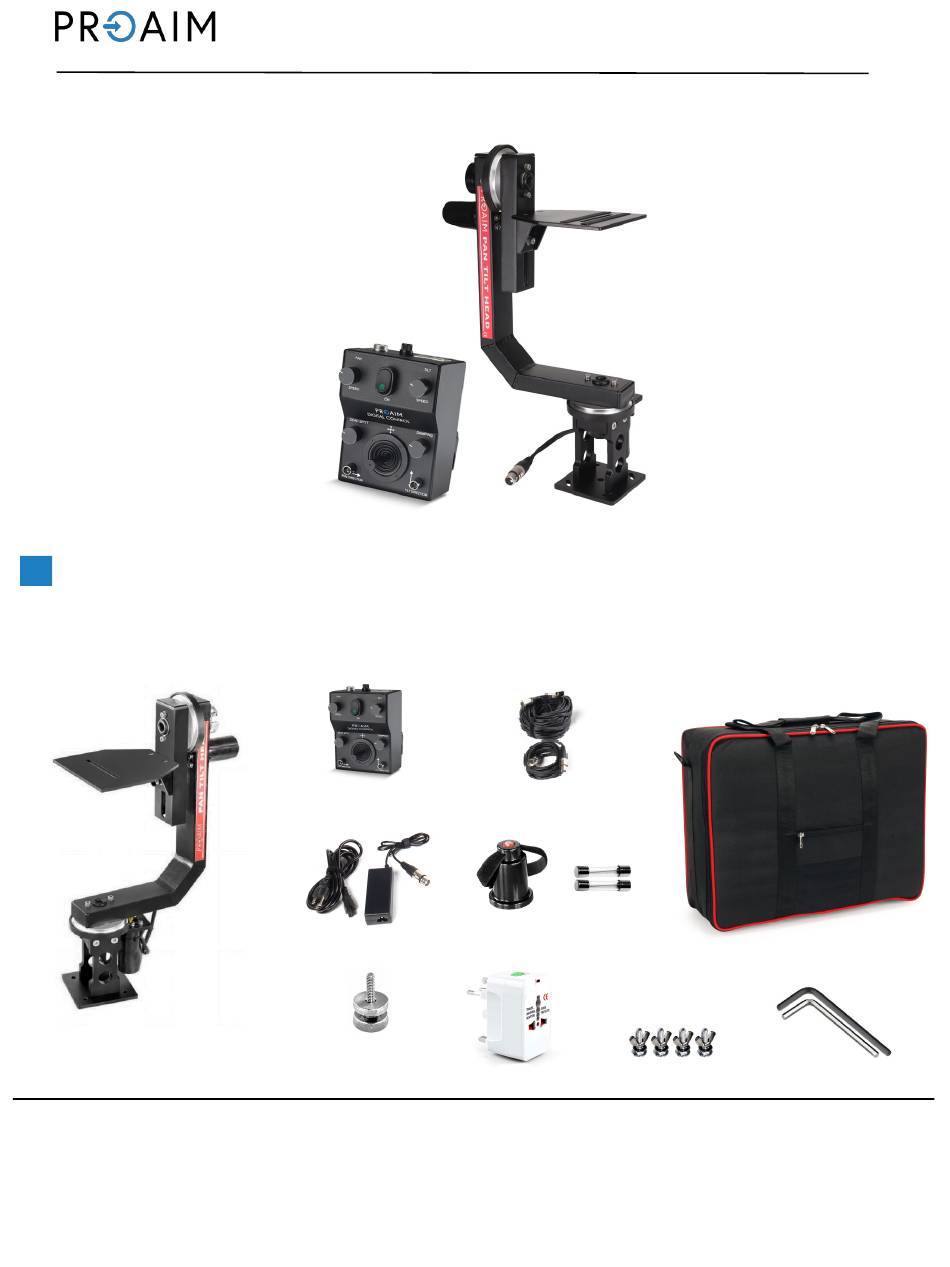

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

3 mtr Cable,15 mtr XLR Cable

12V Joystick Controller

2 x Fuse

Safety cap

Storage Bag

12V AC Adapter

MS Check nut

Sr. Pan-Tilt Head

(Size:-1/4)

4 x Wings Nuts

2 x L-Type Allen key

Universal Adapter

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Need help?

Do you have a question about the PT-SR and is the answer not in the manual?

Page 1 Sr. Pan-Tilt Head with 12V Joystick Control (PT-SR) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Parts of Pan-Tilt Head 11. Dead Spot 1. Gear for Tilting Movement 12. Tilt Damping 2. Gear for Panning Movement 3. 12V Motor for Panning Movement 13. Pan Direction 14. Tilt Direction 4. 12V Motor for Tilting Movement 15. 4-Pin Power out to Head 5.
Page 3  Install 12 volt AC adapter (4 pin XLR) in the socket of Joystick Box. NOTE: Any 12 volt battery may operate this Pan Tilt Head as long as the Connector and the #1 Negative pin & #4 Positive pin of Cable meet together.
Page 4 Linear or Logarithmic Taper Joystick Control All joysticks are linear, meaning that each degree of movement of the stick correlates to the output. On the 12 volt Pan Tilt Head, half deflection of joystick means approximately 6 volts is sent to the motors. But with the advent of Digital, we can now control the taper of joystick, making in Logarithmic as well.
Page 5: Operation
 For inverted use, disconnect the leads to the motors, rotate the control box 180° and re-install. NOTE: Always watch the cables for binding. YOUR PROAIM SR. PAN-TILT HEAD ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase.
