PROAIM P-TRK-12 Assembly Manual

12ft straight aluminum track

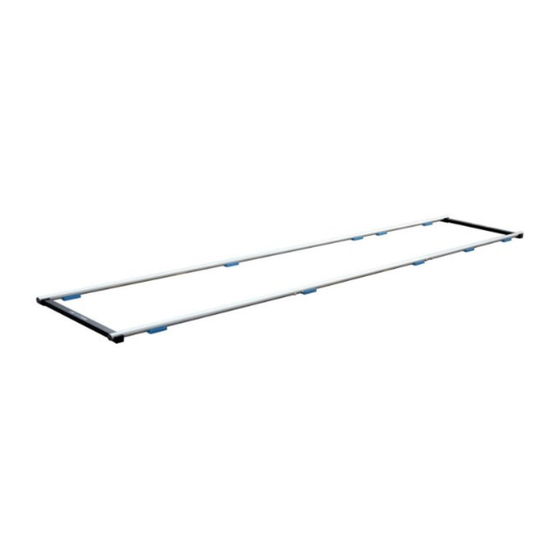

12ft Straight Aluminum Track

(P-TRK-12)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

2x 4' Central Sections (32mm dia)

4x 4' Extension Sections

2x Track Stoppers

10x Black

10x Blue Track

Wedges

Feet

Storage Bag

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the P-TRK-12 and is the answer not in the manual?

Page 1 12ft Straight Aluminum Track (P-TRK-12) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Track Setup  Using sections with attached nylon bushings remove the outboard set of screws.  Slide an extension section on to each end to complete a 12’ run and install and tighten the screws to secure.  Attach Track Stoppers and Track Feet to track for it’s rigidity and to prevent your Dolly from running off rails.
