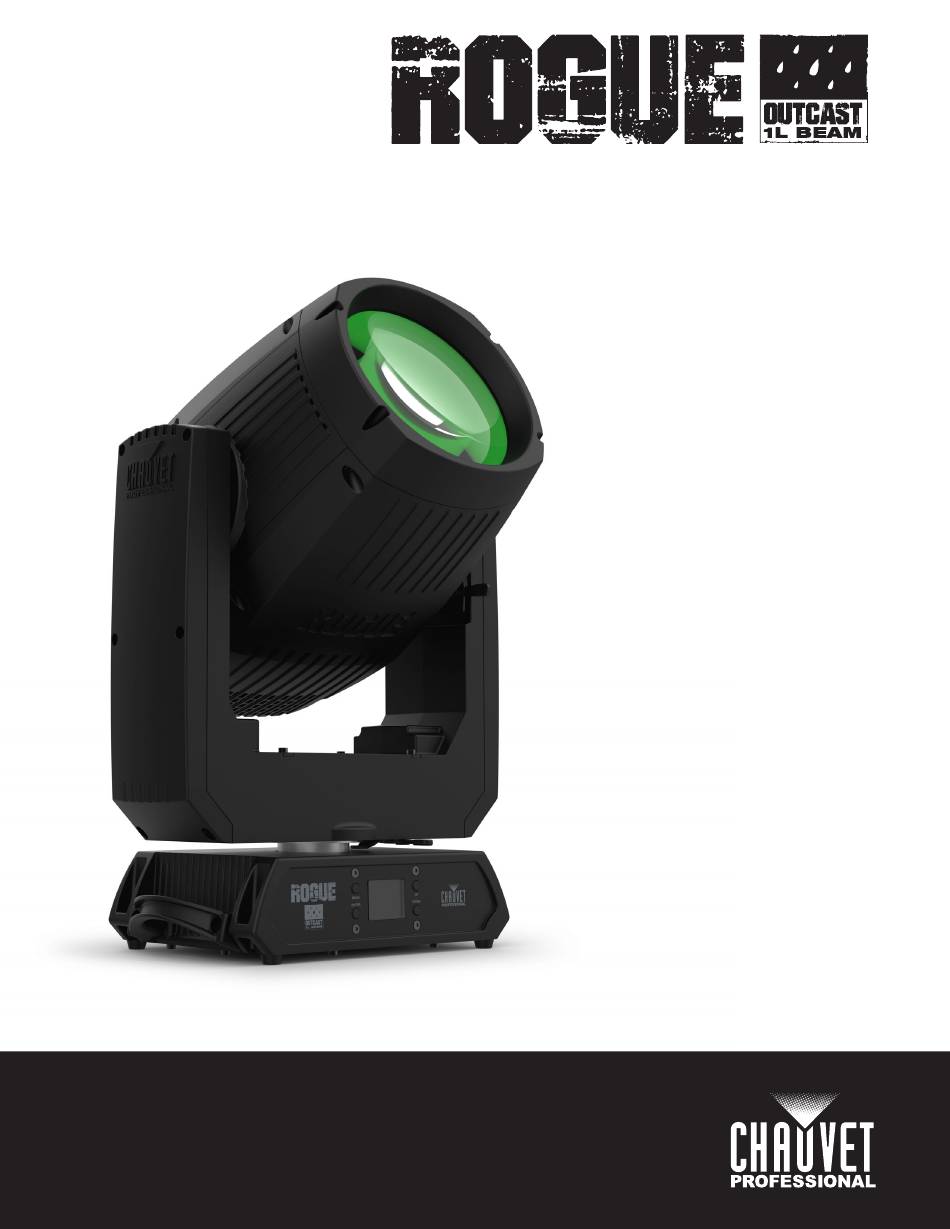

- Page 1 User Manual Model ID: ROGUEOUTCAST1LBEAM...
- Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com Document Revision This is revision 2 of the Rogue Outcast 1L Beam User Manual. Go to www.chauvetprofessional.com the latest version. Rogue Outcast 1L Beam User Manual Rev. 2...
-
Page 3: Table Of Contents
Setup......................Pan Reverse ...................... Tilt Reverse ......................Screen Reverse ....................Pan Angle......................Tilt Angle ......................BL.O. P/T Move....................BL.O. Color Move....................BL.O. Gobo Move ....................Backlight Timer ....................Pulse Width Modulation ..................Rogue Outcast 1L Beam User Manual Rev. 2... - Page 4 Fan Mode ......................USB Update ....................... Reset Function ....................Factory Reset Function ..................System Information ..................Offset Mode....................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Rogue Outcast 1L Beam User Manual Rev. 2...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP-rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 7: Expected Led Lifespan
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity.. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 8: Introduction

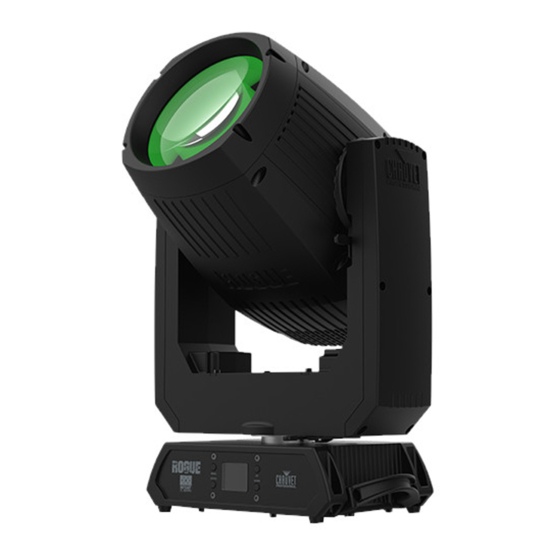

2. Introduction Description The Rogue Outcast 1L Beam is an IP65 moving head that outputs an intensely bright 140 W beam with 14-position, individually controllable color wheel for solid and split hues. The outdoor-ready unit raises the bar in dynamic effect options with its ability to focus down to a pencil-thin 1.4° beam for tight aerials, overlapping 8- and 5-facet prisms, frost for even light distribution, and 14 rotating and static gobos for even more creative options. -
Page 9: Product Dimensions
Introduction Product Dimensions 12.56 in 319mm 8.82 in 224mm 13.58 in 345mm 19.88 in 505mm 11.93 in 303mm 3.03 in 77mm 8.58 in 218 mm 11.93 in 303mm 7.56 in 192mm Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 10: Setup
Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately DMX Linking The Rogue Outcast 1L Beam can be linked to a DMX controller using a 5-pin DMX connection. If using other DMX-compatible products with this product, each can be controlled individually with a single DMX controller. -
Page 11: Usb Software Update
Setup USB Software Update The Rogue Outcast 1L Beam allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port. -
Page 12: Mounting
The Rogue Outcast 1L Beam comes with 2 Omega brackets. The user can directly attach mounting clamps (sold separately) to these omega brackets. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products. -
Page 13: Operation
2. Select ON or OFF. The product will prompt for a passcode to access the product’s main programming level when the control panel lock is activated. Enter the following passcode: <UP>, <DOWN>, <UP>, <DOWN>, <ENTER> Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 14: Menu Map
Operation Menu Map Refer to the Rogue Outcast 1L Beam product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Address 001–512 Sets the starting address 17CH Selects the DMX personality 19CH Auto Test Auto test all functions... - Page 15 Fan 1 _ _ _ _ Shows fan speed Fan 2 _ _ _ _ Base Fan 1 _ _ _ _ Shows base fan speed Base Fan 2 _ _ _ _ Rogue Outcast 1L Beam User Manual Rev. 2...
-
Page 16: Address
1. Highlight DMX, press <ENTER>. 2. Select the DMX personality 17CH or 19CH, then press <ENTER>. Make sure that the starting addresses on the various products do not overlap due to the new personality setting. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 17: Control Channel Assignments And Values
052 055 CTO 6500K 056 059 UV 060 187 Split colors 188 219 Clockwise color scroll, fast to slow 220 223 Stop 224 255 Counterclockwise color scroll, slow to fast Rogue Outcast 1L Beam User Manual Rev. 2... - Page 18 128 189 Clockwise rotation, fast to slow Rotating prism 1 190 193 Stop 194 255 Counterclockwise rotation, slow to fast 000 004 No function Prism 2 005 255 Prism index Rogue Outcast 1L Beam User Manual Rev. 2...
- Page 19 128 135 No function 136 143 Prism reset 144 151 Focus reset 152 159 All reset 160 167 No function 168 231 Frost reset 232 255 No function Rogue Outcast 1L Beam User Manual Rev. 2...
-
Page 20: Gobo Wheel
Operation Gobo Wheel The Rogue Outcast 1L Beam includes one gobo wheel with 14 fixed gobos plus open. The diagram shows the gobo number on the wheel as numbered in the Address tables. open Color Wheel The Rogue Outcast 1L Beam includes one color wheel with 14 fixed colors plus open (white), as indicated below. -
Page 21: Auto Test
2. Select ON (reverse tilt) or OFF (normal tilt), press <ENTER>. Screen Reverse To set the orientation of the display: 1. Go to the Setup main level. 2. Select the Screen Rev option. 3. Select from NO (right-side up), YES(upside-down) or AUTO. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 22: Pan Angle
1. Starting from the Setup screen level, select Reset Function. 2. Press <ENTER>. Pan/Tilt Reset This option resets the pan/tilt functions to the home position. 1. Highlight Pan/Tilt, press <ENTER>. 2. Select YES or NO, press <ENTER>. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 23: Factory Reset Function
3. Select the “zero” position to adjust, from PAN, TILT, COLOR, GOBO, GOBO ROTATE, PRISM1, PRISM2, ROTATE2, FROST, FOCUS, DIMMER, RDM4, RDM5, RDM6. 4. Adjust the “zero” position for the selected function from 000–255. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 24: Maintenance
6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 25: Technical Specifications
113 °F (45 °C) Convection I/O Connector Channel Range 5-pin XLR 17 or 19 Ordering Product Name Item Code UPC Number Rogue Outcast 1L Beam 08011930 781462222789 UL 1573 CSA C22.2 No. 166 E113093 Rogue Outcast 1L Beam User Manual Rev. 2... -
Page 26: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Rogue Outcast 1L Beam User Manual Rev. 2...
