RTH-10 Device Installation

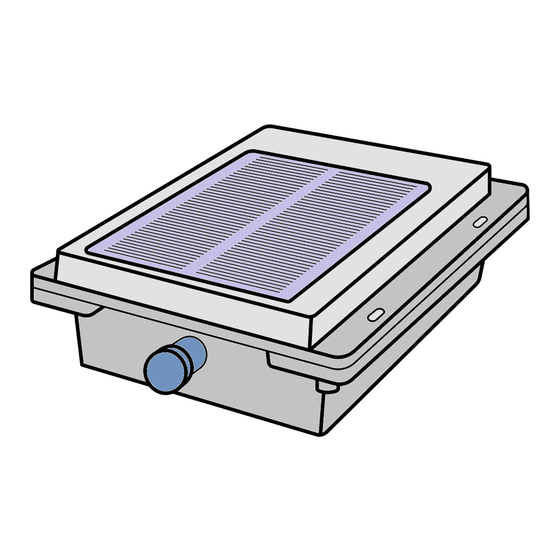

Solar Hybrid Device
*Magnetic Cradle Included
Open Wires
Device
Plug
1. Getting Started
• The Solar Hybrid device is IP67
rated, can be mounted exteriorly
or interiorly. The magnetic mount
allows it to be mounted without
hardware on magnetic surfaces.
2. Wired & Non-Wired
Installation
• Wired Installation (Recommended)
• Device will report every
30 seconds when moving
• Red Wire — 12V Power
• Black Wire — Chassis Ground
• Yellow Wire — Not Used
• Non-Wired Installation
• Device will report every 5 minutes
when moving
3. Battery Performance
• The battery is fully recharged after
8-12 hour with applied power
• The solar panel supports a continuous
charge with a few hours of sunlight
per day*
*May vary dependent on the users
geographic location
→
