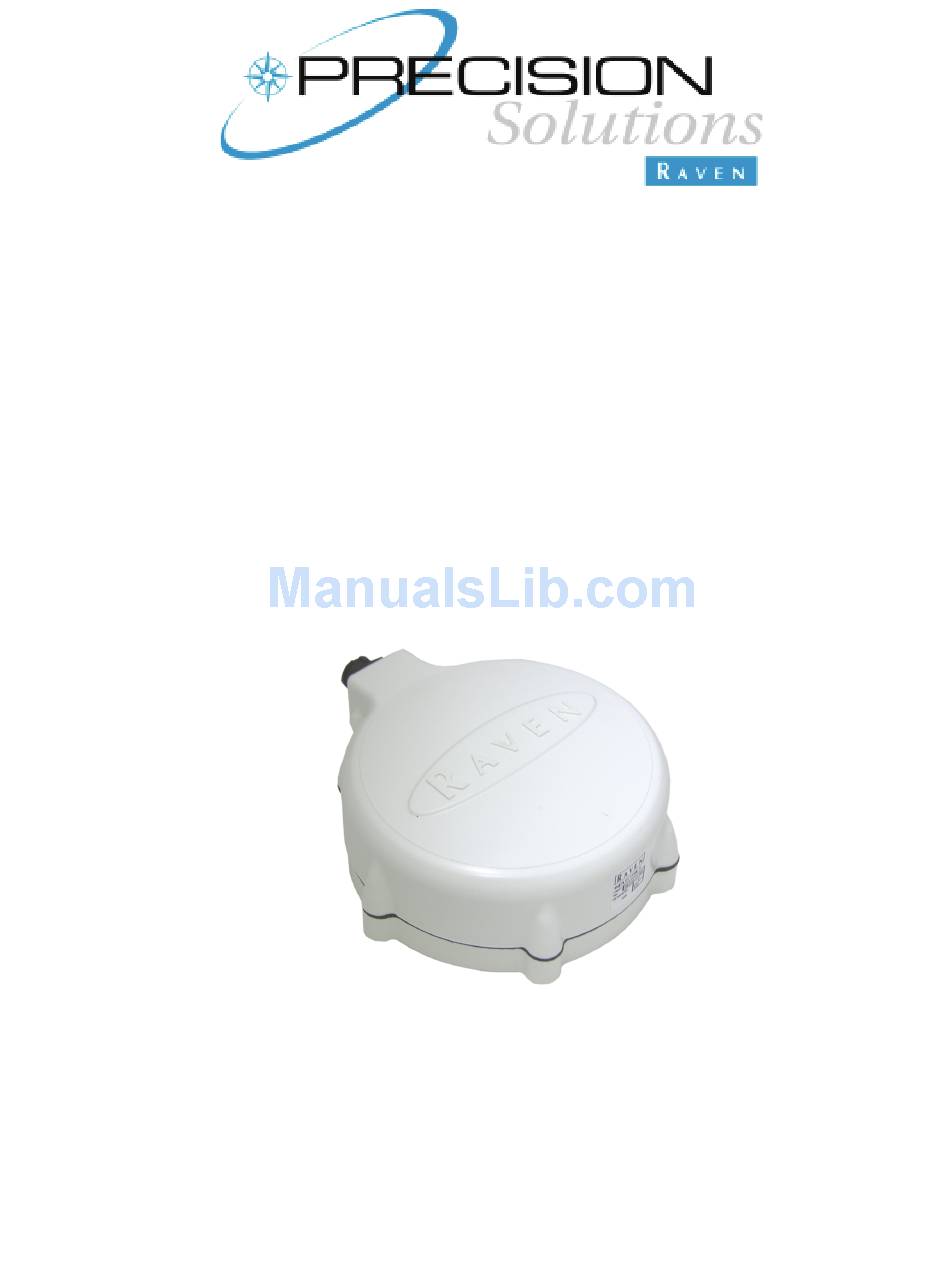

- Page 1 RPR 100G Installation and Service Manual 016-0171-002 08/05 SHEET 1 of 5...
- Page 2 Congratulations on your purchase of the Raven RPR 100G GPS Receiver. This compact, all in one unit, will provide you with the ability to log data and provide speed to your Raven controller. Setup is fast and easy and can have you in the field within a half hour, in most cases. This simple document will assist you in installing your 100G .
- Page 3 Make sure the vehicle has a clear view of the sky. Allow the RPR 100G about 15 minutes to acquire all of the satellite information. Initial start-up Both the internal GPS and WAAS receiver must perform a “cold start” the first time the system is powered up.
- Page 4 GPS ANTENNA GPS is a line of sight system, which means in order for the receiver to track the satellite, there must be unobstructed path directly to them. Buildings, trees, machinery, and human bodies are common obstructions. When locating the antenna/receiver, find a place where the antenna will have an unob- structed view of the sky.
- Page 5 PHYSICAL CHARACTERISTICS: Size: 140 mm H x 127 mm W x 53 mm D (5.5 in H x 5.0 in W x 2.1 in D) Weight: Less than 34 g (12 oz) Power consumption Power requirements: 9-16 VDC Power consumption: < 200 mA Connectors 7 pin, circular, RS232 serial ports ENVIRONMENTAL/OPERATING CONDITIONS...
