- Page 1 RPR 100S Installation and Service Manual 016-0159-940 09/03 REV A SHEET 1 of 5...

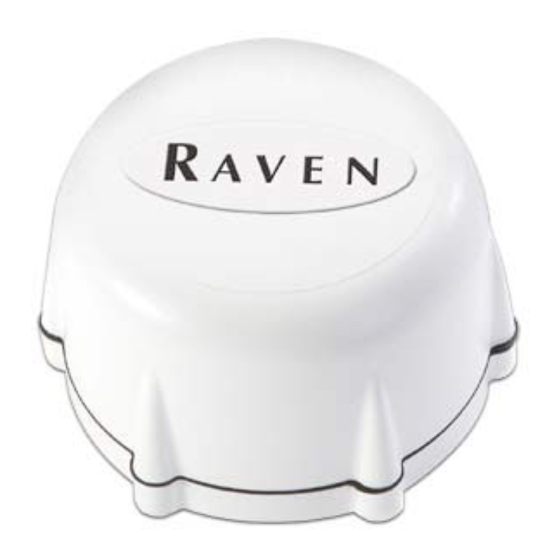

- Page 2 *Congratulations on your purchase of the Raven RPR 100S GPS Receiver. This compact, all in one unit, will provide you with the ability to log data and provide speed to your Raven controller. This receiver should not be used for guidance systems, since it is only a 1 Hz receiver. Setup is fast and easy and can have you in the field within a half hour, in most cases.
- Page 3 Make sure the vehicle has a clear view of the sky. Allow the RPR 100S about 15 minutes to acquire all of the satellite information. Initial start-up Both the internal GPS and WAAS receiver must perform a COLD START the first time the system is powered up.
- Page 4 RADAR input. The receiver is normally configured at the factory for RADAR output. To use this feature, a special cable from RAVEN will be needed if using a Raven controller. It should be noted that the GPS can only determine speed when it is navigating. If a tree line blocks too many satellites or if for some other reason the receiver is unable to navigate, then the RADAR output could become invalid.
- Page 5 PHYSICAL CHARACTERISTICS: Size: 5.5” H x 5.0” x 2.1” D Weight: Less than 12 ounces (<340g) Power consumption Power requirements: 9-16 VDC Power consumption: <200 mA Connectors 7 pin, circular, RS232 serial ports ENVIRONMENTAL/OPERATING CONDITIONS Operating Temperature: -40 to + 85 C (-40 to + 185 Relative Humidity: 99% non-condensing...
