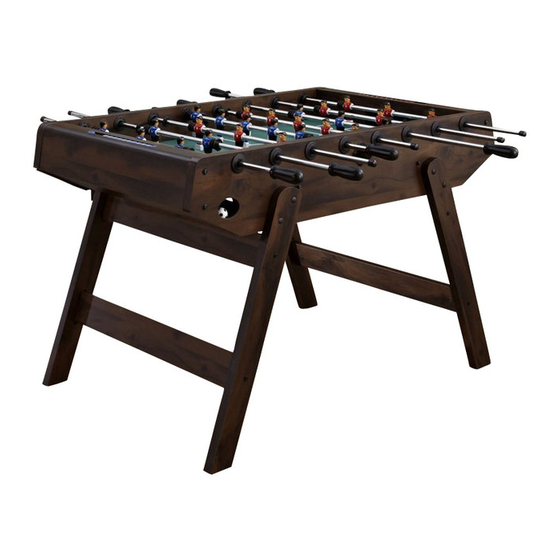

The Deluxe Foosball Table
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 88 6000 00
Summary of Contents for Home Styles 88 6000 00

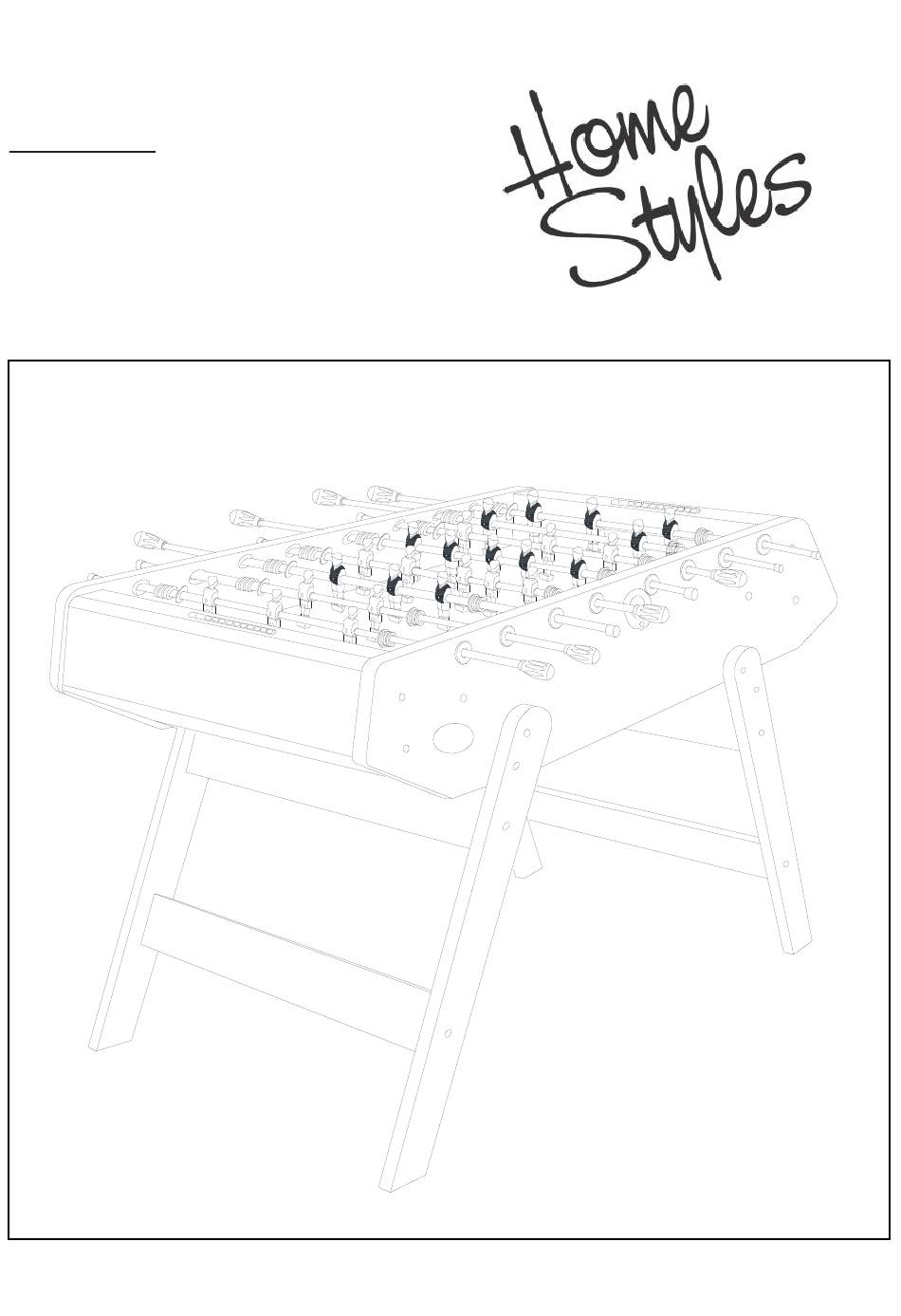

- Page 1 We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed. Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Round Head Bolt Bumper 1 Pc. 2 Pcs.(+1 extra) 12 Pcs.(+1 extra) 8 Pcs.(+1 extra) 16 Pcs. 26 Pcs.(+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 3 Assembly Instructions 3 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the floor.
- Page 4 Assembly Instructions 4 STEP 3 Slide Playing Field (C) into position. Hex Nut Flat Washer (small) Flat Head Screw (long) Flat Washer (middle) Head Cap Bolt (short) STEP 4 Attach Side Panel (A) to unit with Head Cap Bolts (short) and Flat Washers (middle). Insert Flat Head Screws (long) into the pre-drilled holes of playing field.
- Page 5 Assembly Instructions 5 Flat Head Screw (short) STEP 5 Attach Bottom Panels (D) to both ends of unit with Flat Head Screws (short). Flat Washer (large) STEP 6 Attach leg assemblies from Step 1 to unit with Flat Washers (large), Bolt Nuts and Bolts.
- Page 6 Assembly Instructions 6 Blue Score End Panel STEP 8 Attach Ball Entry Cups (H) to both sides of unit with Round Head Screws (short). (See figure 1) Slide two Three Player Rods (N), a Two Player Rod (O) and a Five Player Rod (P) into the holes in one side of unit with the Handle hole end of the player rods inserted last.
