Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2022
Table of Contents
Index
Assembly Manual

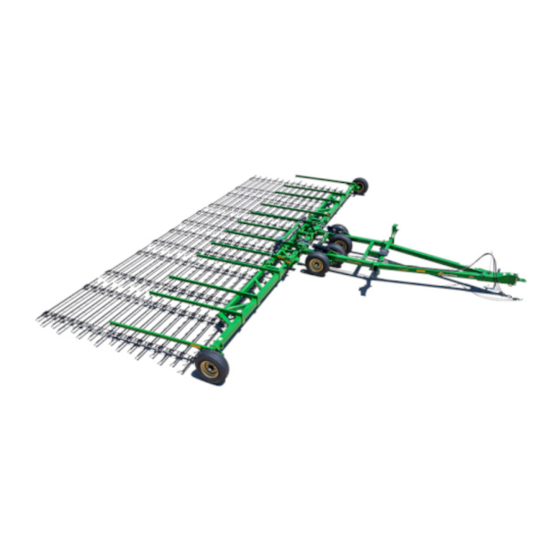

CT8300 Flex Harrow
CT8300-18 - CT8300-60
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2022-10-31
Index
TP-77051
EN
564-278Q-ENG
