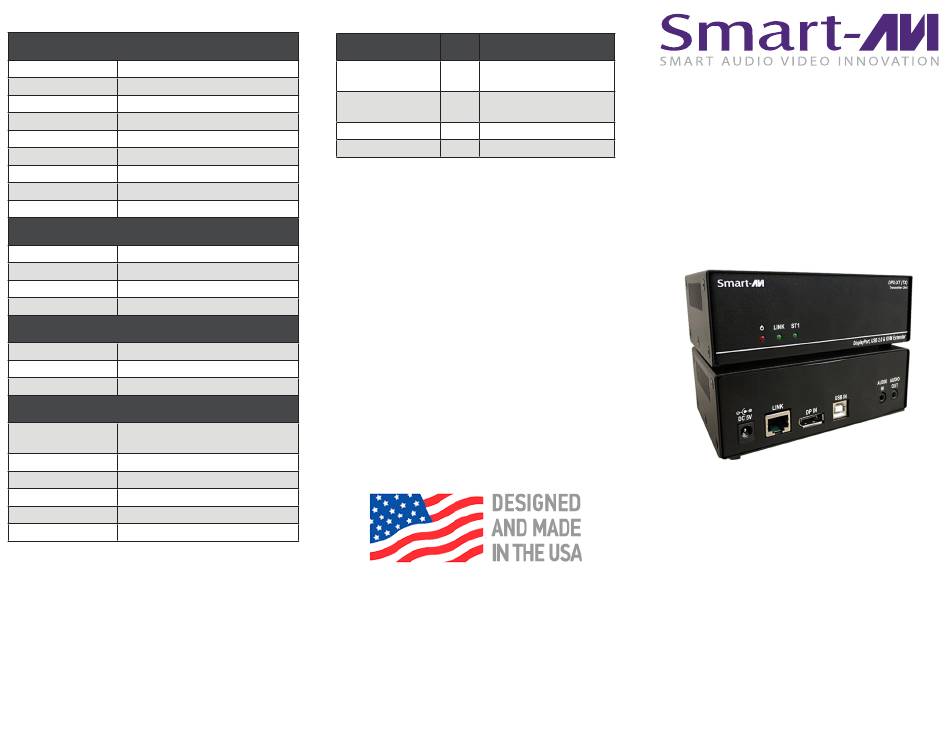

SMART-AVI DPX-XT Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Format DisplayPort 1.1 and 1.2
Video Resolution Up to 3840 x 2160 @ 30 Hz
Video Bandwidth 275 MHz
Input Interface (TX) (1) DisplayPort female
Output Interface (RX) (1) DisplayPort female
DDC via AUX
Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
AUDIO
Format Stereo
Frequency 30KHz to 80KHz
Input Interface (TX) (1) 3.5mm (Female)
Output Interface (RX) (1) 3.5mm (Female)
USB
Signal Type USB 1.1 and USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
External 100-240 VAC/5VDC4A
Power
@ 20 W
Dimensions 5.5" W x 1 7/8" H x 3 1/4" D
Weight 1 lb per TX/RX unit
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
DP, USB and Audio
DPX-XT-TX 1
CAT5/5e/6 Transmitter.
DP, USB and Audio
DPX-XT-RX 1
CAT5/5e/6 Receiver.
PS5VD3A-WMT 2 PS5VD3A Power Supply
Quick Start Guide 1
