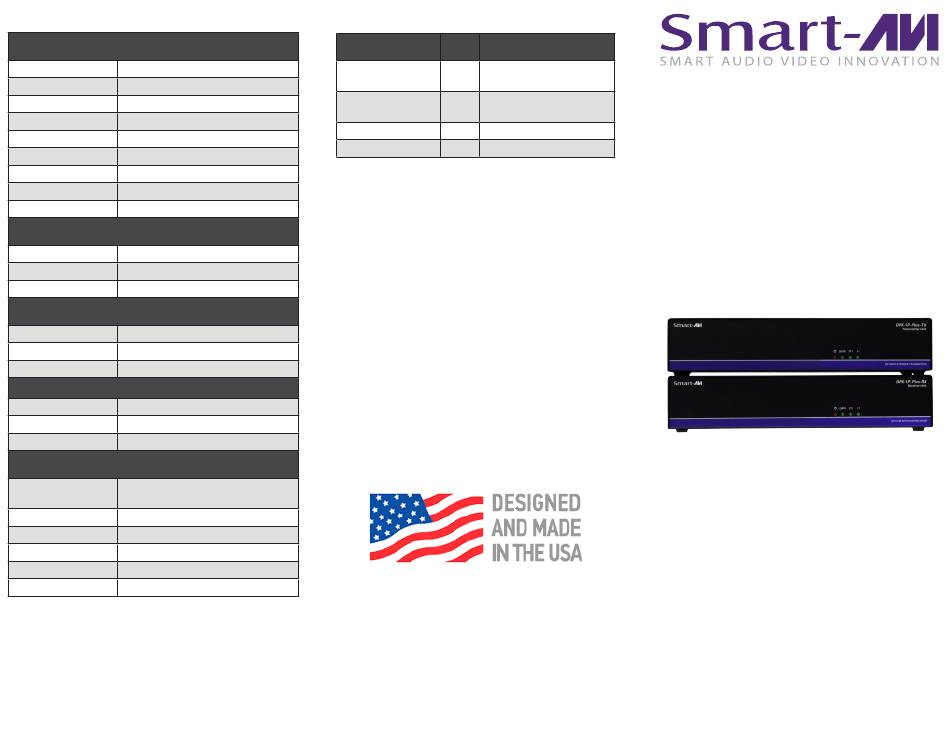

SMART-AVI DPX-1P-PLUS Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format DisplayPort 1.2
Maximum Pixel Clock 275 MHz
Input Interface (TX) (1) DP female
Output Interface (RX) (1) DP female
Resolution Up to 4K (3840x2160 @ 30Hz)
DDC via AUX
Equalization Automatic
Input Cable Length Up to 15 ft.
Output Cable Length Up to 15 ft.
AUDIO
Frequency Response 30KHz to 80KHz
Input Interface (TX) (1) 3.5 mm (Female)
Output Interface (RX) (1) 3.5 mm (Female)
USB
Signal Type USB 1.1 and USB 2.0 Compatible
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (2) USB Type A (Female)
RS-232
Input Interface (TX) DB9 (Female)
Output Interface (RX) DB9 (Female)
Flow Control Software up to 115,000 Kbps
OTHER
External 100-240 VAC/5VDC4A
Power
@20W
Dimensions 9 in W x 2 in H x 3 in D
Weight 1.45 lb per TX/RX unit
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
DP, USB, RS232 and Audio
DPX-1P-PLUS-TX 1
over CAT5e/6 Transmitter
DP, USB, RS232 and Audio
DPX-1P-PLUS-RX 1
over CAT5e/6 Receiver
PS5VD3A-WMT 2 PS5VD4A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

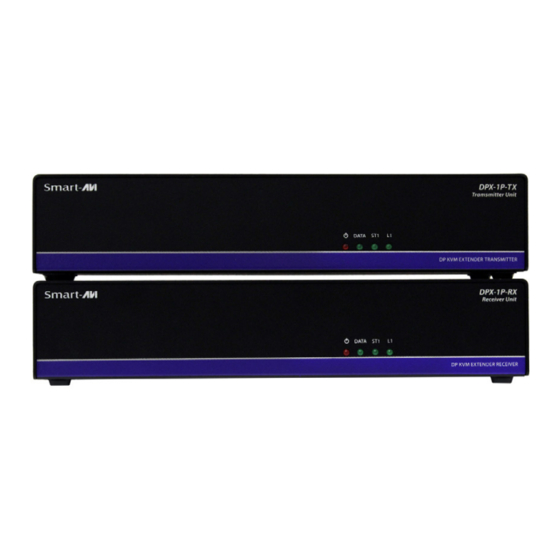

DPX-1P-PLUS
DisplayPort, USB K/M, RS232
and Audio over CAT5e/6
Extender
EXTEND DP VIDEO,
USB KEYBOARD AND MOUSE,
AUDIO, AND RS232
UP TO 328 FEET (100M) OVER
CAT5/5E/6 CABLE
Quick Start Guide
