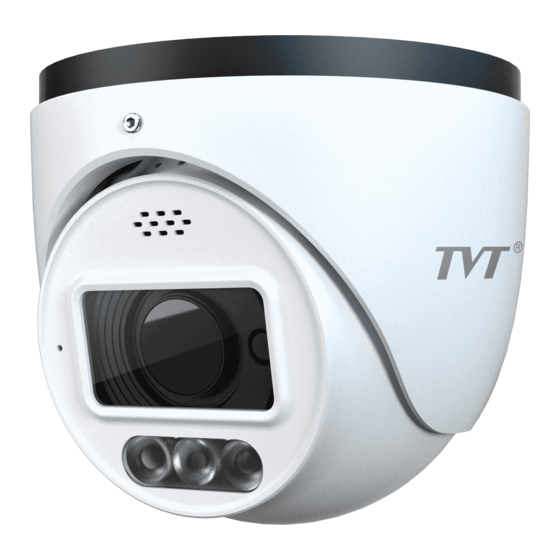

TVT TD-9545A3B-PA Quick Start Manual

Network Camera
Quick Start Guide
1
Warning and Caution
■ Please read this instruction carefully before operating the unit and keep
it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without notice.
■ If the product does not work properly, please contact your dealer or the
nearest service center. Never attempt to disassemble the camera yourself.
(We shall not be responsible for any problems caused by unauthorized
repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be strict compliance with the electrical
safety regulations of the nation and region. When the product is mounted on
wall or ceiling, the device shall be firmly fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating temperature
shall be -30˚C~60˚C), dusty or damp locations, and do not expose it to high
electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for operating
environment.
2

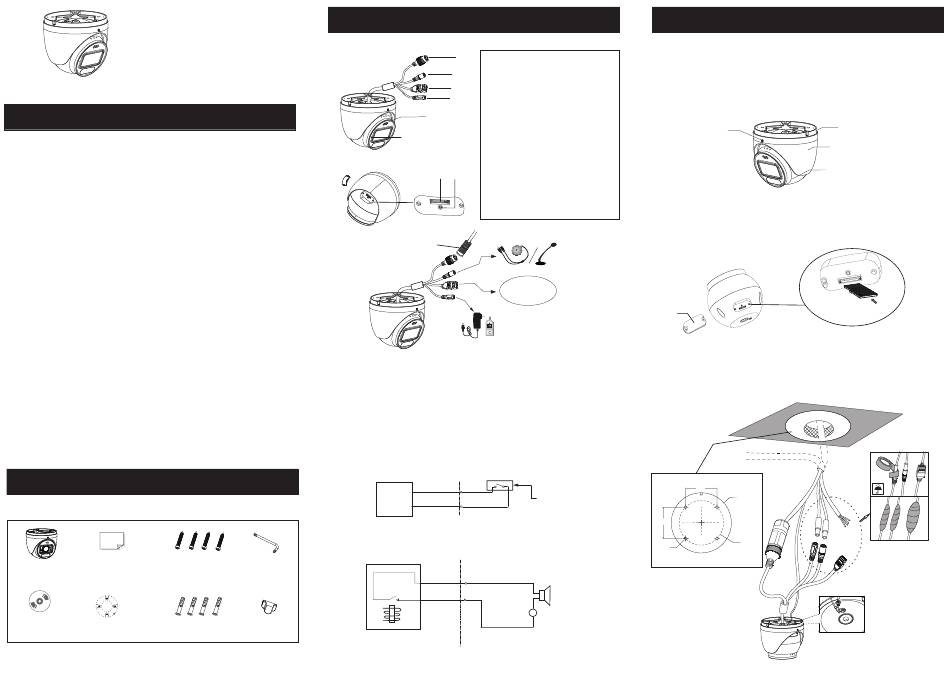

Package
Camera Quick start guide Tapping screw ×4
CD Drill template
Plastic plug
3
Overview
* 1
It is recommended to install the security cap for outdoor installation.
* 2 This series can be powered by DC 12V/PoE power supply. If the PoE switch is used to power
the camera, DC12V power supply is not required.
* 3 Press and hold the reset button for more than 10 seconds to restore to the factory default setting.
►
Connecting Alarm Input/Output
Alarm Input
IPC
Alarm output
Max. Load: 30VDC, 1A
Screwdriver
Relay
× 4 Rubber plug
IPC
1
Ethernet connector
1
2
Audio input connector
3 2
4
Alarm input/output
3
5
Power connector
4
6
Speaker
5
6 Microphone
7 8
Micro SD card slot
7
8 Reset
Security cap
1--ALARM-COM
2--ALARM_OPEN
3--ALARM_INA
4--ALARM_GND
DC12V
ALARM-INA
Alarm input device
(eg. Switch or sensor)
ALARM-GND
ALARM-OPEN
Alarm output
device
ALARM-COM
+
DC
-
4
Installation
Please make sure that the wall or ceiling is strong enough to
withstand 3 times the weight of the camera. Please install and use
the camera in the dry environment.
① Loosen the fixed screw to disassemble the camera.
Fixed Screw
② Unscrew the cover of the dome and then insert a micro SD card.
After that, install back the cover and make sure the cover is installed
firmly.
Insert a micro SD card
Cover
③ Drill the screw holes and the cable hole on the ceiling according
to the drill template. Then route and connect the cables.
(mm)
56.1
Ø107.7
56.1
Ø79.4
Ø5.0
Mounting Base
Enclosure
Dome
Earth wire connection
