TVT TD-9521E3 Quick Start Manual

Network Camera
Quick Start Guide
■ Please read this instruction carefully before operating the unit
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Do not directly touch the camera when installing.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

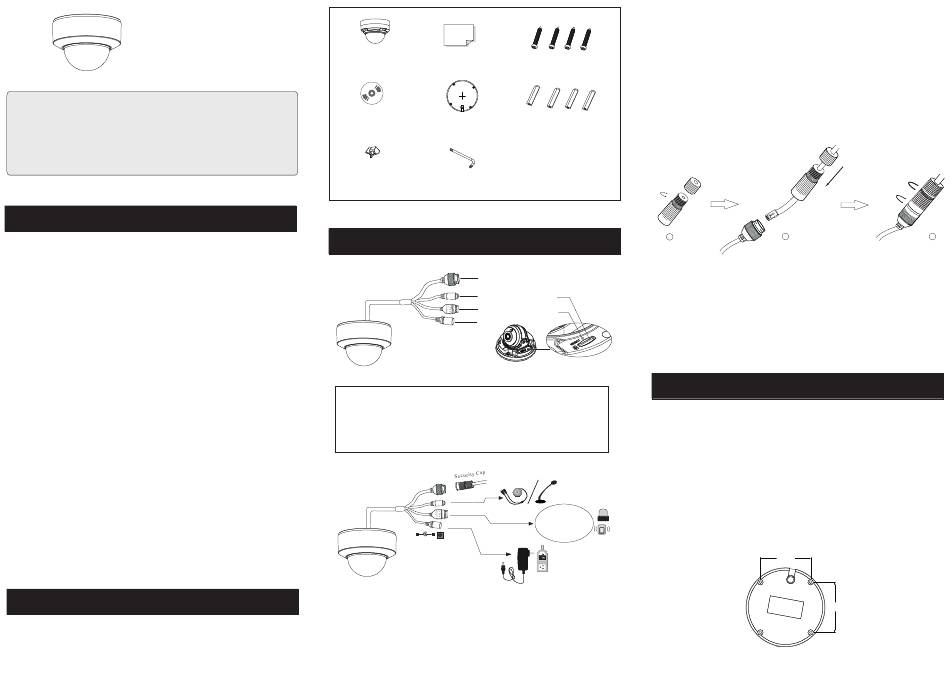

Package

Camera Quick start guide
CD
Drill template
Rubber plug
Screwdriver
3

Overview

1
2
3
4
4 Power connector
1
Ethernet connector
2 Audio input connector 5 Micro SD Card Slot
3 Alarm input/output 6 Reset
DC12V
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera, DC12V power supply is not
required.
●

Alarm Connection

Alarm Input: Join the grounding ends of the sensor and the camera and then
connect the signal cable of the sensor to the alarm input port (ALM-INA)
of the camera.
Tapping screws × 4
Alarm Output: Loosen the screws in the alarm output port. Then insert the
signal wires of the alarm output devices into the port of OPEN and COM
separately. Finally tighten the screws. Some of the external alarm output
devices need the power supply.
×4
Plastic plug
●

Connecting Network Cable

1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
5
both elements. Then crimp the cable with RJ 45 connector.
6
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
4

Installation

Please make sure that the wall or ceiling is strong enough to
withstand 3 times the weight of the camera. Please install and use
the camera in the dry environment. You'd better install back the lower
dome less than 4 hours after removing it. Do not remove the protection
film until finishing the installation.
① Attach the drill template to the place where you want to fix the camera
1--ALM-COM
and then drill the screw holes and the cable hole on the wall according
2--ALM-OPEN
3--ALM-INA
4--ALM-GND
to the drill template.
2 3
74.3
(mm)
74.3
