TVT TD-9423E3 Quick Start Manual

Network Camera

Quick Start Guide
■ Please read this instruction carefully before using the product
and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
1

Warning and Caution

■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
If the device will not be used for a long time, please cover the lens
cap to protect the device from dirt.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

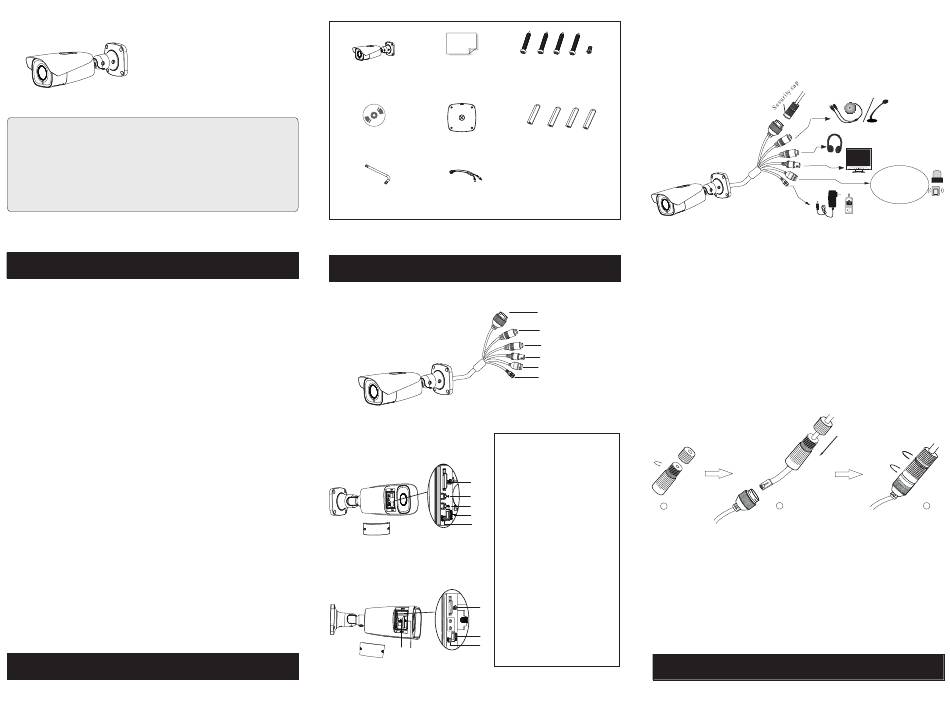

Package

4 tapping screws PA4×25
Camera
1 machine screw PWM3×5
Quick start guide
CD
Drill template
CVBS&DC
Screwdriver
IN cables
3

Overview

Type A: Motorized Zoom Camera
1
2
3
7
8A
4
9A
10
5
11
6
7
8A Zoom +
Type B: Manual Zoom Camera
9A Zoom -
8B Focus
7
9B Zoom
10
10
11
11 Reset
9B 8B
* 1
It is recommended to install the security cap for outdoor installation.
* 2 This series can be powered by DC 12V/PoE power supply. If the PoE switch is
used to power the camera, DC12V power supply is not required.
×4
Plastic plug
●

Alarm Connection

Alarm Input: Join the grounding ends of the sensor and the camera
and then connect the signal cable of the sensor to the alarm input
port of the camera.
1
Alarm Output: Loosen the screws in the alarm output port. Then
2
insert the signal wires of the alarm output devices into the port of
3
COM and OPEN separately. Finally tighten the screws. Some of the
4
5
external alarm output devices need the power supply.
6
●

Connecting Network Cable

Ethernet Connector *
Audio Input ( MIC)
Audio Output ( HP)
CVBS Video Output
1
Alarm Input/Output
Power Connector *
① Loosen the nut from the main element.
Micro SD Card Slot
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
DC IN & CVBS Interface
4

Installation

1--ALM-COM
2--ALM-OPEN
3--ALM-INA
4--ALM-GND
DC12V
2 3
