TVT TD-9525E3 Quick Start Manual

Network Camera
Quick Start Guide
■ Please read this instruction carefully before operating the
unit and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

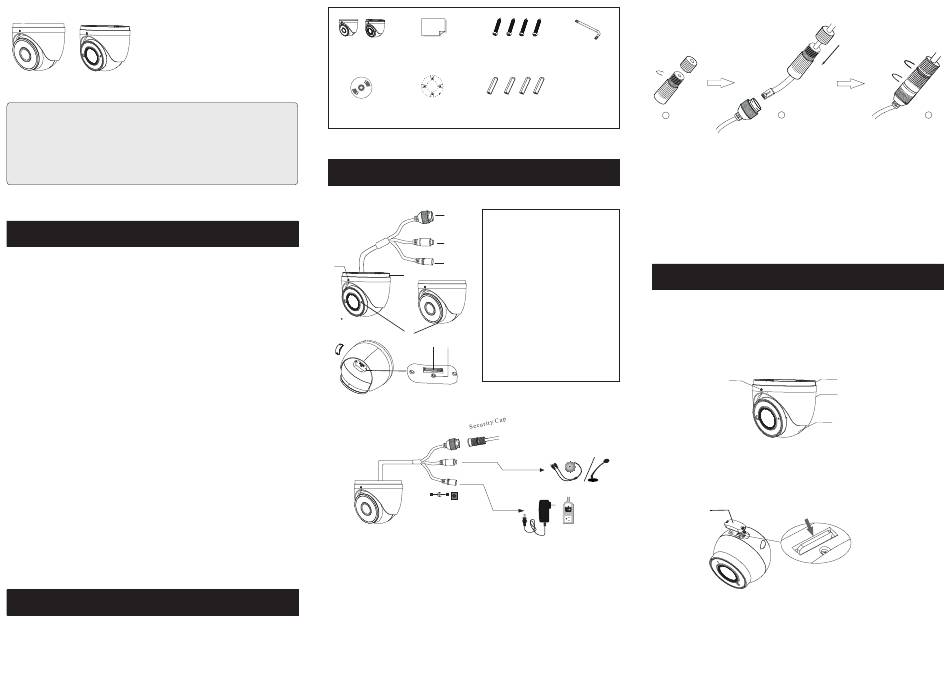

Package
or
Tapping screw ×4
Camera Quick start guide
Plastic plug
CD Drill template
3
Overview
1
1
2
2
3
3
5
4
4
5
6
6
7 8
7
8
DC12V
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera, DC12V power supply is not
required.
► Connecting Network Cable
Screwdriver
×4
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
Ethernet connector
Audio input connector
Power connector
4
Installation
Mounting base
Fixed screw
Please make sure that the wall or ceiling is strong enough to
Microphone
withstand 3 times the weight of the camera.
① Loosen the fixed screw to disassemble the camera.
Micro SD card slot
Reset
Fixed Screw
② Open the cover of the dome and then insert a micro SD card.
Cover
③ Drill the screw holes and the cable hole on the wall according to
the drill template.
2 3
Mounting Base
Enclosure
Dome
Insert a micro SD card
