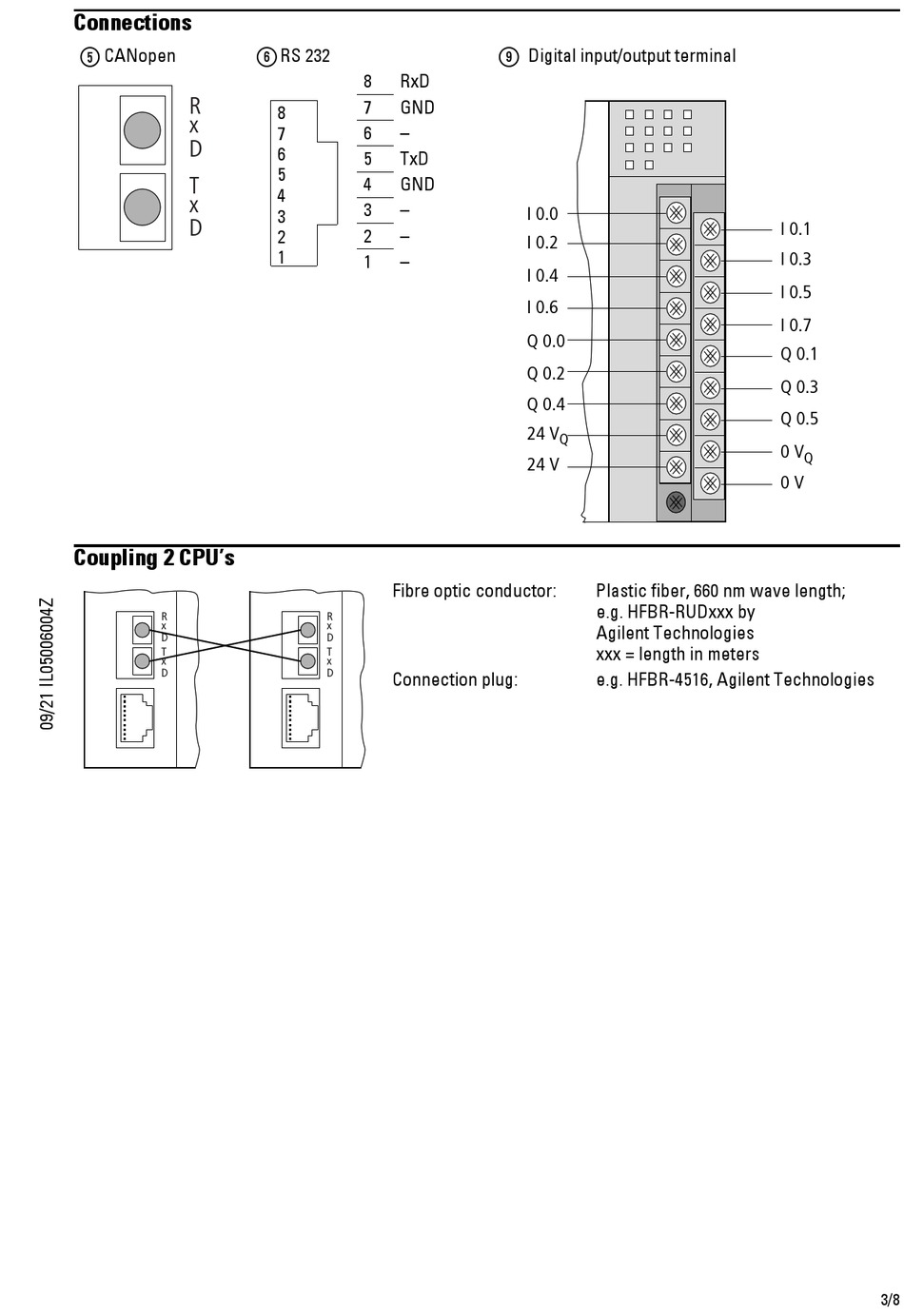

Connections

e CANopen
R
x
D
T
x
D
Coupling 2 CPU's
R
x
D
T
x
D
f RS 232
8
RxD
7
GND
8
6
7
6
5
TxD
5
4
GND
4
3
3
2
2
1
1
Fibre optic conductor:
R
x
D
T
x
D
Connection plug:
i Digital input/output terminal
I 0.0
I 0.2
I 0.4
I 0.6
Q 0.0
Q 0.2
Q 0.4
24 V
Q
24 V
Plastic fiber, 660 nm wave length;
e.g. HFBR-RUDxxx by
Agilent Technologies
xxx = length in meters
e.g. HFBR-4516, Agilent Technologies
I 0.1
I 0.3
I 0.5
I 0.7
Q 0.1
Q 0.3
Q 0.5
0 V
Q
0 V
3/8
