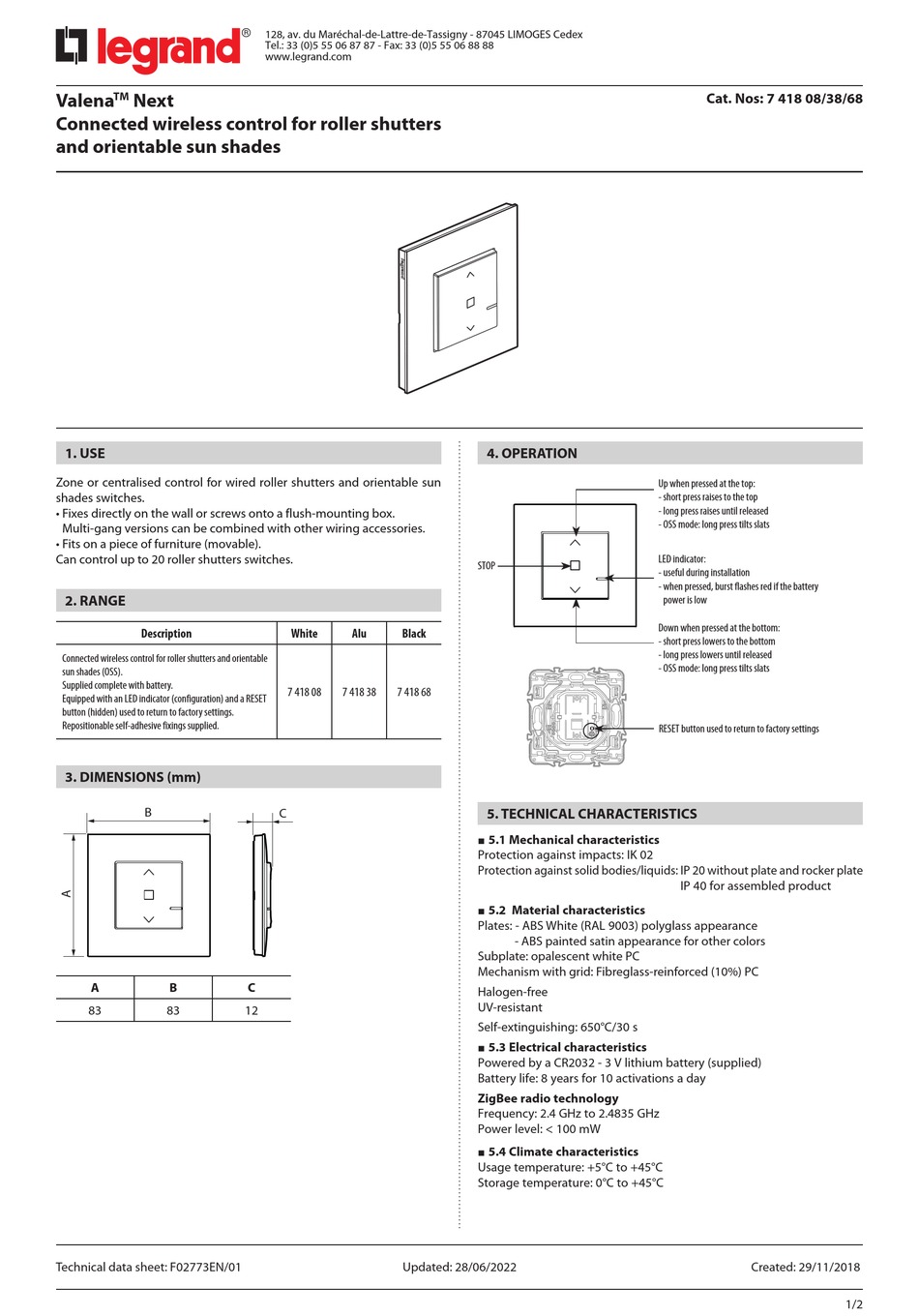

LEGRAND Valena Next Quick Start Manual

Valena Next
TM
Connected wireless control for roller shutters
and orientable sun shades
1. USE
Zone or centralised control for wired roller shutters and orientable sun
shades switches.
• Fixes directly on the wall or screws onto a flush-mounting box.
Multi-gang versions can be combined with other wiring accessories.
• Fits on a piece of furniture (movable).
Can control up to 20 roller shutters switches.
2. RANGE
Description

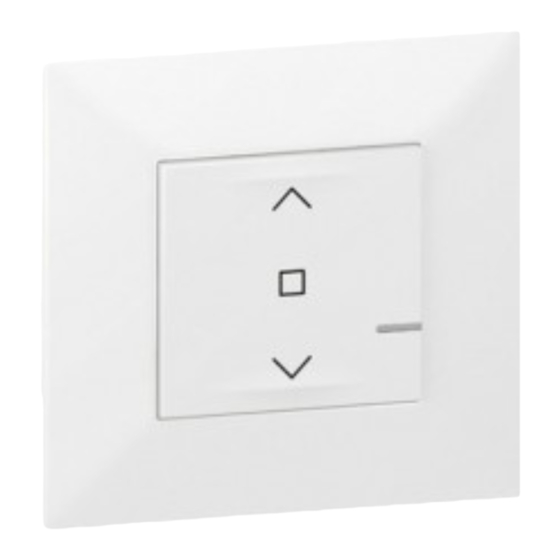

Connected wireless control for roller shutters and orientable
sun shades (OSS).
Supplied complete with battery.
Equipped with an LED indicator (configuration) and a RESET
button (hidden) used to return to factory settings.
Repositionable self-adhesive fixings supplied.
3. DIMENSIONS (mm)
B
A B
83 83
Technical data sheet: F02773EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel.: 33 (0)5 55 06 87 87 - Fax: 33 (0)5 55 06 88 88
www.legrand.com
White Alu Black
7 418 08 7 418 38 7 418 68
C
C
12
Updated: 28/06/2022
4. OPERATION
STOP
5. TECHNICAL CHARACTERISTICS
 5.1 Mechanical characteristics
Protection against impacts: IK 02
Protection against solid bodies/liquids: IP 20 without plate and rocker plate
 5.2 Material characteristics
Plates: - ABS White (RAL 9003) polyglass appearance
- ABS painted satin appearance for other colors
Subplate: opalescent white PC
Mechanism with grid: Fibreglass-reinforced (10%) PC
Halogen-free
UV-resistant
Self-extinguishing: 650°C/30 s
 5.3 Electrical characteristics
Powered by a CR2032 - 3 V lithium battery (supplied)
Battery life: 8 years for 10 activations a day
ZigBee radio technology
Frequency: 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
 5.4 Climate characteristics
Usage temperature: +5°C to +45°C
Storage temperature: 0°C to +45°C
Cat. Nos: 7 418 08/38/68
Up when pressed at the top:
- short press raises to the top
- long press raises until released
- OSS mode: long press tilts slats
LED indicator:
- useful during installation
- when pressed, burst flashes red if the battery
power is low
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
- OSS mode: long press tilts slats
RESET button used to return to factory settings
IP 40 for assembled product
Created: 29/11/2018
1/2
