- Page 1 100 Mbps PoE Switch Quick Start Guide UD18592B...
-
Page 2: Legal Information
MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF... - Page 3 PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
- Page 4 Regulatory Please take that changes or not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
-
Page 6: Applicable Models
Preface Applicable Models This manual is applicable to DS-3E1XXXP series switches. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, Danger will or could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data Caution... -
Page 7: Safety Instruction
Safety Instruction Danger • This is a class A product and may cause radio interference in which case the user may be required to take adequate measures. • Ensure that your devices powered via the PoE port have their shells protected and fire-proofed, because the switches are not compliant with the Limited Power Source (LPS) standard. - Page 8 • No naked flame sources, such as lighted candles, should be placed on the device. • The device shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the device. •...
-
Page 9: Product Introduction

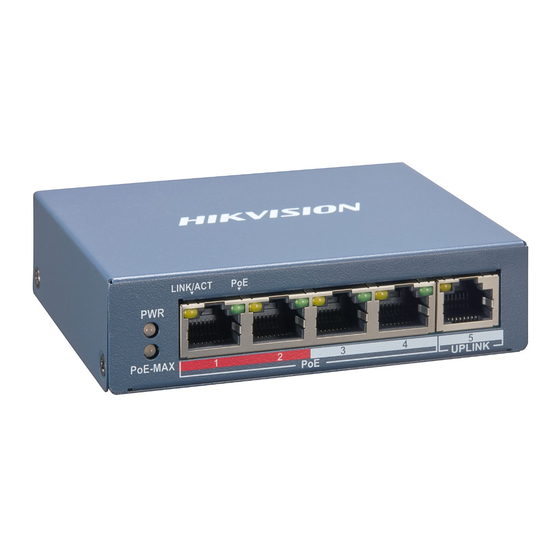

1 Introduction 1.1 Product Introduction DS-3E1XXXP series switches (hereinafter referred to as "the device") are layer 2 PoE switches, providing advanced PoE power supply technology on the basis of high-performance access. The switches support client management, network topology management, link aggregation, port management and so on. The switches are suitable for small-scale LAN device access. - Page 10 Rear Panel Figure 1-3 DS-3E1X05/09P Series Figure 1-4 DS-3E1318/26P Series Port/Indicator Description Indicator/Port Description • Solid /Flashing: The output power of the switch will reach the upper limit. The power supply may be abnormal if more devices are connected. PoE-MAX Indicator •...
-
Page 11: Wall-Mounted Installation
Used for connecting to the grounding cable to Grounding Terminal protect the switch from lightning. Use the attached power cord to connect the switch Power Supply to socket. 2 Installation Please select the appropriate installation method according to the actual needs. Before You Start •... -
Page 12: Connecting The Grounding Cable
Figure 2-2 Fix L-Shaped Brackets 3. Place your switch on the rack, fix it to the rack with self- prepared screws to stably install your switch. Figure 2-3 Fix to the Rack 3 Grounding 3.1 Connecting the Grounding Cable Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. - Page 13 2. Weld one end of the grounding cable to the angle steel or steel pipe and embalm the welding point via electroplating or coating. 3. Connect the other end of the grounding cable to the grounding terminal. Figure 3-2 Grounding with Angle Steel 3.2 Connecting RJ45 Port Use a network cable to connect the device to the RJ45 port of a peer device such as network camera, NVR, switch, etc.
-
Page 14: Powering On The Device
2. Hold the SFP optical module from one side, and smoothly plug it into the device along with the SFP port slot until the optical module and the device are closely attached. 3. After powering on the device, check the status of LINK/ACT indicator. -
Page 15: Adding Devices
3. Click Online Device to show the online device area at the bottom of the page. The searched online devices are displayed in the list. 4. Check the device status (shown on Security Level column) and select an inactive device. Figure 5-1 Online Inactive Device 5. -
Page 16: Get More Information
Port You can customize the port number. The port number of the device is obtained automatically in this adding mode. User Name By default, the user name is admin. Password Enter the device password. Caution The password strength of the device can be automatically checked.
