16/24-Port 100M Long-Range PoE Switch Quick Start Guide TABLE OF CONTENTS Chapter 1 Introduction ....................... 1 1.1 Overview ..........................1 1.2 Packing List ..........................1 1.3 Appearance ..........................2 1.3.1 Front Panel ........................2 1.3.2 Rear Panel ........................4 Chapter 2 Installation ......................... 5 2.1 Preventive and Cautionary Tips ....................
Page 3
INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
Page 4
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 5
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Applicable Models This manual is applicable to switches below: DS-3E0318P-E/M(B), DS-3E0326P-E/M(B). Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
PoE switch. DS-3E0318P-E/M(B) and DS-3E0326P-E/M(B) switches are reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switches are applicable for access or aggregation and upload of small-scale LAN devices.

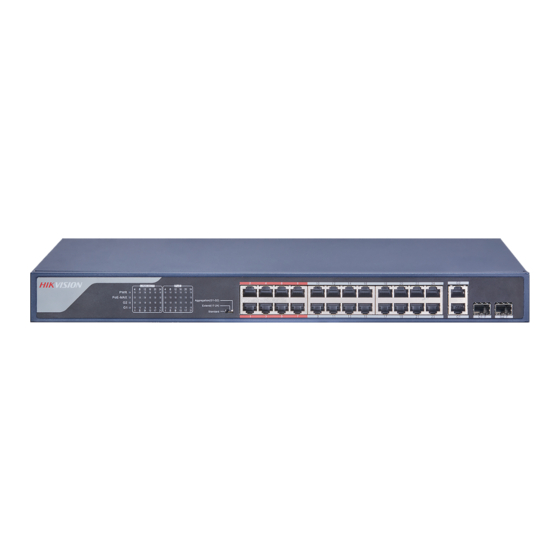

16/24-Port 100M Long-Range PoE Switch Quick Start Guide 1.3 Appearance 1.3.1 Front Panel Front panels of DS-3E0318P-E/M(B) and DS-3E0326P-E/M(B) are shown as below. Front Panel of DS-3E0318P-E/M(B) Figure 1-1 DS-3E0318P-E/M(B) Front Panel Front Panel of DS-3E0326P-E/M(B) Figure 1-2 DS-3E0326P-E/M(B) Front Panel Indicator Indicators are used to monitor the status of switches.
Page 8
Standard up to 100 m, and the speed rate of the port is 100 Mbps. Extend The 9 to 16 ports of DS-3E0318P-E/M(B) and the 17 to 24 DS-3E0318P-E/M(B): Extend (9-16) ports of DS-3E0326P-E/M(B) support network transmission of up to 250 m, and the speed rate of the port is 10 Mbps.
16/24-Port 100M Long-Range PoE Switch Quick Start Guide 1.3.2 Rear Panel Rear panel of DS-3E0318P-E/M(B) and DS-3E0326P-E/M(B) is shown as below. Rear Panel of DS-3E0318P-E/M(B) and DS-3E0326P-E/M(B) Figure 1-3 DS-3E0318P-E/M(B) and DS-3E0326P-E/M(B) Rear Panel Grounding Terminal The grounding terminal is used to connect to the ground cable to protect the switch from lightning.
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Chapter 2 Installation 2.1 Preventive and Cautionary Tips Before installation, put on anti-static gloves. During the installation, power off your switch. Use the attached power adapter or power cord to connect the switch to power supply. ...
Keep at least 1.5 cm vertical distance between each switch while installing it on a rack. 2.3 Installation DS-3E0318P-E/M(B) and DS-3E0326P-E/M(B) switches only support rack installation. Follow the steps below for rack installation. The following panel is the front panel of the switch. For details about the ports, see section Appearance.
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Figure 2-2 Fix Switch to Rack Do not place any heavy object on the switch in case of any incident. Make sure sound cooling and ventilation. 2.4 Grounding Purpose: Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety.
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Figure 2-3 Grounding with Grounding Bar Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning rod. 2.4.2 Without Grounding Bar If there is no grounding bar but earth is nearby and the grounding body is allowed to be buried, follow the steps below.
Page 14
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Figure 2-4 Grounding with Angle Steel If it is not proper to bury the grounding body, an AC-powered Ethernet switch can be grounded by using the PE (Protective Earth) wire of the AC power supply. The prerequisite is that the power cord of the switch should adopt 3-pin cable with protective earth wire, and the AC power supply protective earth wire has been well grounded on the side of distribution room or AC power supply transformer.
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Chapter 3 Physical Connection 3.1 Connecting RJ45 Port Use a network cable to connect your switch to the RJ45 port of an opposite end device. The RJ45 port can connect with network camera, IP camera, NVR, switch, etc. Figure 3-1 RJ45 Port Connection 3.2 Connecting 1000M Fiber Optical Port This section uses dual-fiber SFP optical module as an example.
16/24-Port 100M Long-Range PoE Switch Quick Start Guide Step 3 After powering on your switch, check the status of Link/Act indicator. If the indicator is lit, the link is connected. If the indicator is unlit, the link is disconnected. Check the line, and make sure opposite devices have been started.
