- Page 1 DS-3E0108P-E, DS-3E0109P-E/M, DS-3E0318P-E/M, DS-3E0326P-E/M Switch User Manual UD.6L0103D0392A01...
- Page 2 COPYRIGHT ©2017 Hangzhou Hikvision Digital Technology Co., Ltd. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means,...
- Page 3 Safety Instruction These instructions are intended to ensure that user can user the product correctly to avoid danger or property loss. The precaution measure is divided into “Warning” and “Caution” Warning: Serious injury or death may occur if any of the warning is neglected. Caution: Injury or equipment damage may occur if any of the caution is neglected.
- Page 4 Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. The figures in the manual are for reference only. This manual is applicable to the models listed in the following table. Model DS-3E0108P-E DS-3E0109P-E/M DS-3E0318P-E/M DS-3E0326P-E/M...
-
Page 5: Table Of Contents
Contents Chapter 1 Product Overview ............................1 1.1 Overview ................................1 1.2 Packing List ............................... 1 1.3 Appearance ................................ 2 Chapter 2 Device Installation ............................8 2.1 Installation Notes ............................... 8 2.2 Installation ................................. 9 2.3 Grounding ................................ 11 Chapter 3 Physical Connection ........................... 14 RJ45 Port Connection ............................ -
Page 6: Chapter 1 Product Overview

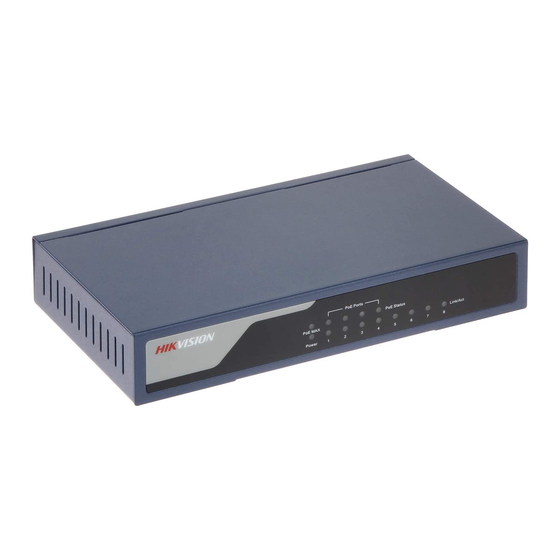

DS-3E0108P-E Hikvision unmanaged PoE switch, DS-3E0108P-E, provides 8 * 100 Mbps RJ45 ports, and ports 1 – 4 can provide power to IEEE 802.3af/IEEE 802.3at standard powered devices, such as access point, IP camera, IP phone and so on. The power output totals 58 W. -
Page 7: Appearance
√ User manual If any item is missing, or damaged, please keep the original package and contact the local reseller or distributor immediately. 1.3 Appearance Front Panel DS-3E0108P-E PoE LED 100 M LED LINK/ACT LED Power LED Downlink RJ45 Ports... - Page 8 *Available only The PoE power output reaches the maximum power, and some of Blinking power devices are not powered properly. DS-3E0108P-E The PoE power output does NOT reach the alarm threshold, and the powered device is powered properly. Solid on The port is connected to a powered device and is supplying power.
- Page 9 RJ45 Port DS-3E0108P-E provides 8 * 10/100 Mbps RJ45 ports, and ports 1 - 4 comply with IEEE 802.3af and IEEE 802.3at. DS-3E0109P-E/M provides 9 * 10/100 Mbps RJ45 ports. Ports 1 - 8 are downlink ports and comply with IEEE 802.3af and IEEE 802.3at.
-
Page 10: Front Panel
Unmanaged PoE Switch/User Manual 1000 Mbps uplink SFP port Front Panel 16 * 100 Mbps downlink RJ45 Ports G1 LED Link/Act LED 1000 Mbps uplink RJ45 port Network mode switch Power LED PoE - MAX LED SFP1 LED DS-3E0318P-E/M Network mode switch G1 LED Link/Act LED 24 * 100 Mbps downlink RJ45 Ports... - Page 11 Unmanaged PoE Switch/User Manual The PoE power output reaches the alarm threshold, and the powered Solid on device is powered properly. The PoE power output reaches the maximum power, and some of PoE Max Blinking power devices are not powered properly. The PoE power output does NOT reach the alarm threshold, and the powered device is powered properly.
- Page 12 Unmanaged PoE Switch/User Manual communicate with each other. When several IP cameras are connected to the switch, this mode is recommended. To ensure the fluency of the monitoring pictures, connect the G1 port and SFP1 port to the uplink device connected to a monitoring computer. Standard Default mode.
-
Page 13: Chapter 2 Device Installation
Unmanaged PoE Switch/User Manual Chapter 2 Device Installation 2.1 Installation Notes Follow the notes below to avoid device damages or personal injuries caused by misoperation. Safety Alert Wear ESD gloves before installation, and do not power on the switch before finishing installation. ... -
Page 14: Installation
Unmanaged PoE Switch/User Manual Connect the cables to the switch properly to avoid generating internal lightning induction. If outdoor cabling is required, it is advisable to deploy a signal lightning arrester. Mounting Requirements Follow the instructions below. The desktop is stable and sturdy enough. -
Page 15: Wall Mounting
Step 1: Create two horizontally aligned holes about 6 mm in diameter with percussion drill. The distance between the two holes should be 150 mm for DS-3E0108P-E and 113.5mm for DS-3E0109P-E/M. Step 2: Knock the expansion bolts into the holes with the rubber hammer until the expansion bolts are flush with the wall. -
Page 16: Grounding
Select the proper method to ground your switch according to the installation environment. Note DS-3E0108P-E has no grounding terminal. So if your switch is DS-3E0108P-E, skip this part. With the grounding bar If a grounding bar is available at the installation site, use either of the following installation methods to ground the switch. - Page 17 Unmanaged PoE Switch/User Manual Take DS-3E0326P-E/M as an example Note Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning rod. Without the grounding bar If there is no grounding bar but the grounding body can be buried, follow steps below: Step 1: Bury an angle steel or steel pipe (Length ≥...
- Page 18 Unmanaged PoE Switch/User Manual If both ground bar and the environment for burying the grounding body are not available, use the protecting earth (PE) wire. Make sure that the switch adopts 3-core cable with the PE wire, and the PE wire of the AC power supply has been well grounded in the power distribution room or at the side of the AC power supply transformer.
-
Page 19: Chapter 3 Physical Connection
Connect the RJ45 ports of the switch to the RJ45 ports of peer devices. The ports marked with “Uplink” and “G1” are the uplink ports, and the other ports are downlink ports. All ports of DS-3E0108P-E are ordinary RJ45 ports, not being divided into uplink and downlink ports. -
Page 20: Checking
Unmanaged PoE Switch/User Manual Take DS-3E0326P-E/M as an example Step 2: Connect the Rx module to Rx port and Tx module to Tx port. Take DS-3E0326P-E/M as an example Checking Before powering on the switch, check the cabling as follows. ... -
Page 21: Power Supply
Unmanaged PoE Switch/User Manual Take DS-3E0326P-E/M as an example/Lightning protector connection ① Ethernet cable ②Grounding cable ③Grounding terminal ④ Outdoor cable ⑤ Lightning protector Power Supply Use the included power cord to power the switch. -
Page 22: Appendix Technical Specifications
Unmanaged PoE Switch/User Manual Appendix Technical Specifications... - Page 23 Unmanaged PoE Switch/User Manual DS-3E0108P- DS-3E0109P- DS-3E0318P- DS-3E0326P- Model 10/100 Mbps RJ45 10/100/1000 Mbps RJ45 1000 Mbps SFP 1 independent Port 1 > Port High-priority Port 2 > …> Port Port 1 - 2 Port 1 - 8 Port Lightning-proof 6 kV Ranking EXTEND...
- Page 24 Unmanaged PoE Switch/User Manual Maximum Total 58 W 135 W 225 W Output 51 V DC，1.25 A 100~240 V AC，50/60 Hz Power Input Operating Temperature: 0 ° C ~ 40 ° C Operating Environment Operating Humidity: 10% - 90% RH non-condensing Environment Storage Temperature: -40 °...
- Page 25 Unmanaged PoE Switch/User Manual CE Mark Warning This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
