- Page 1 16/24-Port Gigabit PoE Switch Quick Start Guide 16/24-Port Gigabit PoE Switch Quick Start Guide...
- Page 2 INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS.
- Page 3 16/24-Port Gigabit PoE Switch Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 4: Applicable Models
16/24-Port Gigabit PoE Switch Quick Start Guide Applicable Models This manual is applicable to switches below: DS-3E0518P and DS-3E0526P series gigabit PoE switch. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. -
Page 5: Chapter 1 Introduction

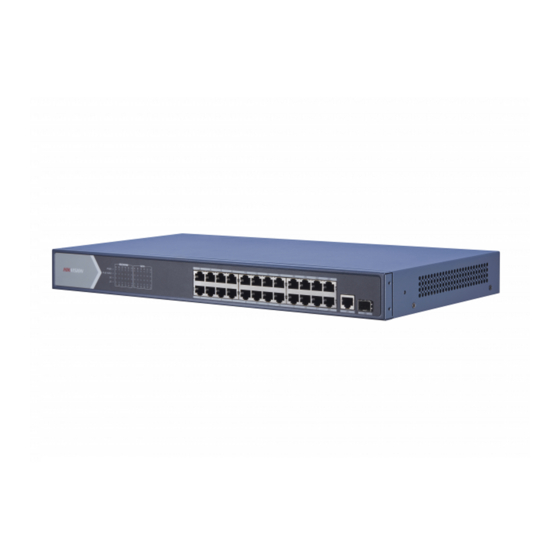

Chapter 1 Introduction 1.1 Overview DS-3E0518P and DS-3E0526P series switches are layer 2 gigabit PoE unmanaged switches, providing 16 or 24 gigabit PoE ports, one 10/100/1000M RJ45 port, and one 10/100/1000M SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. -
Page 6: Front Panel
16/24-Port Gigabit PoE Switch Quick Start Guide 1.3 Appearance 1.3.1 Front Panel Front panels of DS-3E0518P and DS-3E0526P are shown as below. Front Panel of DS-3E0518P Figure 1-1 DS-3E0518P Front Panel Front Panel of DS-3E0526P Figure 1-2 DS-3E0526P Front Panel Indicator Indicators are used to monitor the status of switches. - Page 7 16/24-Port Gigabit PoE Switch Quick Start Guide Indicator Unlit No power supply connected or power supply is abnormal. LINK/ACT Solid on RJ45 port is connected. Indicator Flashing RJ45 port is transmitting data. Unlit RJ45 port is disconnected or connection is abnormal. PoE Indicator Solid on The switch provides power supply to PD normally.
-
Page 8: Grounding Terminal
16/24-Port Gigabit PoE Switch Quick Start Guide Grounding Terminal The grounding terminal is used to connect to the ground cable to protect the switch from lightning. For details about grounding, see section Grounding. Power Interface Connect power port of the switch with power socket by power cord, and use 100 to 240 VAC to provide power to the switch. -
Page 9: Chapter 2 Installation
16/24-Port Gigabit PoE Switch Quick Start Guide Chapter 2 Installation 2.1 Preventive and Cautionary Tips Before installation, put on anti-static gloves. During the installation, power off your switch. Use the attached power adapter or power cord to connect the switch to power supply. ... -
Page 10: Lightning Protection
Keep at least 1.5 cm vertical distance between each switch while installing it on a rack. 2.3 Installation DS-3E0518P and DS-3E0526P series switches only support rack installation. Follow the steps below for rack installation. The following panel is the front panel of the switch. For details about the ports, see section Appearance. -
Page 11: With Grounding Bar
16/24-Port Gigabit PoE Switch Quick Start Guide Figure 2-2 Fix Switch to Rack Do not place any heavy object on the switch in case of any incident. Make sure sound cooling and ventilation. 2.4 Grounding Purpose: Grounding is used to quickly release overvoltage and overcurrent induced by lightening for switch, and to protect personal safety. -
Page 12: Without Grounding Bar
16/24-Port Gigabit PoE Switch Quick Start Guide Figure 2-3 Grounding with Grounding Bar Connect the grounding cable to the grounding system in the equipment room. Do not connect it to a fire main or lightning rod. 2.4.2 Without Grounding Bar If there is no grounding bar but earth is nearby and the grounding body is allowed to be buried, follow the steps below. - Page 13 16/24-Port Gigabit PoE Switch Quick Start Guide Figure 2-4 Grounding with Angle Steel If it is not proper to bury the grounding body, an AC-powered Ethernet switch can be grounded by using the PE (Protective Earth) wire of the AC power supply. The prerequisite is that the power cord of the switch should adopt 3-pin cable with protective earth wire, and the AC power supply protective earth wire has been well grounded on the side of distribution room or AC power supply transformer.
-
Page 14: Chapter 3 Physical Connection
16/24-Port Gigabit PoE Switch Quick Start Guide Chapter 3 Physical Connection 3.1 Connecting PoE Port Use a network cable to connect your switch to the PoE ports of an opposite end device. The PoE ports can connect with network camera, IP camera, NVR, switch, etc. Figure 3-1 PoE Port Connection 3.2 Connecting Gigabit SFP Fiber Optical Port This section uses dual-fiber SFP optical module as an example. -
Page 15: Checking The Cabling
16/24-Port Gigabit PoE Switch Quick Start Guide Step 3 After powering on your switch, check the status of Link/Act indicator. If the indicator is lit, the link is connected. If the indicator is unlit, the link is disconnected. Check the line, and make sure opposite devices have been started. - Page 16 16/24-Port Gigabit PoE Switch Quick Start Guide UD13061B...
