- Page 1 GB0410 01.22 LØV-R Extract air terminal device • Broad adjustment range • Easy commissioning TROX Auranor Norge AS Telephone +47 61 31 35 00 Auranorvegen 6 E-mail: firmapost@auranor.no NO-2770 Jaren www.trox.no...

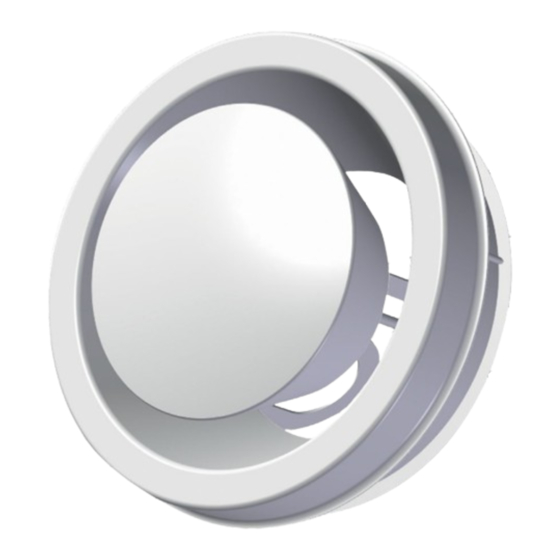

- Page 2 DIMENSIONS AND WEIGHT, DSO APPLICATION DSO is an extract air terminal device for ceiling or wall mounting. Dim. weight [kg] DESIGN DSO features an adjustable centre cone for air flow rate commissioning. Supplied with mounting frame, DKT, for circular duct. Table 2 MATERIALS AND SURFACE COATING DSO is made of steel, and comes in a RAL 9003 - gloss 30 finish.
- Page 3 Example: ACOUSTIC DATA Office premises require an indoor air extraction of 25 l/s, and for this The diagrams provide a summary of the A-weighted sound power level purpose a DSO Ø100 extract air terminal device is used. from diffuser, L .
- Page 4 Diagram 3, DSO Ø160 Diagram 4, DSO Ø200 Static sound attenuation incl. end reflection for DSO Correction factor [KO], DSO Attenuation [dB] KO [dB] Dim. Dim. Table 4 Table 5...
- Page 5 INSTALLATION COMMISSIONING Separate mounting frame (DKT) is attached to the duct by using The air flow rate is adjusted by turning the centre cone. It is fixed in blind rivets or self-drilling screws. The valve is then screwed into the place by tightening the lock nut at the rear of the centre bolt.
