Emerson Fisher FIELDVUE DVC6005 Series Instruction Manual Supplement page 7

Instruction Manual Supplement
D104211X012
Ex ia IIB
Ex ia IIC
LOOP TERMINALS
LOOP TERMINALS
Ui = 27.1 VDC Ui = 30 VDC
Ii = 130 mA Ii = 130 mA
Pi = 880 mW Pi = 1.0 W
Ci = 15 nF Ci = 15 nF
Li = 0.30 mH Li = 0.30 mH
AUX TERMINALS
AUX TERMINALS
Uo = 27.1 VDC
Uo = 30 VDC
Io = 130 mA
Io = 130 mA
Po = 880 mW
Po = 1.0 W
Co = 75 nF
Co = 546 nF
Lo = 2.73 mH
Lo = 16.93 mH
Ex ia IIC or Ex ia IIB
OUTPUT TERMINALS
Ui = 28 VDC
Ii = 100 mA
Pi = 1.0 W
Ci = 15 nF
Li = 0.20 mH

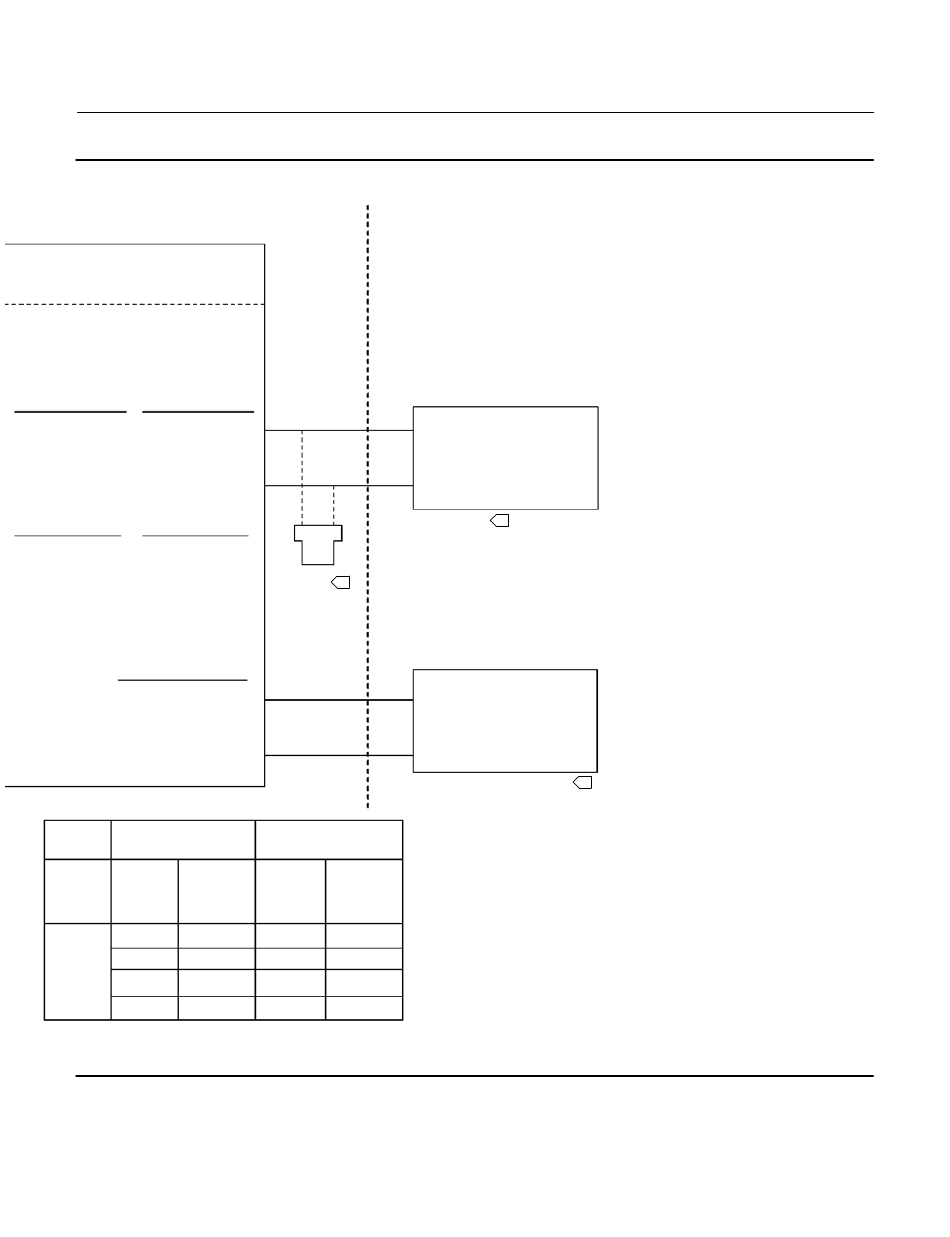

ZONE 0, Ex ia IIC
TYPE T CODE T AMB
---
DVC6015
T4 ≤ 125_C
DVC6025
DVC6035
T5 ≤ 95_C
T6 ≤ 80_C
HAZARDOUS LOCATION NON‐HAZARDOUS LOCATION
NOTE 5 1
ZONE 20, Ex ia IIIC
MAX
T AMB
SURFACE
TEMP
--- T146_C ≤ 125_C
T135_C ≤ 114_C
T100_C ≤ 79_C
T85_C ≤ 64_C
ATEX APPROVED BARRIER
NOTE 1, 3, 4 1
ATEX APPROVED BARRIER
NOTE 1, 3, 4 1
POWER MAY BE APPLIED TO EITHER THE LOOP
TERMINALS OR OUTPUT TERMINALS OR TO
BOTH SETS OF TERMINALS AT THE SAME TIME
UNITS WITHOUT I/O PACKAGE WILL NOT HAVE
"OUTPUT TERMINALS" OR "AUX TERMINALS"
AVAILABLE FOR CONNECTION
DVC6005 Digital Valve Controllers
August 2017
7
